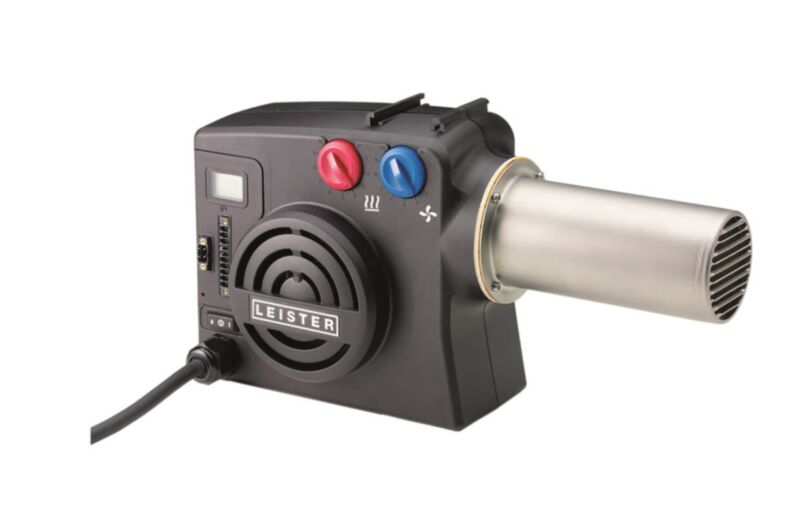

Leister HOTWIND SYSTEM Hot Air Blower 230v

SKU:
142.645/L0 SH

The HOTWIND SYSTEM 230v 3680W is the most powerful hot air blower in the 230v SYSTEM range. It comes with automatic cooling, protection against element and device overheating, as well as a brushless blower motor. Its dual control systems allow for stepless analogue control for temperature (up to 650°C) and airflow (200-900l/min) or remote digital control via a system interface making this a very versatile hot air blower.

Estimated Delivery: Next Working Day (order before 3pm)
£1,333.86 £1,111.55

Description

Leister HOTWIND SYSTEM Hot Air Blower 230v

The HOTWIND SYSTEM has a brushless motor which ensures that this hot air blower has a long service life. The maximum air volume can now be set infinitely between 200 and 900 l/min via the potentiometer. The wide range of applications makes the new HOTWIND SYSTEM truly impressive: be it as a unit with integrated control or as a unit for integration in a closed-loop control circuit using a system interface.

In terms of temperature control the Hotwind System has stepless analogue control for temperatures up to 650°C. As mentioned ealier, unlike the PREMIUM models, it is also capable of being electronically controlled via a digital remote system interface for temperature, power set point and air volume.

This, combined with an integrated temperature probe allows for a closed loop control system delivering precise, measurable and recordable results time after time. Additionally an alarm output enables close management and control should things go wrong.

The HOTWIND SYSTEM models also include a useful digital display providing an accurate reading for outlet temperature, essential for jobs that require precise temperature setting and control.

Overall the range of controls and functionality makes this a very versatile hot air blower for heat shrinking applications.

Key Features:

  • Heat output (up to 650°C) and air volume (200 to 900 l/min) steplessly adjustable with potentiometer or digitally controlled via a remote control interface (see below)
  • Integrated power electronics
  • Protection against heating element or device overheating
  • Brushless blower motor
  • Alarm output
  • Integrated temperature probe
  • Integrated temperature control
  • Remote control interface for temperature or power set point
  • Remote control interface for air volume adjustment
  • Display for showing the setpoint and actual values (°C or °F)

Specification

Technical Data: HOTWIND SYSTEM 230v 3680W for Heat Shrinking Applications 142.645/L0 SH

  • Voltage: 230V
  • Power: 3.7kW
  • Max. air outlet temperature: 650°C
  • Air flow (20°C): 200-900 l/min
  • Static pressure kPa: 0.8-1.0
  • Weight kg: 2.2
  • Frequency: 50/60 Hz
  • Noise emission level: <70 dB(A)
  • Comes with or without cable
