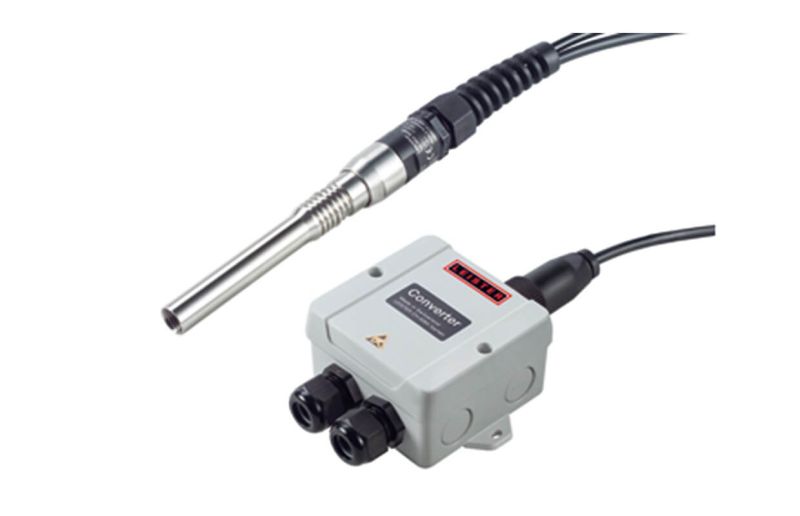

Leister LE MINI SENSOR (120v/230v) Process Heater
The world’s smallest air heaters. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces. LE MINI SENSOR comes with an integrated temperature probe and operates with compressed air at a pressure of 200 kPa, available in 120v & 230v with power options of 400W or 800W (230v only).
Description
LE MINI SENSOR Industrial Process Hot Air Heaters
The world’s smallest air heaters with an integrated temperature probe. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces. LE MINI SENSOR operates with compressed air at a pressure of 200 kPa.
Model versions of the LE MINI SENSOR are available in 120v and 230v options, with the 230v versions available in 400W or 800W power outputs.
The SENSOR KIT add-on box offers a ready-to-use solution with its integrated power electronics and temperature regulator. Power consumption: 0.4 – 0.8 kW.
Max. temperature: 750 °C. Pressure: 2 bar.
Compatible Blowers: Compressed Air (200kPa Max Pressure)
Specification
Technical Data: LE MINI SENSOR Industrial Process Hot Air Heaters
- Temperature regulator integrated into the connection box (only with SENSOR KIT)
- Integrated temperature probe
- Thermoswitch for device protection
- Heating element protection
- Analogue output (passive) 4 – 20 mA
- Pressure reduction valve (only with SENSOR KIT)
- Max. air outlet temperature: 600°C @ 400 W, 750°C @ 800 W
- Min. air flow l/min: 10 @ 400 W, 10 @ 800 W
- Max. air inlet temperature: 60°C
- Max. ambient temperature: 60°C
- Max. supply air pressure: 200 kPa
- Weight LE MINI SENSOR: 400W 0.12 kg, 800W 0.15 kg
