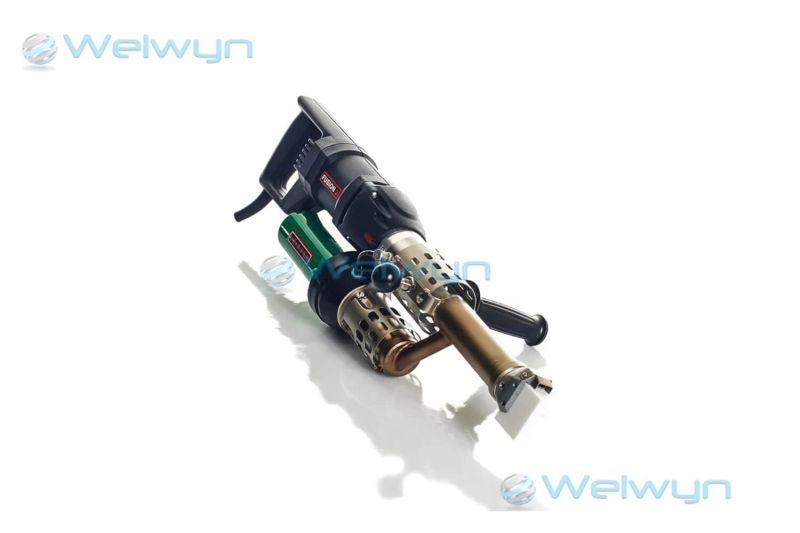

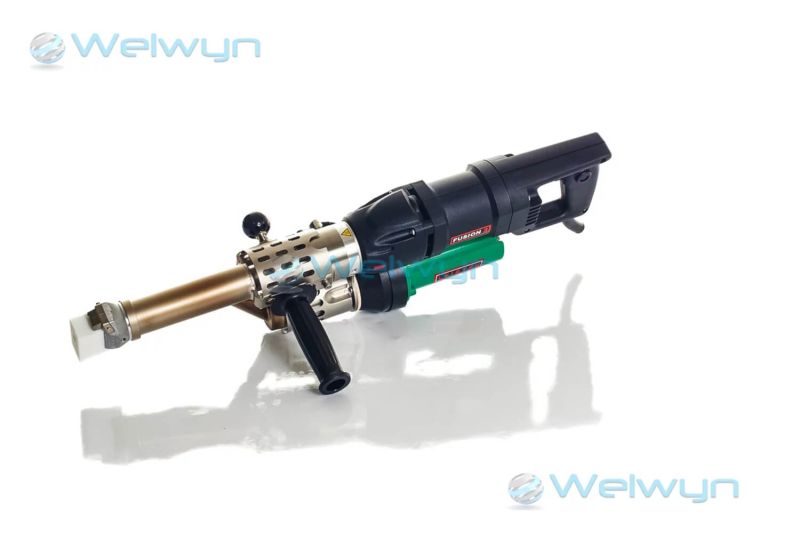

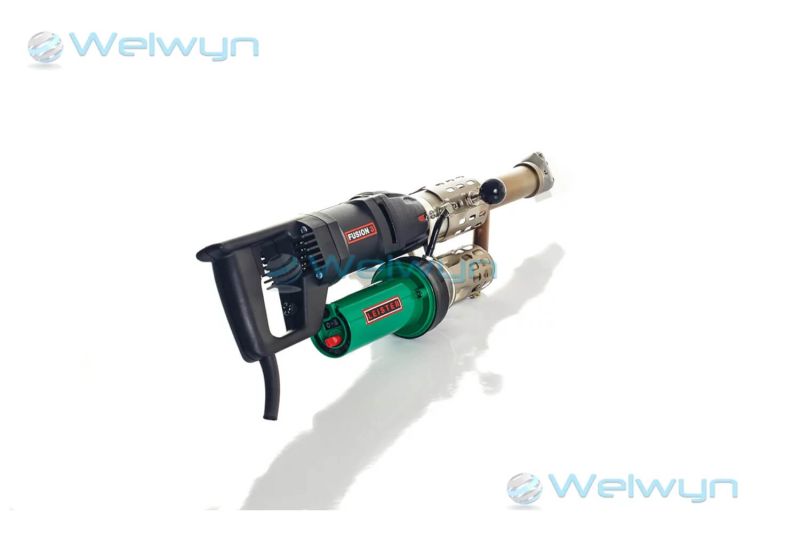

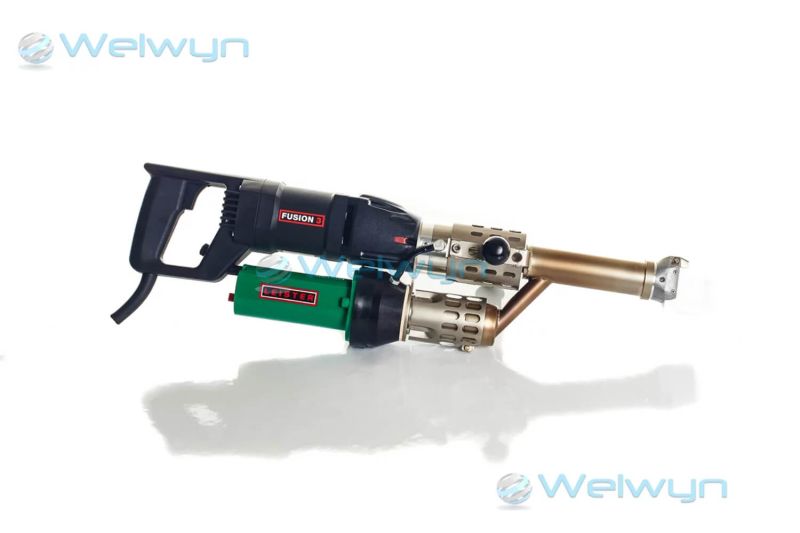

Leister FUSION 3 230V 3-4mm/4-5mm for Plastic Welding & Fabrication

SKU:
FUSION3 PW

The Fusion 3 welding extruder is ideal for working on plastic fabrications where materials are on the ground, saving the operator having to bend down to weld.

Estimated Delivery: Next Working Day (order before 3pm)

Description

The Fusion 3 for Plastic Welding is Leister's 1.8-3.6kg/h 'Plug-in & Weld' Extrusion Gun

The Fusion 3 3-4mm/4-5mm plastic extruder is ideal for working on plastic fabrications where materials are on the ground, saving the operator having to bend down to weld. It's 'no nonsense' plug-in and weld capability means you will get the job done at speeds of up to 3.6kg/h.

Key Features

  • High-quality welding performance
  • Compact and handy
  • Welds PE / PP
  • Welding Rod Capacity 3-4mm or 4-5mm
  • Motor start-up protection prevents cold start
  • Simple operation
  • Dual-sided twist-free wire intake
  • 360º rotating welding shoe
  • No fuss Plug-in & Weld functionality
  • Easier on the operator's back!
  • Power 3.5kW
  • Voltage 230V
  • Weight 7.2 kg
  • Wide range of welding shoes available

Specification

Easy to handle with a maximum output rate of 3.6 kg/h. Slim and long design with a maximum output rate of 3.5 kg/h Robust design. Stepless adjustment of preheating temperature and output quantity. Output regulation during welding possible. Motor starting protection protects the device against cold-starts. 360° rotatable welding shoe, handle can be mounted in two positions (L or R). Twist-free rod feed

Technical data: FUSION 3 for Plastic Welding and Fabrication

  • Voltage V:  230
  • Power W: 3500
  • Material: PE / PP
  • Welding rod: 3-4 or 4-5 mm (Dia)
  • Output PE kg/h (3-4mm Dia version): 2.0 - 2.5 (3mm) / 2.7 - 3.6 (4mm)
  • Output PP kg/h (3-4mm Dia version): 1.8 - 2.3 (3mm) / 2.5 - 3.4 (4mm)
  • Size (L × W × H) mm: 670 × 90 × 180
  • Weight: 7.2 kg

Included with purchase: FUSION 3 230V 3-4mm, user manual, blank welding shoe, storage case
