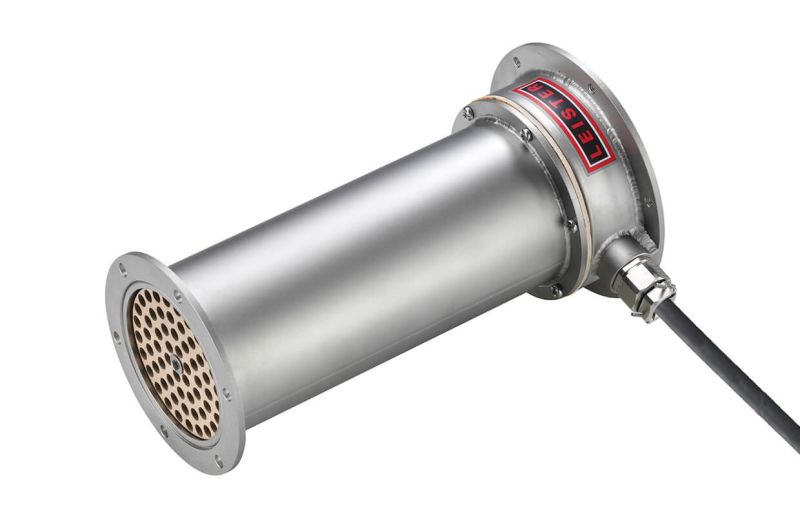

Leister LE 10000 DF HT Process Heater 400v 15kW 116.056
High temperature double flange LE 10000 DF HT model air heater, capable of a maximum air outlet temperature of 900°C and maximum air inlet tempetarue of 160°C. Power output of 15kW and a minimum air flow of 800 Nl/min.
Description
Leister LE 10000 DF HT Industrial Process Double Flange High Temperature Air Heater
The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Standard high temperature air heaters like the LE 10000 DF HT are capable of air inlet temperatures of 160°C, while dedicated recirculation high temperature air heaters can accept air inlet temperature as high as 350°C.
Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.
The LE 10000 DF HT can achieve air outlet temperatures of 900°C a power output of 15 kW at an minimum air flow of 800 Nl/min.
Optional power controller: Leister DSE Three Phase Controller
Optional temperature regulation: Leister DSE Three Phase Controller and Leister KSR Controller KSR DIGITAL temperature regulator Installation info: [LINK]
Specification
Technical Data: Leister LE 10000 DF HT Industrial Process Double Flange High Temperature Air Heater 116.056
The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Standard high temperature air heaters like the LE 10000 DF HT are capable of air inlet temperatures of 160°C, while dedicated recirculation high temperature air heaters can accept air inlet temperature as high as 350°C.
Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.
On the inlet side, the device can easily tolerate temperatures up to 160°C. Both the LE 10000 DF HT and LE 10000 DF-R HT models can achieve air outlet temperatures of 900°C a power output of 15 kW at an minimum air flow of 800 Nl/min. Optional power controller: Leister DSE Three Phase Controller Optional temperature regulation: Leister DSE Three Phase Controller and Leister KSR Controller KSR DIGITAL temperature regulator Installation info: [LINK]
- Easy integration into existing air systems
- Suitable for recycling air
- Simple & safe fixture options
- No integrated power electronics
- Max. air outlet temp: 900°C
- Min. air flow (20°C): 800 Nl/min
- Max. air inlet temp: 160°C
- Max. ambient temp: 100°C
- Weight: 4.0kg
Optional power controller: DSE three-phase controller
Optional temperature regulation: DSE three-phase controller and KSR DIGITAL temperature regulator
LE 10000 DF HT Installation Dimensions:-
