Leister LHS 15 CLASSIC (120v/230v) Process Heaters
The LHS 15 CLASSIC is easy to integrate (mounted from above), with overheat detection with alarm output for the heating element and heater. Available in 120V and 230V.
Description

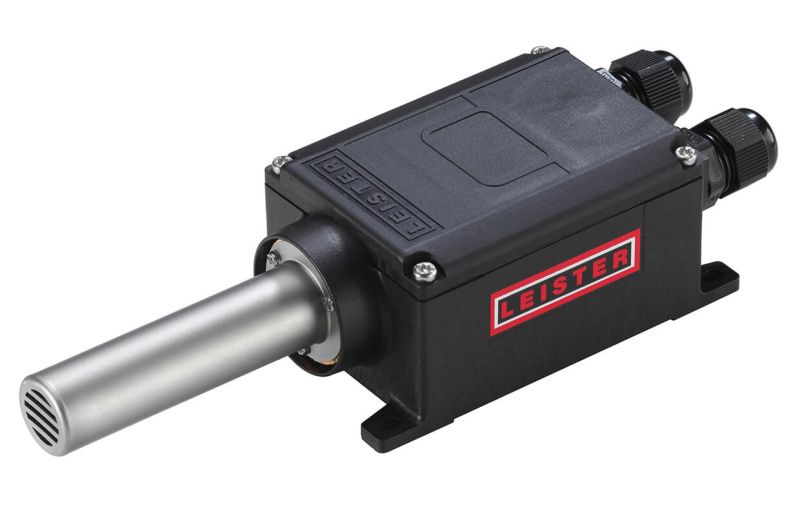

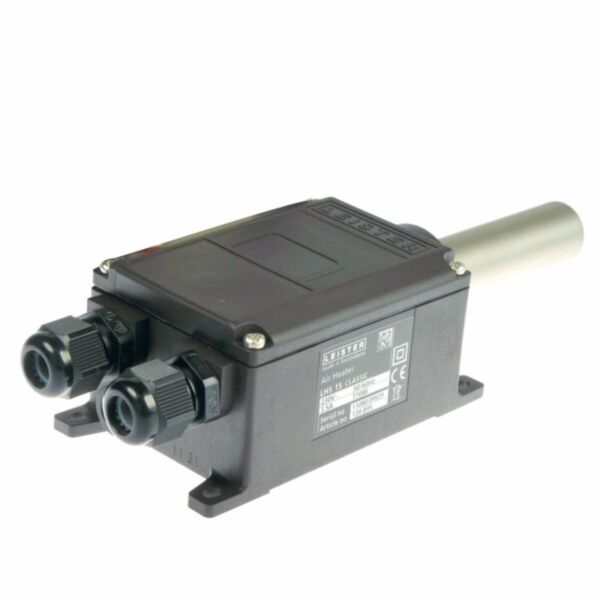

LHS 15 CLASSIC Industrial Process Air Heater
This advanced air heater is distinguished by its extremely small dimension – especially the lean design at only 67 mm width – as well as its long service life. It provides hot-air up to 650ºC and includes a long-life heating element, reliable protection systems and standard interfaces. This makes it perfect for applications in the Semiconductor, Electronics, Automotive and other industries.
Key Features: LHS 15 CLASSIC
- Easy to integrate (mounted from above)
- Overheat detection with alarm output for the heating element
- Tool overheat detection with alarm output
- Heating Power: not adjustable
- Power Range: 550 W (120 V) to 770 W (230 V)
- Available in 120v or 230v
Compatible Blowers: Leister ROBUST Industrial Process Blower
Specification
LHS 15 CLASSIC Industrial Process Air Heater
- Power consumption: 0.55 to 0.8 kW (120V and 230V respectively)
- Heating power: not adjustable
- Detection of heating element and device overheating: Y with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 0.48 kg
- Min. air flow: (see graph)
- Compatible Blowers: Leister ROBUST Industrial Process Blower
LHS 15 Temperature Airflow Characteristics:
LHS 15 Installation Dimensions:
