Leister LHS 15 PREMIUM (120v/230v) Process Heaters
The LHS 15 PREMIUM is easy to integrate (mounted from above), and comes with steplessly adjustable heating power and infinitely adjustable heating capacity via potentiometer, plus protection against heating element and device overheating with alarm output. Available in 120V & 230V.
Description

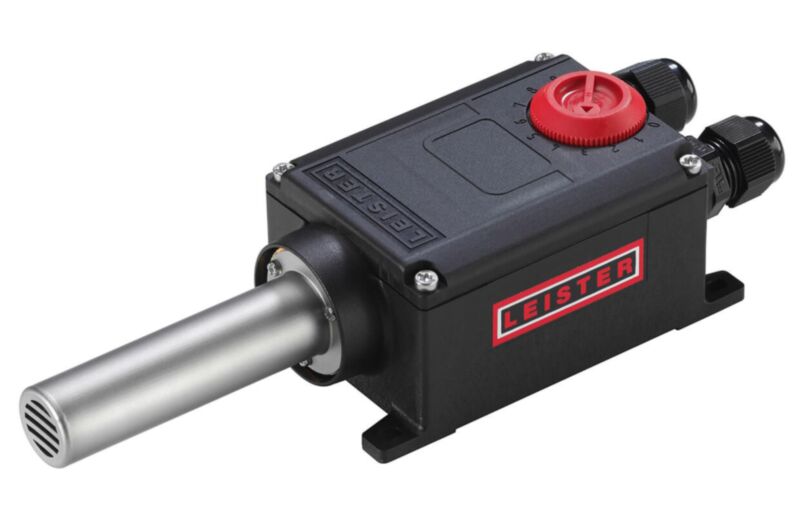

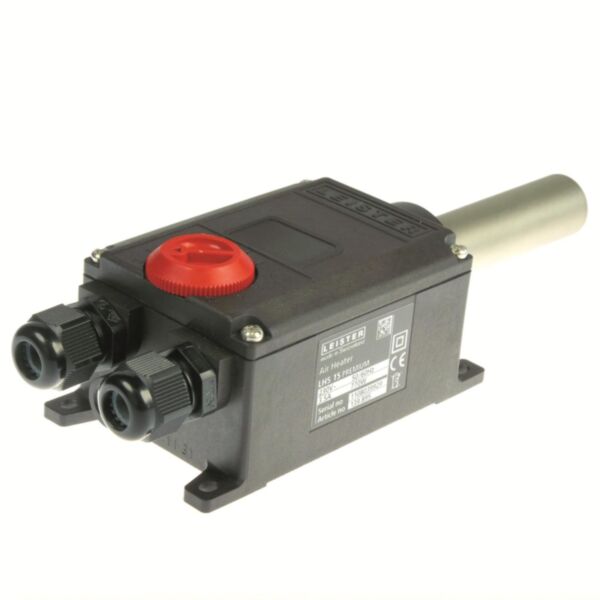

LHS 15 PREMIUM Industrial Process Air Heater
This advanced air heater is distinguished by its extremely small dimension – especially the lean design at only 67 mm width – as well as its long service life. It provides hot-air up to 650ºC and includes a long-life heating element, reliable protection systems and standard interfaces.This makes it perfect for applications in the Semiconductor, Electronics, Automotive and other industries.
Key Features: LHS 15 PREMIUM
- Easy to integrate (mounted from above)
- Overheat protection with alarm output for the heating element
- Tool overheat protection with alarm output
- Infinitely adjustable heating capacity via potentiometer
- Steplessly adjustable heating power with potentiometer
- Protection against heating element and device overheating with alarm output
- Power Range: 550 W (120 V) to770 W (230 V)
- Available in 120V & 230V
Compatible Blowers: Leister ROBUST Industrial Process Blower
Specification
Technical Data: LHS 15 PREMIUM Industrial Process Air Heater
- Power consumption: 0.55 to 0.77 kW (120V and 230V respectively)
- Heating power steplessly adjustable with potentiometer
- Protection against heating element and device overheating with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 0.48 kg
- Min. air flow: (see graph)
- Compatible Blowers: Leister ROBUST Industrial Process Blower
LHS 15 Temperature Airflow Characteristics:
LHS 15 Installation Dimensions:
