Leister LHS 21S / 21L PREMIUM (120v/230v) Process Heaters
Designed for professional integration into machine systems, the new LHS 21 PREMIUM series comes with overheat protection for both tool and element, plus infinitely adjustable heating capacity (via potentiometer).
Description

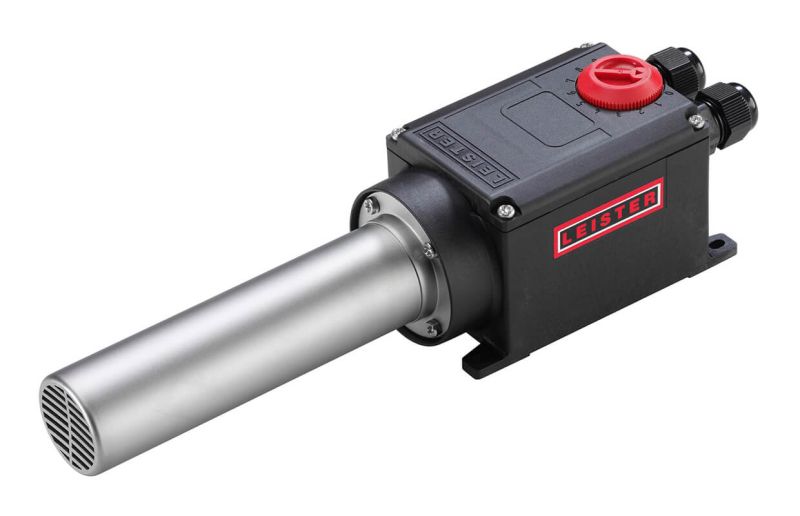

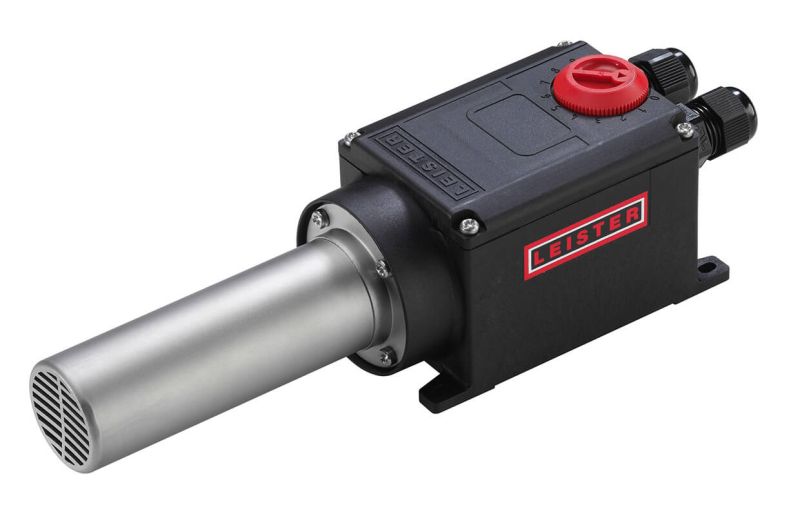

LHS 21S / 21L PREMIUM 120v/230v Industrial Process Air Heater
This advanced air heater is distinguished by its extremely small dimension – especially the lean design at only 67 mm width – as well as its long service life. Designed for professional integration into machine systems, the new LHS series enables any specific application.
Sterilizing, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology. Available in both short (LHS21S) and long (LHS21L) options
Key Features: LHS 21S / 21L PREMIUM
- Easy to integrate (mounted from above)
- Overheat protection with alarm output for the heating element
- Tool overheat protection with alarm output
- Infinitely adjustable heating capacity via potentiometer
- Steplessly adjustable Heating Power with potentiometer
- Protection against heating element and device overheating with alarm output
- Power Range: 1.0 to 3.3 kW
Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower
Specification
Technical Data LHS 21S / 21L PREMIUM 120v/230v Industrial Process Air Heater:
- Power consumption: 1.0 to 3.3 kW
- Heating power: steplessly adjustable with potentiometer
- Protection against heating element and device overheating: Y with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 0.55 kg (short), 0.65 kg (long)
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower
LHS 21S / 21L Temperature Air Flow Characteristics:
LHS21 Installation Dimensions:
