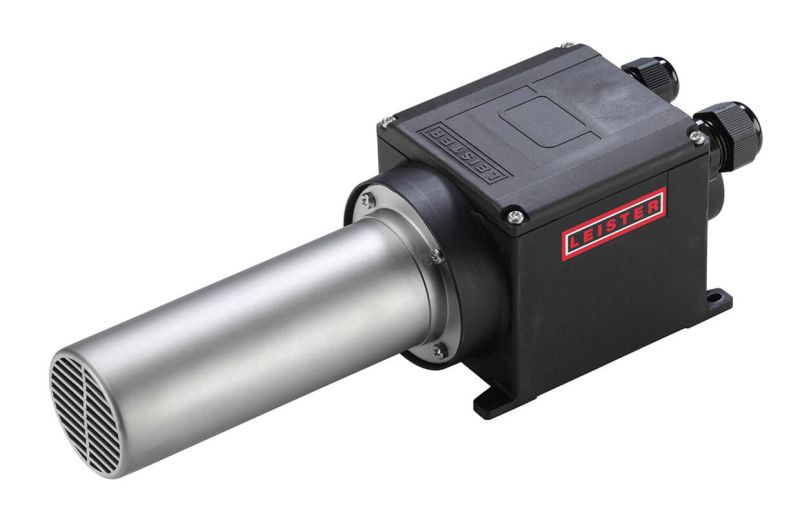

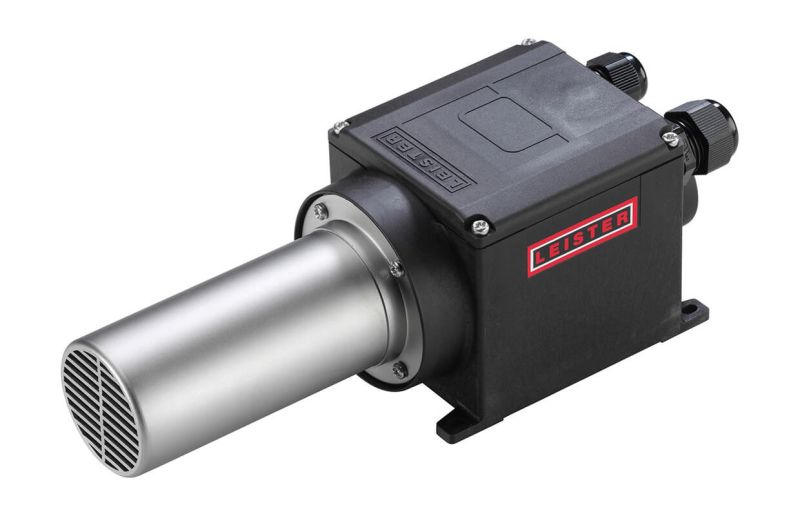

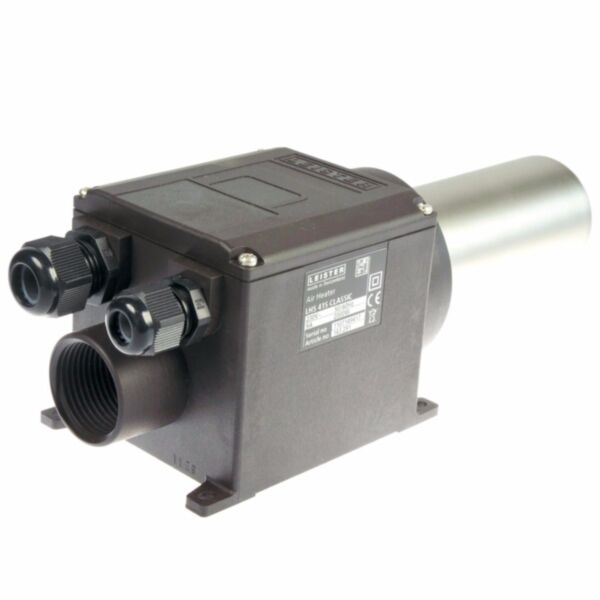

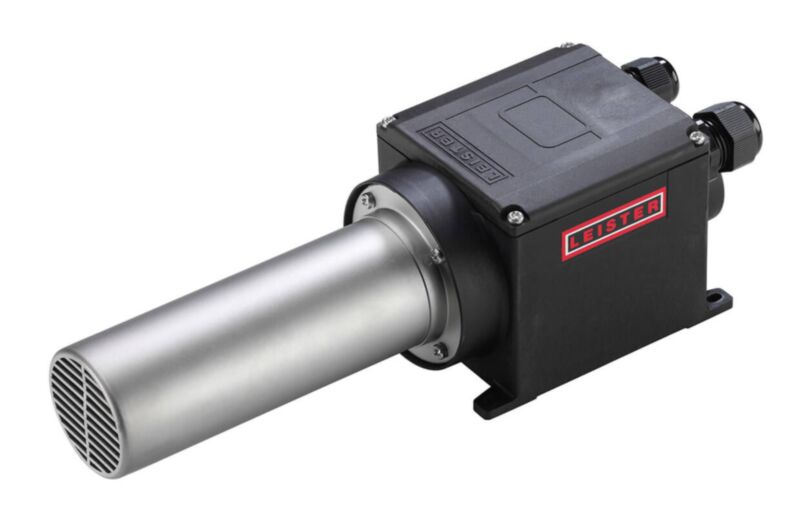

Leister LHS 41S / 41L CLASSIC (120v/230v/400v) Process Heaters
The LHS 41 CLASSIC air heaters feature easy to integrate (mounted from above), and come with overheat detection with alarm output for the heating element.
Description
LHS 41S / 41L CLASSIC Industrial Process Air Heater
The medium size LHS 41 series air heaters cover an extremely wide application range. The small footprint enables easy integration into machines. The heater tube diameter of 50 mm allows passing sufficient air flow, also for high performance applications. Compatible with the existing blower and nozzle range. Available in both short (LHS41S) and long (LHS41L) shroud options.
Key Features: LHS 41S / 41L CLASSIC
- Easy to integrate (mounted from above)
- Overheat detection with alarm output for the heating element
- Tool overheat detection with alarm output
- Heating Power: not adjustable
- Power Range: 2 kW to 5.5 kW
- Available in 120v, 230v and 400v
Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
Specification
Technical Data: LHS 41S / 41L CLASSIC Industrial Process Air Heater
- Power consumption: 2 kW to 5.5 kW
- Heating power: not adjustable
- Detection of heating element and device overheating with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 0.85 kg (short), 0.95 kg (long)
- Min. air flow: (see graph)
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
LHS 41S / 41L Temperature Air Flow Characteristics:-
LHS41 Installation Dimensions:-
