Leister LHS 41S / 41L SYSTEM (120v/230v/400v) Process Heaters
The new LHS 41 SYSTEM series incorporates stepless adjustment of both heating power and temperature as well as comprehesive remote control options for external temperature controllers.
Description

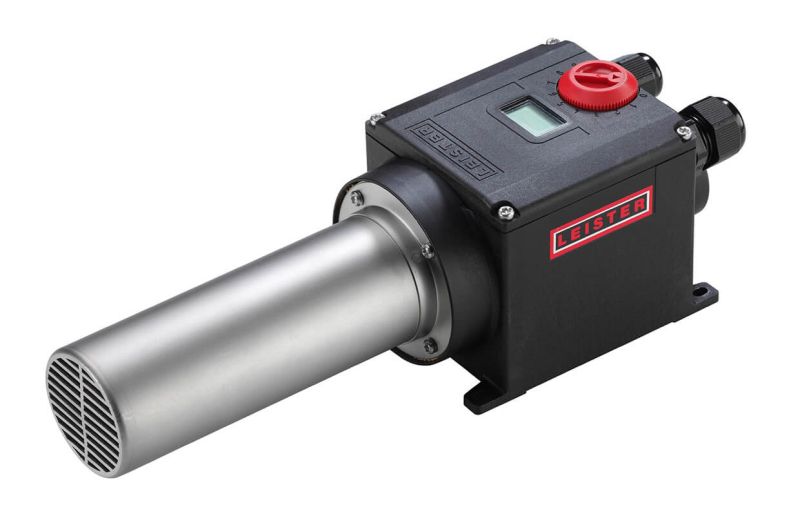

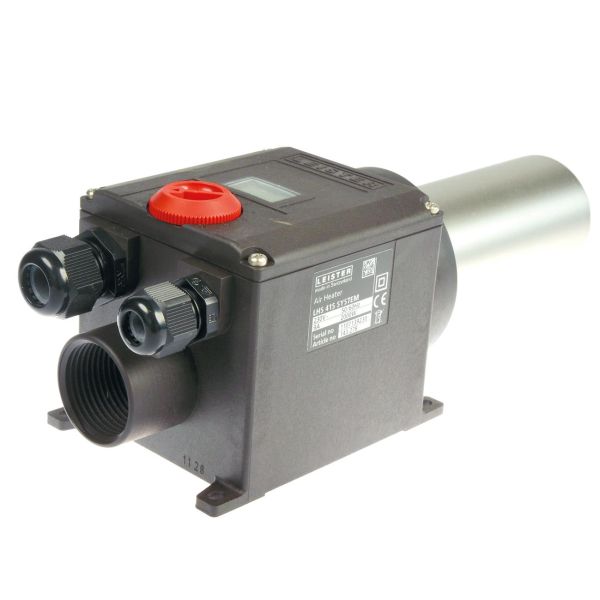

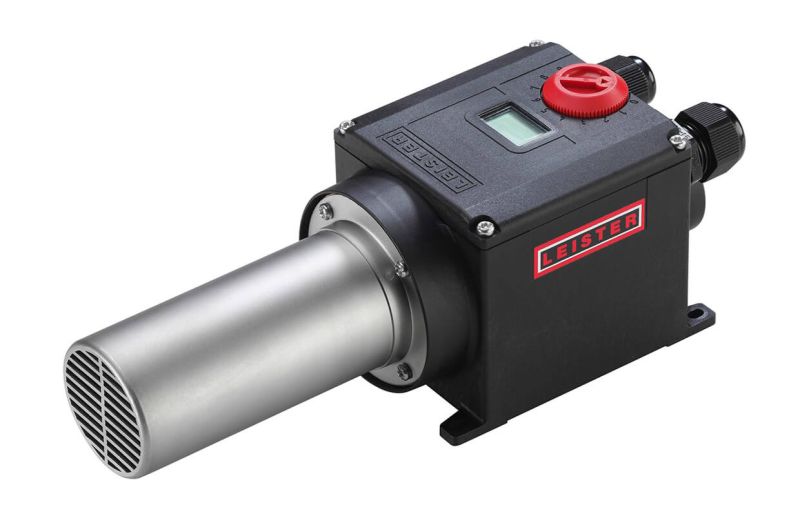

LHS 41S / 41L SYSTEM Industrial Process Air Heater
The medium size LHS 41 series air heaters cover an extremely wide application range. The small footprint enables easy integration into machines. The heater tube diameter of 50 mm allows passing sufficient air flow, also for high performance applications. Compatible with the existing blower and nozzle range. Available in both short (LHS41S) and long (LHS41L) options.
Key Features: LHS 41S / 41L SYSTEM
- Easy to integrate (mounted from above)
- Overheat protection with alarm output for the heating element
- Tool overheat protection with alarm output
- Infinitely adjustable heating capacity via potentiometer
- Remote control via analogue interface (4 – 20 mA or 0 – 10 V)
- Various open-loop and closed-loop control modes available for selection
- LED display (target/actual value display)
- Heating power and temperature steplessly adjustable with potentiometer or remote control interface
- Protection against heating element and device overheating with alarm output
- Remote control interface for external temperature controllers (Leister CSS or PLCs)
- Power Range: 2.0 to 5.5 kW
- Available in 120v, 230v & 400v
Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
Specification
Technical Data: LHS 41S / 41L SYSTEM Industrial Process Air Heater
- Power consumption: 2 kW to 5.5 kW
- Heating power & temperature steplessly adjustable with potentiometer or remote control interface
- Protection against heating element and device overheating with alarm output
- Remote control interface for external temperature controllers (Leister CSS EASY Controller or PLCs)
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 0.85 kg (short), 0.95 kg (long)
- Min. air flow: (see graph)
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
LHS 41S / 41L Temperature Air Flow Characteristics:-
LHS41 Installation Dimensions:-
