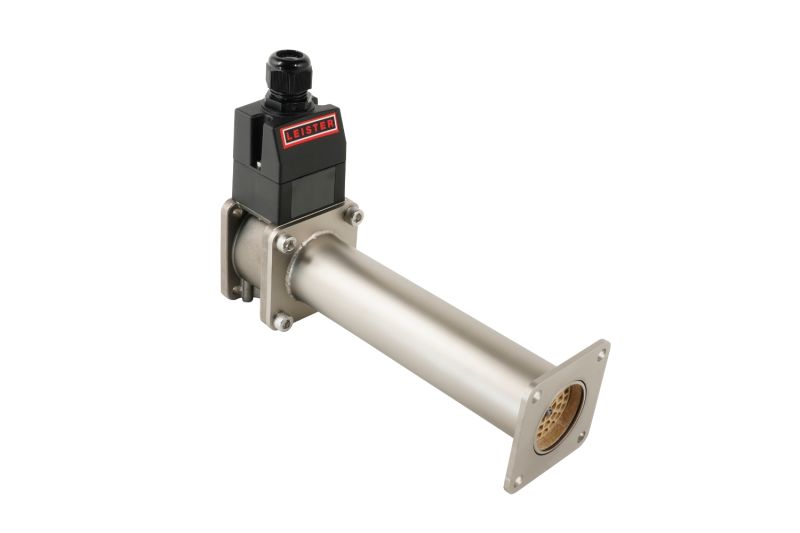

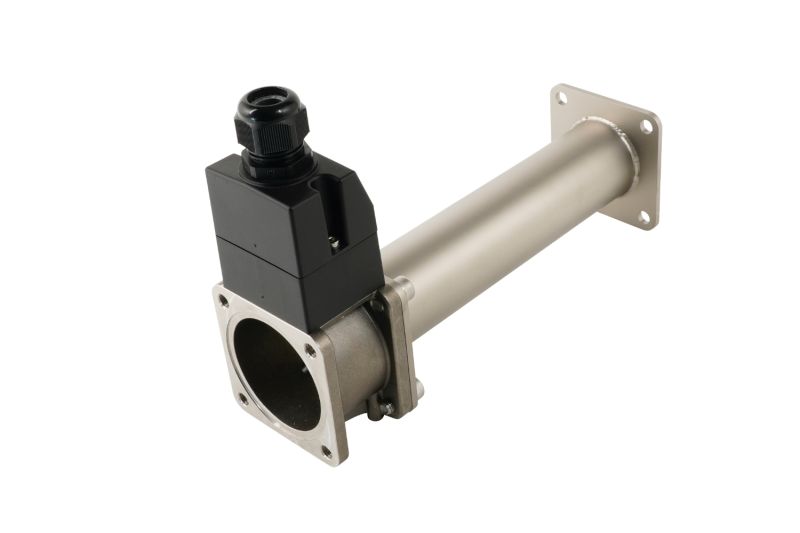

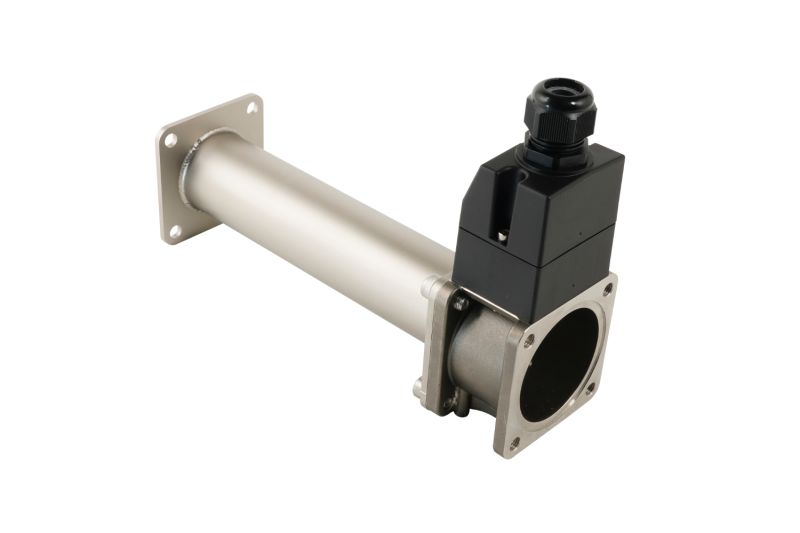

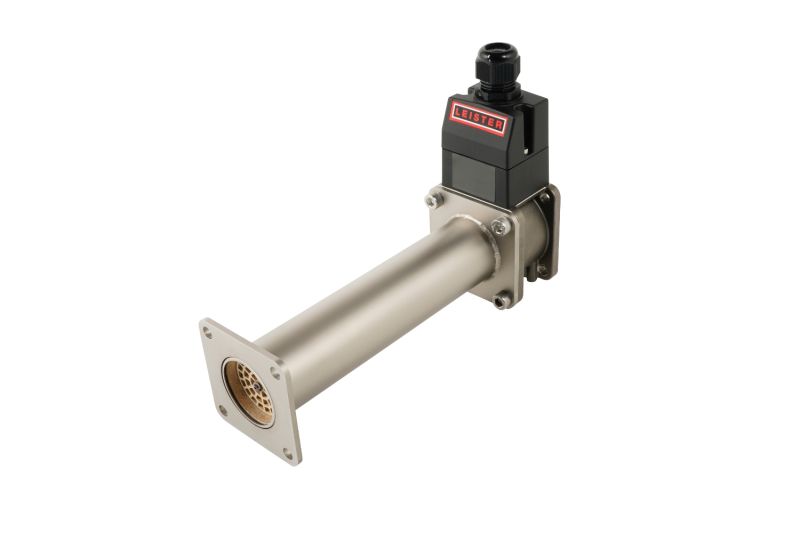

Leister LHS 410 DF HT High Temperature Process Heater 230V 4.4kW/400V 5.5kW
The LHS 410 DF HT double flanged high temperature air heater from Leister comes in 2 variants; the 4.4kW 230V 176.898 and 5.5kW 400V 176.899. Both high temperature air heaters come with a max. outlet temperarture of 900ºC and a max. inlet temperature of 100ºC.
Description
Leister LHS 410 DF HT Industrial Process Heaters 4.4kW 230V & 5.5kW 400V
The latest LHS 410 double flanged high temperature advanced industrial process air heaters from Leister are distinguished by its flanged design and small dimensions, this new model now comes with high temperature output for more versatility.
The new LHS 410 DF HT (double flange, high temperature) models are longer than both the LHS 41 and LHS 410 DF models (at 268mm vs 245mm & 168mm), but still able to fit into confined spaces on a production line. The temperature of the LHS 410 DF HT air heater can be precisely controlled via solid state relay (SSR), controller (CSS or E5CC) and thermocouple holder depending on the power.
Designed for professional integration into machine systems, the new LHS series enables any specific application.
Sterilising, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology. High temperature models are also suitable for annealing, surface activation and various other applications requiring high temperatures
Other models in the range include input and output flanges as well as heat recirculation options, which dramatically improves energy efficiency
Compatible Blowers: Leister ROBUST Industrial Process Blower, Leister MONO System (Built in Airflow Control), Leister AIRPACK Industrial Process Blower
Key Features:
- Small sized heater
- Easy to integrate (mounted from above)
- Temperature: precise control via solid state relay, controller & thermocouple
- Power: 4.4 - 5.5 kW
- Voltage: 230V & 400V
- Air tight up to 1 bar
- Electrical connection separated from airstream
Specification
Leister LHS 410 DF HT Double Flanged High Temperature Industrial Process Air Heater
Technical Details:-
- Power consumption: 4.4-5.5kW
- Temperature: precise control via solid state relay/controller & thermocouple
- Max. air outlet temperature: 900ºC
- Max. air inlet temperature: 100ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 2.09kg
- Nozzle connection size: 36.5mm
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower
LHS 210/410 SF/DF HT Installation Dimensions:
