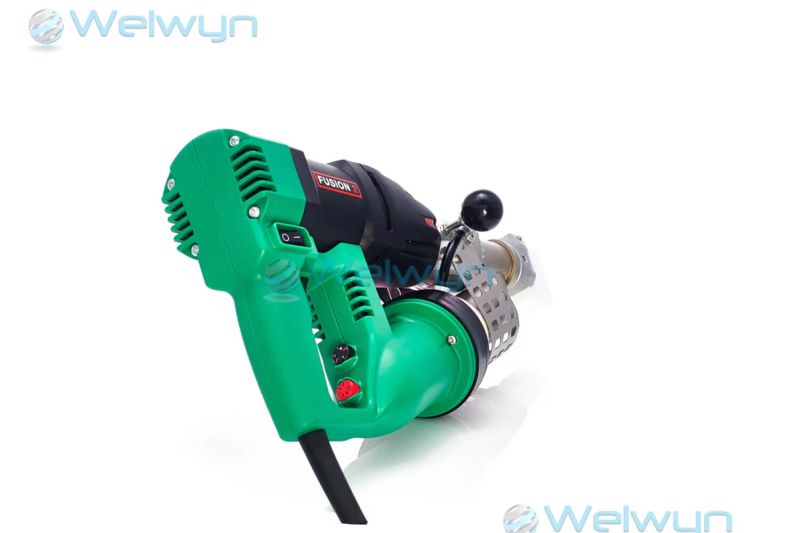

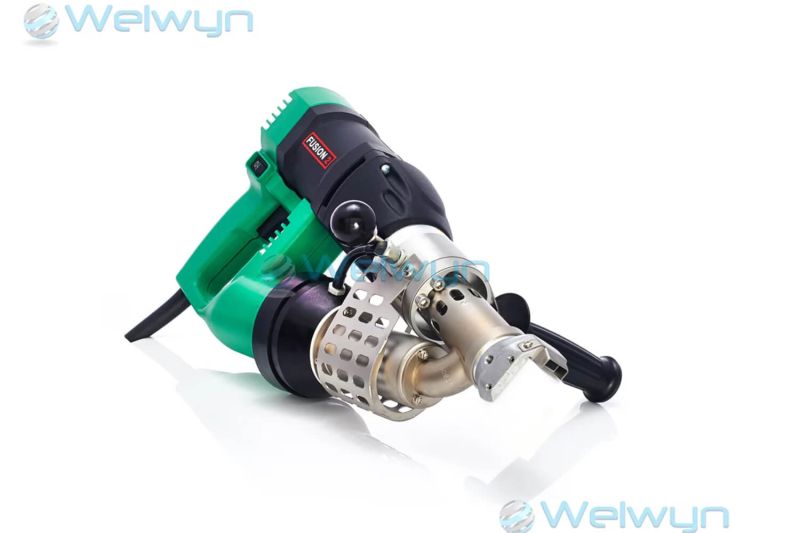

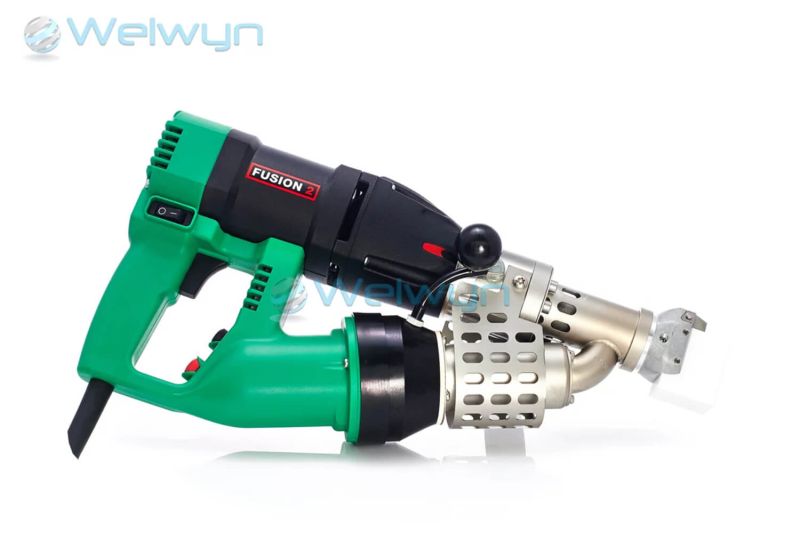

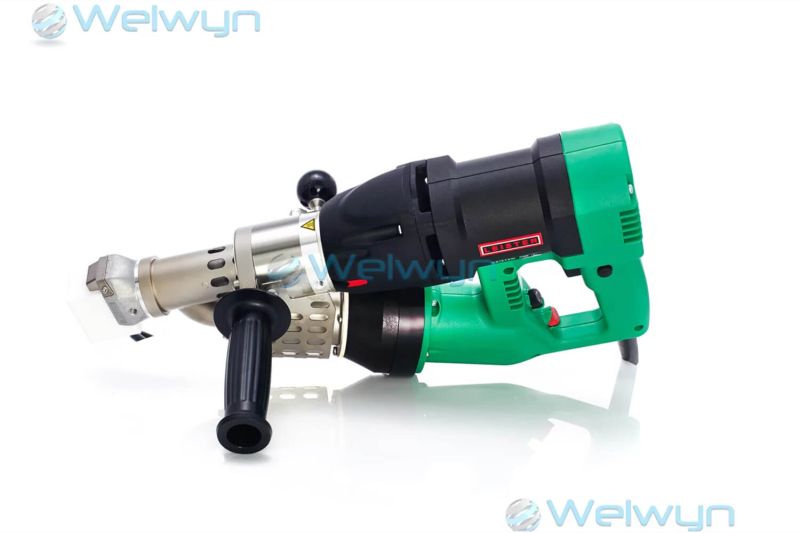

Leister FUSION 2 120v for Plastic Welding & Fabrication 150.102

SKU:
150.102/L0

Leister Fusion 2 120V 4mm Plastic Welding Extruder designed for site use, at only 450mm long and designed for tight spaces but with the capability to weld PE & PP at up to 1.8kg/h

Estimated Delivery: Next Working Day (order before 3pm)
£3,425.46 £2,854.55

Description

The Fusion 2 120V is Leister's 1.3-1.8kg/hr 'Plug-in and Weld' Plastic Extrusion Gun for site work

One of Leister's compact extruders originally designed for welding in tight spaces but still able to produce welds in PE or PP at speeds of 1.3 to 1.8kg/h. With its 'no fuss' plug in and weld capability, the FUSION 2 120V has become the extruder of choice to get the job done in the toughest of site environments. Now available in 120V especially for the UK on-site locations where 230V is not always an option, the FUSION 2 will weld plastic anytime, anywhere.

Key Features

  • High-quality welding performance
  • Compact and handy, only 450mm long
  • Welds PE / PP
  • Motor start-up protection prevents cold start
  • Simple operation
  • Dual-sided twist-free wire intake
  • 360º rotating welding shoe
  • No fuss Plug-in & Weld functionality
  • Power 2.8kW
  • Voltage 120V
  • Weight 5.9 kg
  • Wide range of welding shoes available
  • Optional insulation sleeve (166.524) for cold environments and user protection

Specification

Leister Fusion 2 120V 4mm Plastic Welding Extruder 150.102

Very compact and easy to handle with a maximum output rate of 1.8 kg/h. Robust design (suitable for construction site use). Stepless adjustment of preheating temperature and output rate. Output regulation during welding possible. Motor starting protection protects the device against cold-starts. 360° rotatable welding shoe, 180° rotatable handle. Twist-free rod feed

Technical data: FUSION 2

Voltage V: 120

Power W: 2800

Material: PE / PP

Air temperature: up to 340ºC

Plastification temperature: up to 300ºC

Welding rod: 4mm (Dia)

Output PE kg/h : 1.3 - 1.8

Size (L × W × H) mm: 450 × 98 × 225

Weight: 5.9 kg (without cable)

Included with purchase: FUSION 2 120V, user manual, blank welding shoe, storage case
