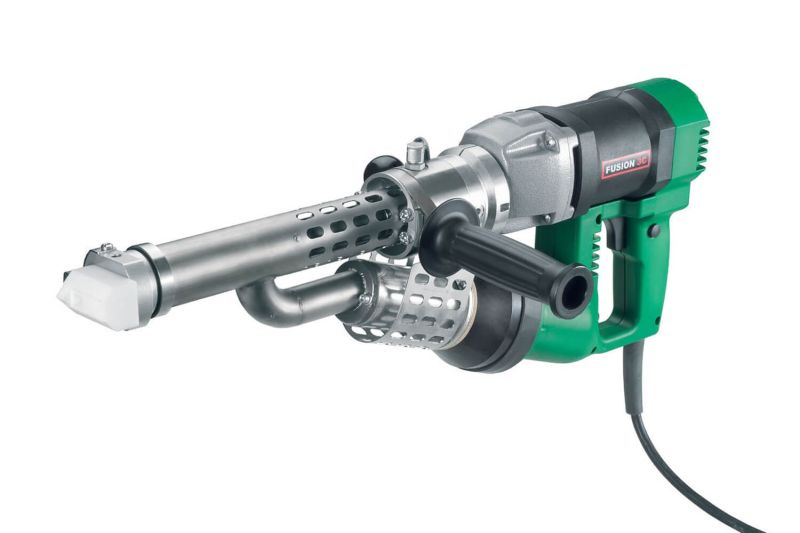

Leister FUSION 3C 230v 3-4mm/4-5mm for Plastic Welding & Fabrication
With it's 'Plug-in and Weld' capability the no nonsense FUSION 3C from Leister welds at speeds of up to 3.6kg/h. Available in 3-4mm & 4-5mm variants.
Hire this machine for £250 per week - contact 01707 331111 for more info.
Description
With a slightly shorter barrel and therefore being more compact than the FUSION 3, the FUSION 3C air heater extrusion welder is ideal for a wide variety of diverse plastic welding and plastic fabrication applications. With it's 'Plug-in and Weld' capability the no nonsense FUSION 3C welds at speeds of up to 3.6kg/h. Available in 3-4mm and 4-5mm variants.
Key Features
- High-quality welding performance
- Compact and handy
- Welds PE / PP
- Welds 3-4mm or 4-5mm diameter welding rod (depending on model)
- Motor start-up protection prevents cold start
- Simple operation
- Dual-sided twist-free wire intake
- 360 degree rotating welding shoe
- No fuss Plug-in & Weld functionality
- Power 3.2kW
- Weight 6.9 kg
- Wide range of welding shoes available
Hire this machine for only £250 +VAT p/week.
For more information and to book your hire contact 01707 331111 or e-mail : info@welwyntoolgroup.co.uk
Specification
Slim and long design with a maximum output rate of 3.6 kg/h. Robust design and stepless adjustment of preheating temperature and output quantity. Motor starting protection protects the device against cold-starts. 360 degree rotatable welding shoe, handle can be mounted in two positions (L or R). Twist-free rod feed
Technical data: FUSION 3C 3-4mm/4-5mm for Plastic Welding 230v
- Voltage V: 230
- Power W: 2800
- Material: PE / PP
- Welding rod: 4-5 mm (Dia)
- Output PE kg/h (3-4mm Dia version): 2.0 - 2.5 (3mm) / 2.7 - 3.6 (4mm)
- Output PE kg/h (4-5mm Dia version): 2.1 - 2.6 (4mm) / 2.7 - 3.6 (5mm)
- Output PP kg/h (3-4mm Dia version): 1.8 - 2.3 (3mm) / 2.5 - 3.4 (4mm)
- Output PP kg/h (4-5mm Dia version): 1.8 - 2.4 (4mm) / 2.5 - 3.4 (5mm)
- Size (L x W x H) mm: 588 x 98 x 225
- Weight: 6.9 kg
Included with purchase: FUSION 3C, user manual, blank welding shoe, storage case
