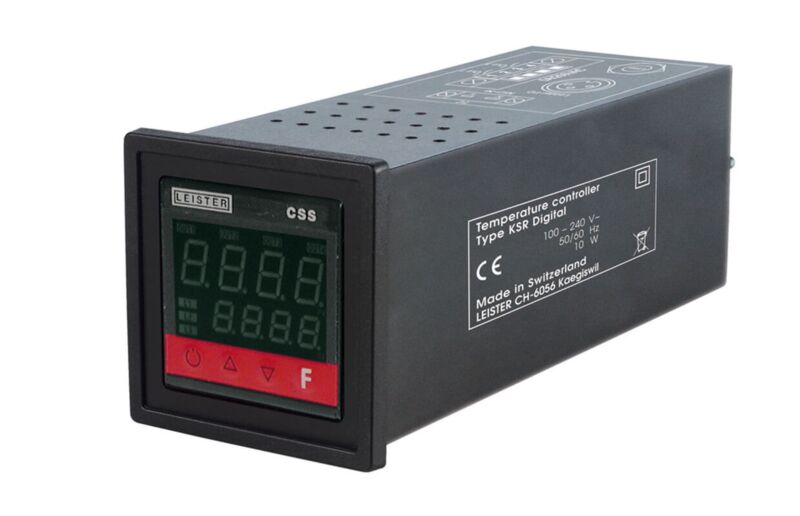

Leister KSR Digital Temperature Controller 111.164

Product Code:
111.164

Leister KSR Digital Controller, the ready-wired plug-and-play solution for regulating LE HT, LE DF, LE DF-R & LE DF-C  air heaters. With 2 independently configurable alarms and 0.2% temperatrure accuracy this regulator has a digital display allowing fast set up and providing precision regulation.

Estimated Delivery: Next Working Day (order before 3pm)

Description

Leister KSR Digital Temperature Controller 111.164

Leister temperature regulator for air heaters LE 40 000, LE 700, LE 5000 DF, LE 10000 DF, LE 5000 HT, LE 10000 HT,  LE 5000 DF-R, LE 10000 DF-R and LE 1000- DF-C* (*with DSE). With the right temperature probe, the air temperature of these devices can be measured, displayed, set and regulated.

Leister temperature regulators allow the air temperatire of air heaters and hot air blowers to be precisely regulated. These regulatoirs are perfectly matched to our Leister devices and facilitiate easy and fast installation. They include a digital display for target/actual temperature and 2 freely programmable alarm outputs.

Key feartures:-

  • Suitable for Leister LE 5000/10000 HT,  LE 5000/10000 DF, LE 5000/10000 DF-R and LE 10000 DF-C air heaters
  • PID regulation type
  • Ready to use with preconfigured parameter set
  • Configuration with PC and programming cable
  • Highly accurate
  • Alarm output

Specification

Technical Data for KSR DIGITAL Temperature Controller 111.164

  • Suitable for Leister air heaters: LE 5000/10000 HT, LE 5000/10000 DF, LE 5000/10000 DF-R,
  • Regulation type: PID
  • Ready to use with preconfigured parameter set
  • Accuracy: > 0.2 % of scale value at 25 °C
  • Switchover C° / F°: Configurable via keypad
  • Temperature sensor / input: Type K / socket
  • Alarm output: 2 independently configurable alarms. Output at 2 floating relay contacts. 2 mm receptacle
  • Connection to air heater: Socket, compatible with KSR models
  • Voltage: 100 – 240 VAC, max. 8 VA
  • Mains connection lead: 3 m, with Euro plug
  • Mechanics: Regulator built into housing, ready to operate, can also be integrated into the front panel, with cut-out 67 × 67 mm
  • Dimensions (L × W × H): 175 × 72 × 72 mm
  • Weight kg: 0.50
