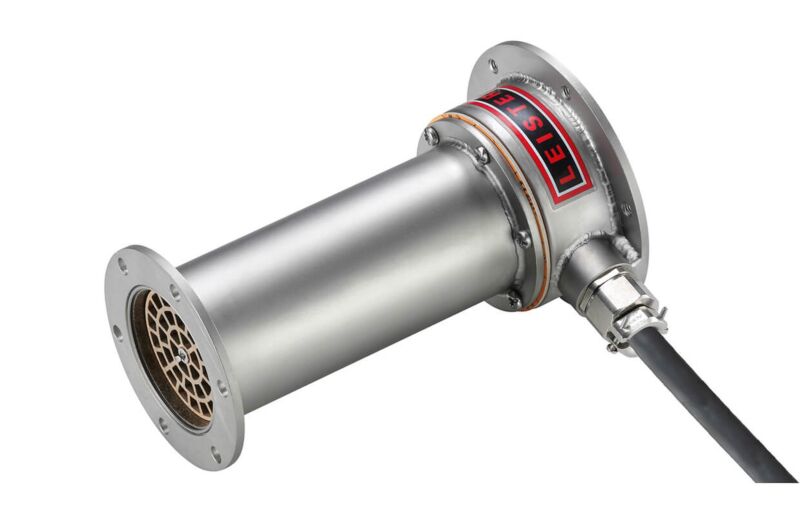

Leister LE 5000 DF Process Heater
Standard double flange LE 5000 DF model air heaters, with power output ranging from 3.5kW to 7.5kW. Minimum air flow ranges from 310 Nl/min to 510 Nl/min, depending on power output.
Description
LE 5000 DF Industrial Process Double Flange Air Heaters
Standard double flange air heaters (LE 5000 DF models), with power output ranging from 3.5kW to 7.5kW. Minimum air flow ranges from 310 Nl/min to 510 Nl/min, depending on power output. Maximum air inlet temperature is 160°C and max. ambient temperature is 100°C across the board. Weight including cable is 2.6kg
Compatible Blowers: TBA
Optional power controller: Leister DSE Three Phase Controller
Optional temperature regulation: Leister DSE Three Phase Controller
Specification
Technical Data: LE 5000 DF Industrial Process Double Flange Air Heaters
- Easy integration into existing air systems
- Suitable for recycling air
- Simple & safe fixture options
- No integrated power electronics
- Max. air outlet temp: 700°C
- Min. air flow (20°C):-
- 4.5kW model - 310 Nl/min
- 6.5kW model - 450 Nl/min
- 7.5kW model - 510 Nl/min
- Max. air inlet temp: 160°C
- Max. ambient temp: 100°C
- Weight: 2.6kg
Optional power controller: DSE three-phase controller
Optional temperature regulation: DSE three-phase controller and KSR DIGITAL temperature regulator
LE 5000 DF Installation Dimensions:-
