Leister LHS 210 DF-R (120v/230v) Double Flange Recirculation Process Air Heaters
Available in both 120V and 230V options, the new LHS 210 DF-R double flanged, recirculation air heaters come with overheat detection with alarm for both the heater and heating element.
Description
Leister LHS 210 DF-R (120v/230v) Double Flange Recirculation Industrial Process Heaters
The latest LHS 210 flanged series of advanced industrial process air heaters is distinguished by its flanged design and extremely small dimensions, also now available with more versatility.
The new LHS 210 DF-R (double flange, recirculation) is considerasbly shorter than the LHS 21 (at 168mm vs 236mm), able to fit into more confined spaces. This 'R' model brings hot air recirculation, and higher energy efficiency, into a wider range of industrial process air heaters. Air inlet temperatures of up to 350ºC are achievable.
Designed for professional integration into machine systems, the new LHS 210 series enables any specific application.
Sterilizing, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology.
Compatible Blowers: Leister ROBUST Industrial Process Blower, Leister MONO System (Built in Airflow Control), Leister AIRPACK Industrial Process Blower
Key Features:
- Small sized heater
- Double flange
- Recirculation heater
- Easy to integrate
- Overheat detection with alarm output for the heating element
- Tool overheat detection with alarm output
- Heating Power: not adjustable
- Power Range: 1 kW to 3.3 kW
- Available in 120V & 230V
- Air tight up to 1 bar
- Electrical connection separated from airstream
Specification
Leister LHS 210 DF-R Double Flanged Recirculation Industrial Process Air Heaters
Technical Details:-
- Power consumption: 1.0 to 3.3 kW
- Voltage 120v (1kW) and 230v (1.0, 2.0, 3.3kW)
- Heating power: not adjustable
- Detection of heating element and device overheating: Y with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 350ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 1.2 - 1.6kg
- Min. air flow:
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower

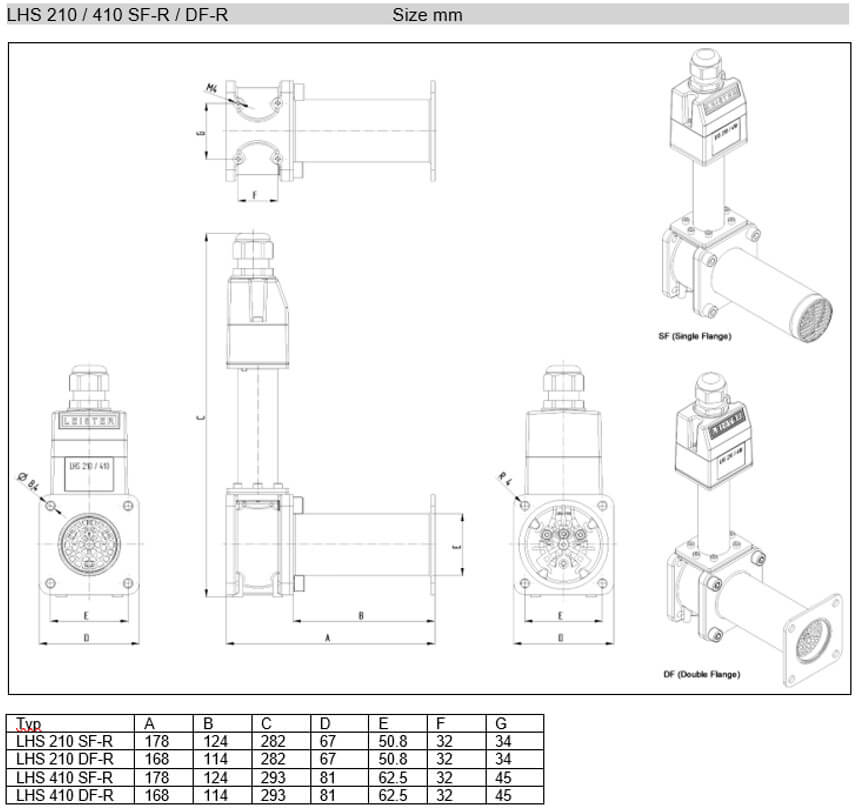

LHS210 Installation Dimensions:
