Leister LE 10000 DF-C Clean Air Process Heater 400v
The LE 10000 DF-C is a clean air hot air recirculation air heater capable of producing air outlet tempertures of 650°C while accepting air inlet tempertures of up to 150°C. Power output of up to 17.5kW and a minimum air flow as low as 400 Nl/min.
Description
LE 10000 DF-C Industrial Process Double Flange Clean Air Recirculation Heater
The Clean Air Heater is the next step in completing the double-flange proiduct range. This air heater is suitable for industries with stringent requirements for "clean" environments such as: food and beverage, medical, pharnaceutica, cosmetics and electronics manufacturing. The LE 10000 DF-C was developed using the newest standards for clean production defined by the European Hygenic Enginerring & Design Group (EHEDG). The Clean AIr Heater's design minimises particle emission and is exclusively manufactured using nontoxic materials.
In addition this latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.
On the inlet side, the LE 10000 DF-C can easily tolerate temperatures up to 150°C. Maximum Air inlet temperature 150°C. Maximum Ambient Temperature 100°C. Maximum Air Outlet Temperature 650°C. Min Air Flow from 400 to 1300 Nl/min. Compact design, and power from 5.5kW to 17kW
Weight including cable 3.9kg
Compatible Blowers: N/A
Optional power controller: Leister DSE Three Phase Controller
Optional temperature regulation: Leister DSE Three Phase Controller and KSR DIGITAL temperature regulator
Specification
Technical Data: Leister LE 10000 DF-C Industrial Process Double Flange Clean Air Recirculation Air Heater
The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Dedicated hot air recirculation air heaters like the LE 10000 DF-C are capable of air inlet temperatures of 150°C. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.
The LE 10000 DF-C model can achieve air outlet temperatures of 650°C a power output of up to 17.5 kW at an minimum air flow as low as 400 Nl/min.
- Easy integration into existing air systems
- Suitable for hot air recycling
- Simple & safe fixture options
- No integrated power electronics
- Max. air outlet temp: 650°C
- Min. air flow (20°C):
- 5.5kw 400 Nl/min
- 11kw 810 Nl/min
- 17.5kw 1300 Nl/min
- Max. air inlet temp: 150°C
- Max. ambient temp: 100°C
- Weight: 3.9kg
Optional power controller: DSE three-phase controller
Optional temperature regulation: DSE three-phase controller and KSR DIGITAL temperature regulator

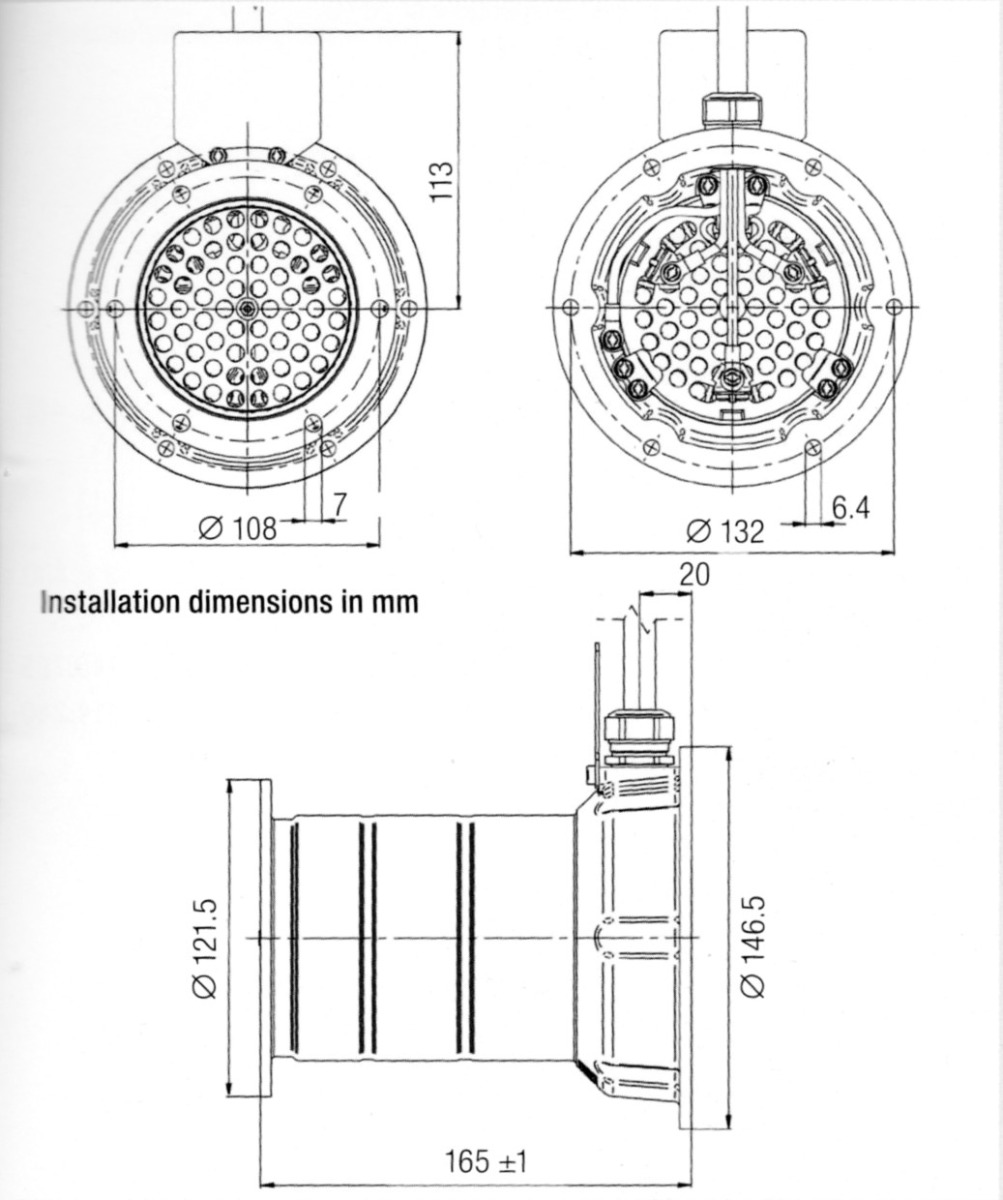

LE 10000 DF-C Installation Dimensions:-
