Leister LE 10000 DF-R HT 400v 15kW Process Heater 146.850

SKU:
146.850

The LE 10000 DF-R HT is a dedicated hot air recirculation air heater capable of producing air outlet tempertures of 900°C while accepting air inlet tempertures of up to 350°C. Power output of 15kW and a minimum air flow of 800 Nl/min.

Estimated Delivery: Next Working Day (order before 3pm)

Description

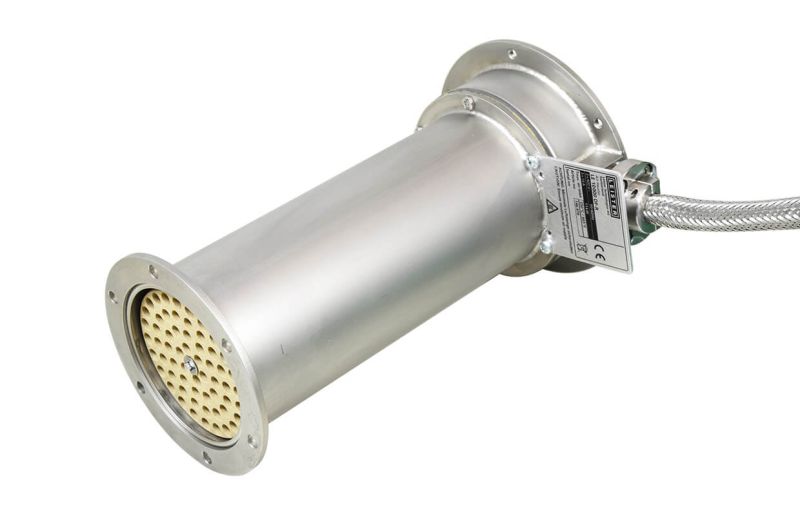

Leister LE 10000 DF-R HT Industrial Process Double Flange High Temperature Hot Air Recirculation Air Heater

The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.

On the inlet side, the LE 10000 DF-R HT can easily tolerate air inlet temperatures up to 350°C and deliver air outlet temperatures of up to 900°C. The maximum ambient temperature, at 200°C, is double that of non-dedicated hot air recirculation air heaters.

Minimum air flow is 800 Nl/min and power output is 15kW.

Compatible Blowers: TBC

Optional power controller: Leister DSE Three Phase Controller

Optional temperature regulation: Leister DSE Three Phase Controller and Leister KSR DIGITAL temperature regulator

Specification

Technical Data: Leister LE 10000 DF-R HT Industrial Process Double Flange High Temperature Hot Air Recirculation Air Heater

The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Dedicated high temperature air heaters like the LE 10000 DF-R HT are capable of air inlet temperatures of 350°C. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.

The LE 10000 DF-R HT model can achieve air outlet temperatures of 900°C a power output of 15 kW at an minimum air flow of 800 Nl/min.

  • Easy integration into existing air systems
  • Suitable for recycling air
  • Simple & safe fixture options
  • No integrated power electronics
  • Max. air outlet temp: 900°C
  • Min. air flow (20°C): 800 Nl/min
  • Max. air inlet temp: 350°C
  • Max. ambient temp: 200°C
  • Weight: 4.0kg

Optional power controller: DSE three-phase controller

Optional temperature regulation: DSE three-phase controller and KSR DIGITAL temperature regulator


LE 10000 DF Installation Dimensions:-

LE 10000 DF Process Heater Installation Dimensions
