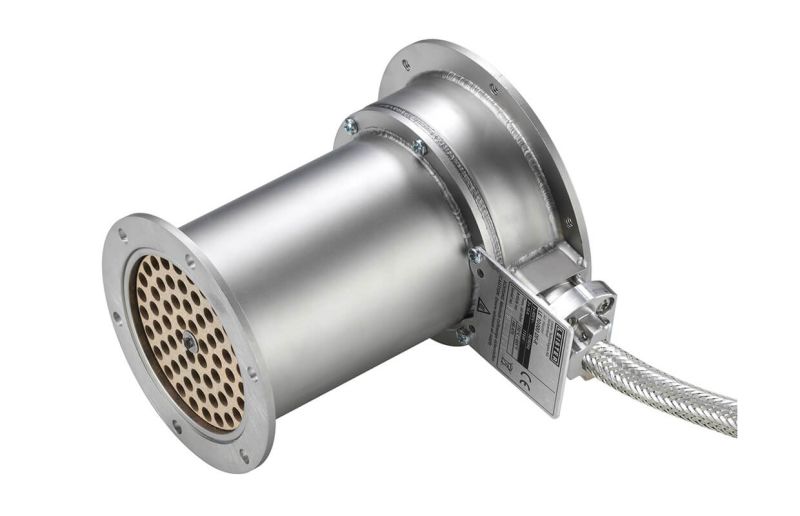

Leister LE 10000 DF-R Process Heater 400v

SKU:
LE10000DF-R

The LE 10000 DF-R is a hot air recirculation air heater capable of producing air outlet tempertures of 650°C while accepting air inlet tempertures of up to 350°C. Power output of up to 17.5kW and a minimum air flow as low as 400 Nl/min.

Estimated Delivery: Next Working Day (order before 3pm)

Description

LE 10000 DF-R Industrial Process Double Flange Recirculation Air Heaters

The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.

On the inlet side, the LE 10000 DF-R can easily tolerate temperatures up to 350°C. Maximum Air inlet temperature 350°C. Maximum Ambient Temperature 200°C. Maximum Air Outlet Temperature 650°C. Min Air Flow from 400 to 1300 Nl/min. Compact design, and power from 5.5kW to 17kW

Weight including cable 2.7kg

Compatible Blowers: N/A

Optional power controller: Leister DSE Three Phase Controller

Optional temperature regulation: Leister DSE Three Phase Controller and KSR DIGITAL temperature regulator

Specification

Technical Data: Leister LE 10000 DF-R Industrial Process Double Flange Hot Air Recirculation Air Heater

The latest generation of double-flange air heaters is specially designed to be used in the hot air recirculation mode. Dedicated hot air recirculation air heaters like the LE 10000 DF-R are capable of air inlet temperatures of 350°C. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling“ hot air. This not only saves on expenses, it also protects the environment.

The LE 5000 DF-R model can achieve air outlet temperatures of 650°C a power output of up to 17.5 kW at an minimum air flow as low as 400 Nl/min.

  • Easy integration into existing air systems
  • Suitable for hot air recycling
  • Simple & safe fixture options
  • No integrated power electronics
  • Max. air outlet temp: 650°C
  • Min. air flow (20°C):
    • 5.5kw 400 Nl/min
    • 11kw 810 Nl/min
    • 17.5kw 1300 Nl/min
  • Max. air inlet temp: 350°C
  • Max. ambient temp: 200°C
  • Weight: 2.7kg

Optional power controller: DSE three-phase controller

Optional temperature regulation: DSE three-phase controller and KSR DIGITAL temperature regulator


LE 10000 DF Installation Dimensions:-

LE 10000 DF Process Heater Installation Dimensions
