Leister LHS 210 SF-R HT 230v 3.3kW Recirculation High Temperature Process Heater 176.894
Leisters LHS 210 SF-R HT single flanged high temperature recirculation air heater (176.894) comes with maximum air outlet temp of 900°C and an maximum air inlet temp of 350°C, saving significant costs in energy recovery.
Description
Leister LHS 210 SF-R HT 230V Industrial Process High Temperature Recirculation Air Heater
The latest LHS 210 flanged series of advanced industrial process air heaters is distinguished by its flanged design and extremely small dimensions, also now available with more versatility.
The new LHS 210 SF-R HT (single flange) is able to fit into confined spaces, but more importantly this 'R' model brings hot air recirculation, and higher energy efficiency, into a wider range of industrial process air heaters. Air inlet temperatures of up to 350ºC are achievable, which means significant cost savings on the production line. Estimated energy savings of 159,600kWh are achievable using a recirculation heater depending on the product setup, temperature and production run-time requirements.
A solid state relay (SSR), a controller (CSS or E5CC) and a well-placed thermocouple holder allow the air temperature to be controlled as a function of power.
Designed for professional integration into machine systems, the new LHS 210 series enables any specific application.
Sterilising, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology. High temperature models, like the LHS 210 SF-R HT are also suitable for annealing, surface activation and various other applications requiring high temperatures.
Other models in the range include input and output flanges.
Compatible Blowers: Leister ROBUST Industrial Process Blower, Leister MONO System (Built in Airflow Control), Leister AIRPACK Industrial Process Blower
Key Features:
- Small sized heater
- Easy to integrate
- Temperature: precisely adjustable using SSR/Controller and thermocouple
- Power: 3.3 kW
- Voltage: 230V
- Air tight up to 1 bar
- Electrical connection separated from airstream
Specification
Leister LHS 210 SF-R HT Single Flanged Recirculation High Temperature Industrial Process Air Heater
Technical Details:-
- Power consumption: 3.3 kW
- Heating power: adjustable
- Max. air outlet temperature: 9900ºC
- Max. air inlet temperature: 350ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 1.78kg
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower

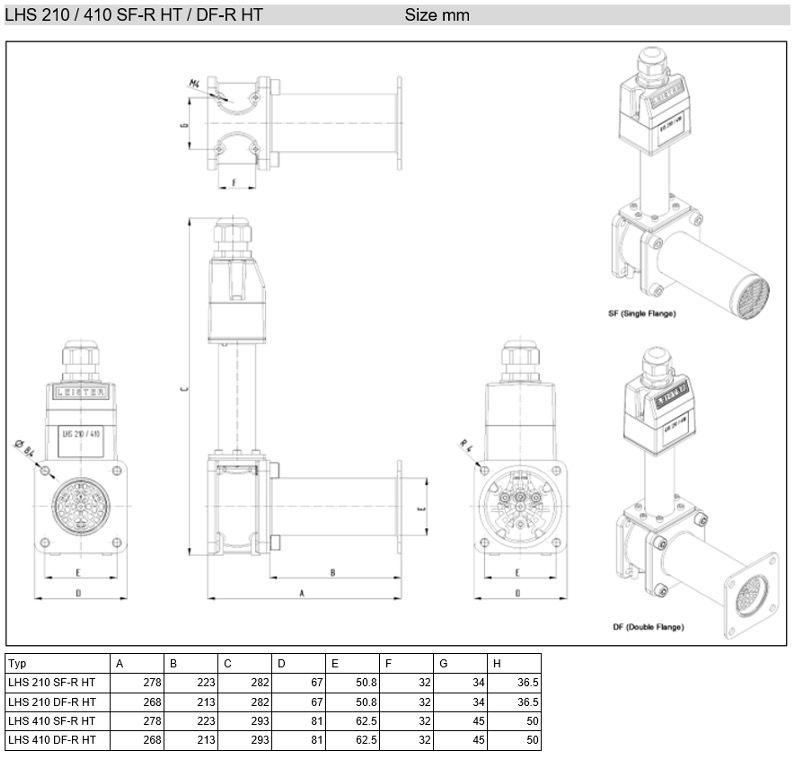

LHS 210/410 SF-R/DF-R HT Installation Dimensions:
