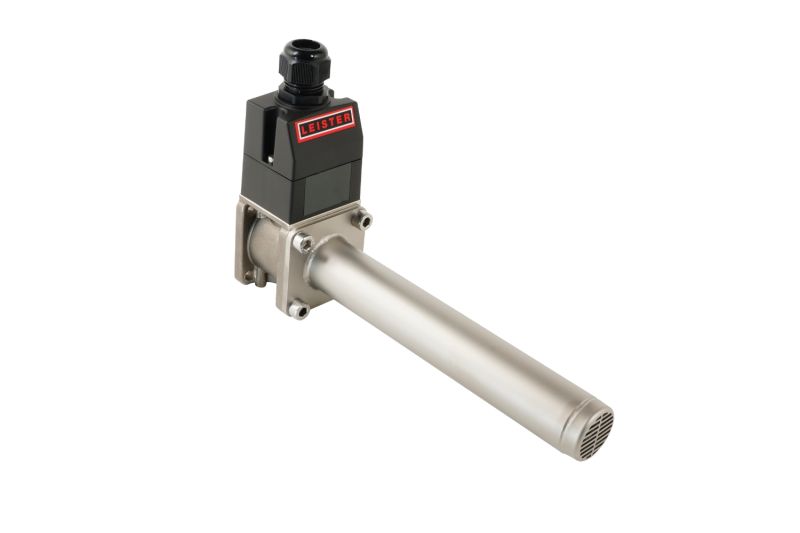

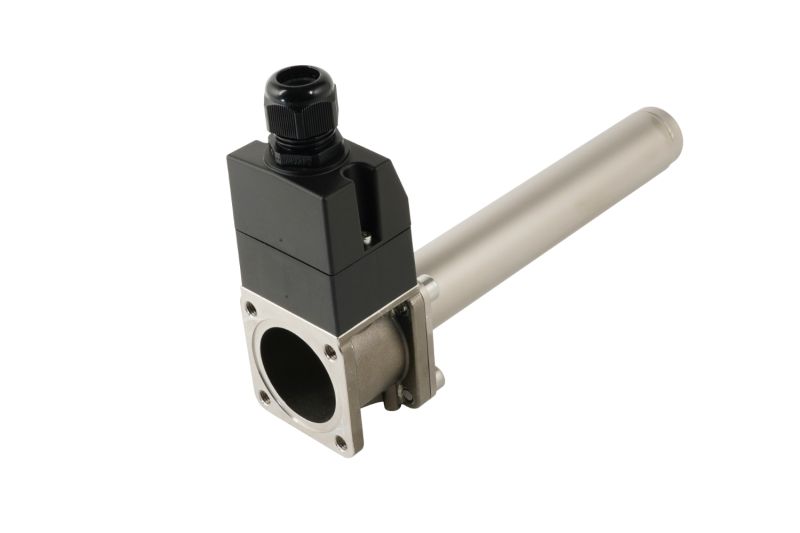

Leister LHS 210 SF HT 230v 3.3kW High Temperature Process Heater 176.891
The LHS 210 SF HT, single flanged high temperature air heater from Leister. Available in 230V with a max. outlet temperarture of 900ºC and a max. inlet temperature of 100ºC, the LHS 210 SF HT air heater (176.891) has a power output of 3.3kW.
Description
Leister LHS 210 SF HT 230V 3.3kW Industrial Process Heater
The latest LHS 210 single flanged high temperature advanced industrial process air heater from Leister is distinguished by its flanged design and extremely small dimensions, this new model now comes with high temperature output for more versatility.
The new LHS 210 SF HT (single flange, high temperature) model is longer than both the LHS 21 and LHS 210 SF models (at 278mm vs 236mm & 178mm), but still able to fit into confined spaces on a production line. The temperature of the LHS 210 SF HT air heater can be precisely controlled via solid state relay (SSR), controller (CSS or E5CC) and thermocouple holder depending on the power.
Designed for professional integration into machine systems, the new LHS series enables any specific application.
Sterilising, drying, welding, cleaning, shrinking, shaping, deburring and activating are now more efficient and reliable thanks to Leister’s proven hot-air technology. High temperature models are also suitable for annealing, surface activation and various other applications requiring high temperatures
Other models in the range include input and output flanges as well as heat recirculation options, which dramatically improves energy efficiency
Compatible Blowers: Leister ROBUST Industrial Process Blower, Leister MONO System (Built in Airflow Control), Leister AIRPACK Industrial Process Blower
Key Features:
- Small sized heater
- Easy to integrate (mounted from above)
- Temperature: precise control via solid state relay, controller & thermocouple
- Power Range: 3.3 kW
- Voltage: 230V
- Air tight up to 1 bar
- Electrical connection separated from airstream
Specification
Leister LHS 210 SF HT Single Flanged High Temperature Industrial Process Air Heater
Technical Details:-
- Power consumption: 3.3 kW
- Max. air outlet temperature: 900ºC
- Max. air inlet temperature: 100ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 1.45kg
- Nozzle connection size: 36.5mm
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
- Leister AIRPACK Industrial Process Blower

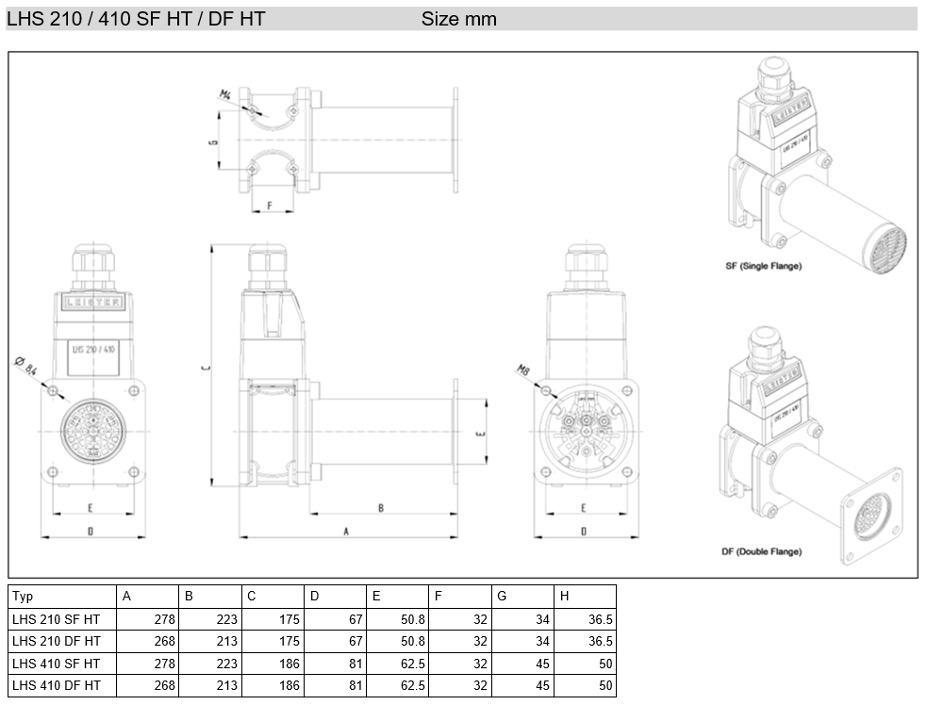

LHS 210/410 SF/DF HT Installation Dimensions:
