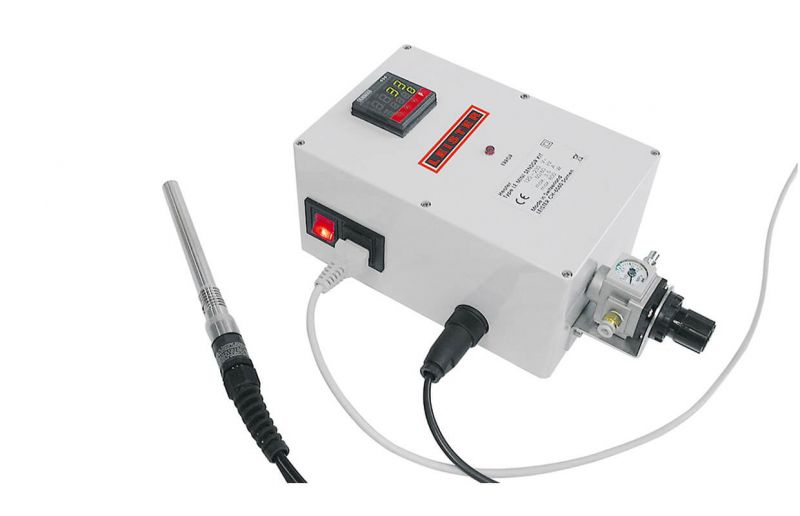

Leister LE MINI SENSOR KIT (120v/230v) Process Heater

SKU:
LE MINI SENSOR KIT

The world’s smallest air heater with an integrated temperature probe. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces. The LE MINI SENSOR KIT add-on box offers a plug'n'play solution with its integrated power electronics and temperature regulator. It operates with compressed air at a pressure of 200 kPa, available in 120V 400W & 230V 800W options.

Estimated Delivery: Next Working Day (order before 3pm)

Description

LE MINI SENSOR KIT Industrial Process Mini Air Heater

The world’s smallest air heater with an integrated temperature probe. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces.

The LE MINI SENSOR KIT add-on box offers a plug'n'play solution with its integrated power electronics and temperature regulator. It operates with compressed air at a pressure of 200 kPa.

Model versions are available in 120V 400W and 230V 800W options.

  • Power consumption: 0.4 – 0.8 kW
  • Max. temperature: 750 °C
  • Pressure: 2 bar

Compatible Blowers: Compressed Air (200kPa Max Pressure)

Specification

Technical Data: LE MINI SENSOR KIT Industrial Process Hot Air Heaters

  • Temperature regulator integrated into the connection box
  • Integrated temperature probe
  • Thermoswitch for device protection
  • Heating element protection
  • Analogue output (passive) 4 – 20 mA
  • Pressure reduction valve
  • Max. air outlet temperature:  600°C @ 400 W, 750°C @ 800 W
  • Min. air flow l/min: 10 @ 400 W, 10 @ 800 W
  • Max. air inlet temperature: 60°C
  • Max. ambient temperature: 60°C
  • Max. supply air pressure: 200 kPa
  • Weight LE MINI SENOR KIT: 400W 0.12 kg, 800W 0.15 kg
  • Weight Terminal Box: 2.15 kg
