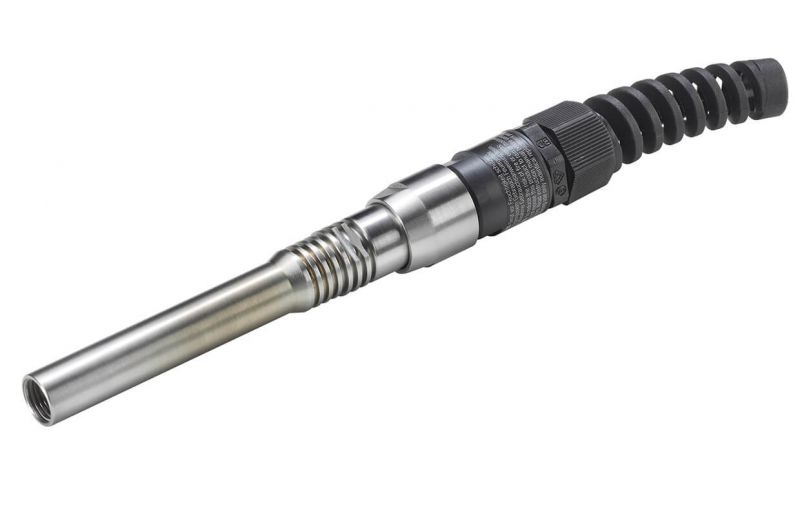

Leister LE MINI (120v/230v) Process Heater
The world’s smallest air heaters. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces. LE MINI operates with compressed air at a pressure of 200 kPa, available in 120v & 230v with power options of 400W or 800W (230v only).
Description
LE MINI Industrial Process Hot Air Heaters
The world’s smallest air heaters. Especially suited for applications in which heat is concentrated to a point. They are simple to incorporate into the tightest spaces. LE MINI operates with compressed air at a pressure of 200 kPa.
Model versions for the standard LE MINI air heaters are available in 120v and 230v versions, with the 230v versions available in 400W and 800W options.
The SENSOR KIT add-on box offers a ready-to-use solution with its integrated power electronics and temperature regulator.
Power consumption: 0.4 – 0.8 kW;
Max. temperature: 750 °C;
Pressure: 2 bar.
Compatible Blowers: Compressed Air (200kPa Max Pressure)
Specification
Technical Data: LE MINI Industrial Process Hot Air Heaters
- Temperature regulator integrated into the connection box (only with SENSOR KIT)
- Integrated temperature probe (only with SENSOR KIT)
- Thermoswitch for device protection: Y
- Heating element protection (only with SENSOR KIT)
- Analogue output (passive) 4 – 20 mA (only with SENSOR KIT)
- Pressure reduction valve (only with SENSOR KIT)
- Max. air outlet temperature: 600°C @ 400 W, 750°C @ 800 W
- Min. air flow l/min: 25 @ 400 W, 30 @ 800 W
- Max. air inlet temperature: 60°C
- Max. ambient temperature: 60°C
- Max. supply air pressure: 200 kPa
- Weight LE MINI: 400W 0.12 kg, 800W 0.15 kg
