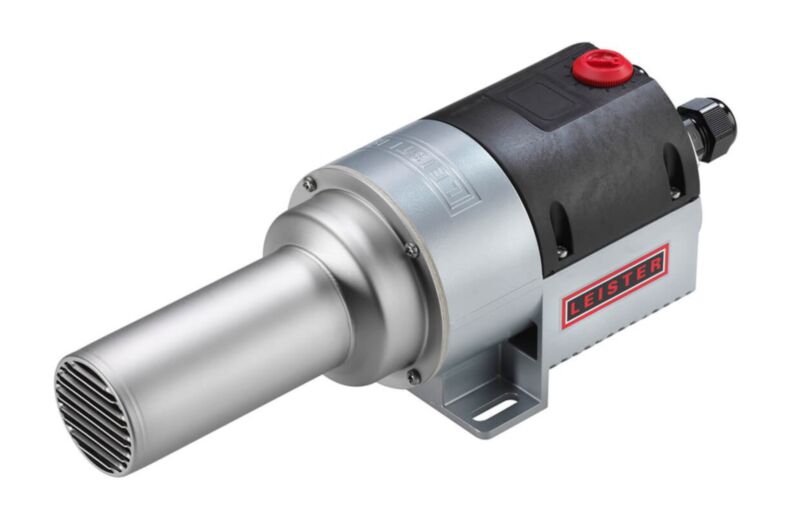

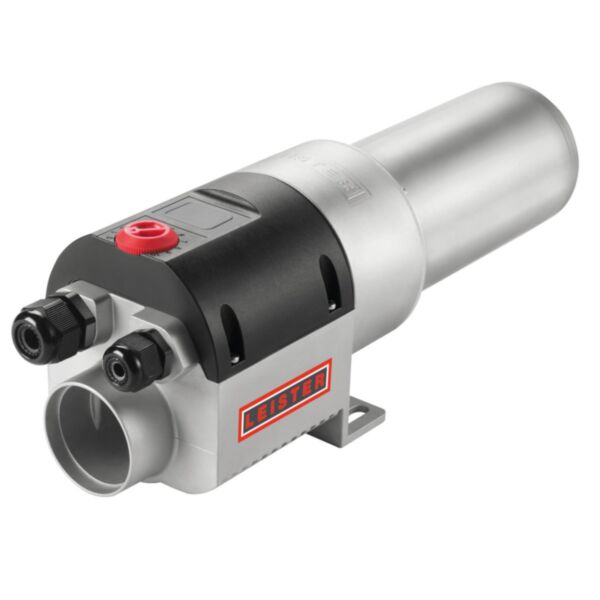

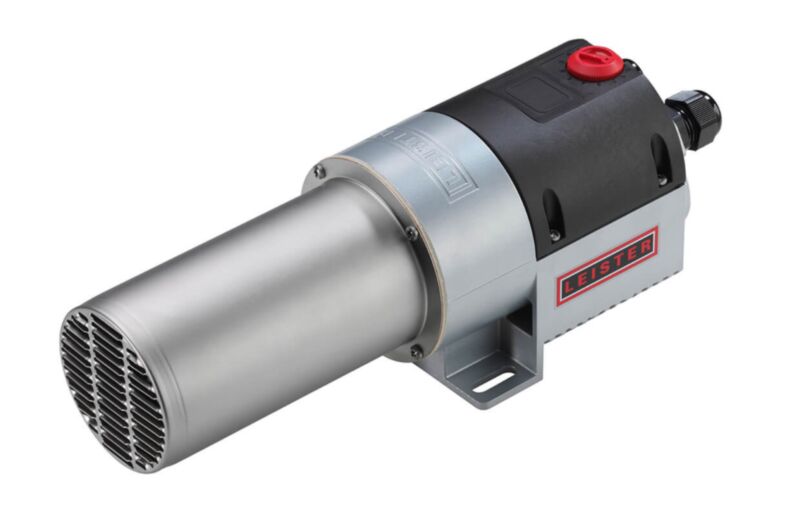

Leister LHS 61S / 61L PREMIUM (230v/400v) Process Heater
The LHS 61S / 61L PREMIUM is easy to integrate (mounted from above) and comes with protection against heating element and device overheating with alarm output. It also features infinitely adjustable heating capacity and steplessly adjustable heating power via potentiometer.
Description
LHS 61S / 61L PREMIUM Industrial Process Air Heaters
The LHS 61 series is your choice for high performance applications. The outlet diameter of 62 mm for LHS 61S versions and 92 mm for LHS 61L versions, allows high air flow with up to 16 kW heating power. Available in both short (LHS61S) and long (LHS61L) options.
Key Features: LHS 61S / 61L PREMIUM
- Easy to integrate (mounted from above)
- Overheat protection with alarm output for the heating element
- Tool overheat protection with alarm output
- Infinitely adjustable heating capacity via potentiometer
- Steplessly adjustable heating power with potentiometer
- Protection against heating element and device overheating with alarm output
- Power Range: 4 to 16 kW
- Available in 230v & 400v
Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
Specification
Technical Data: LHS 61S / 61L PREMIUM Industrial Process Air Heaters
- Power consumption: 4 kW to 16 kW
- Heating power: steplessly adjustable with potentiometer
- Protection against heating element and device overheating with alarm output
- Max. air outlet temperature: 650ºC
- Max. air inlet temperature: 65ºC
- Max. ambient temperature: 65ºC
- Max. inlet pressure: 100 kPa
- Weight: 3.15 kg (short), 3.65 kg (long)
- Min. air flow: (see graph)
- Compatible Blowers:
- Leister ROBUST Industrial Process Blower
- Leister SILENCE Industrial Process Blower
- Leister ASO Industrial Process Blower
- Leister MONO System (Built in Airflow Control)
LHS 61S / 61L Temperature Air Flow Characteristics:-
LHS61 Installation Dimensions:-
