Leister CHINOOK Air Recirculation Industrial Process Blower 3x230V/400V 750W 177.073
The CHINOOK is a powerful high pressure recirculation blower specifically designed to recirculate hot air at temperatures of up to 350°C and operate at a very quiet 58 dB(A). It's a durable and maintenance-free recirculation blower delivering optimum and effortless performance in ambient temperatures up to 60°C. Capable of delivering air flow (20°C) of 1,640 l/min at 50Hz with a static pressure of 14.6kPa. It is also the first Leister air blower to operate at both 230V & 400V (50Hz) or 275V & 480V (60Hz).
Description
Leister CHINOOK High Pressure Industrial Process Recirculation Blower 177.073
Specifically designed for hot-air recycling to significantly reduce operating and energy costs, the RBR recirculation blower can withstand air inlet temperatures of up to 350°C. By combining double flange air heaters (type DF-R & SF-R) and other accessories, hot air systems can be constructed that recycle the hot air from the process which saves significant amounts of energy.
Highly durable and designed to run 24/7, this maintenance-free blower is very quiet during operation at 58 dB(A), and capable of delivering air flow (20°C) of 1,640l/min at 50Hz with a high static pressure of 14.6kPa. and delivers optimum and effortless performance in ambient temperatures up to 60°C.
The CHINOOK can also be combined with a frequency controller to clock the Hertz as low as 20Hz and up to 60Hz to match the requirements of the heat process. This is the first blower from Leister capable of running at 230V or 400V (275V/480V @ 60Hz) from a single unit.
Specification
Technical Data: Leister CHINOOK Air Recirculation Industrial Process Blower 3x230/400V 750W 177.073
- Design: side channel blower
- Frequency: 50Hz or 60Hz (down to 20Hz with FC)
- Voltage: 230v or 400v (50Hz) / 275v or 480v @ 60Hz
- Air flow (20 °C ) l/min: 1,640 @ 50Hz, 1,950 @ 60Hz
- Static pressure: 14.65 kPa @ 50Hz, 15.1 kPa @ 60Hz
- Max. ambient temperature: 60°C
- Max. air inlet temperature: 350°C
- Noise emission level: <58 dB(A)
- Environmental protection (IEC 60529): IP 55
- Outside diameter air inlet: ∅ 38mm
- Outside diameter air outlet: ∅ 38mm
- Weight: 13.0 kg
- Comes with or without cable
- Can be controlled with Frequency Controllers FC 550 or FC 2200

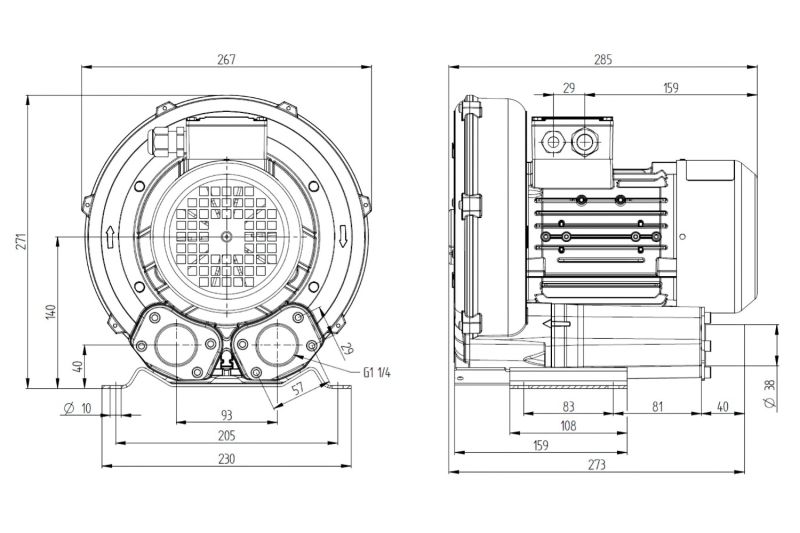

CHINOOK Process Blower Installation Dimensions:-
