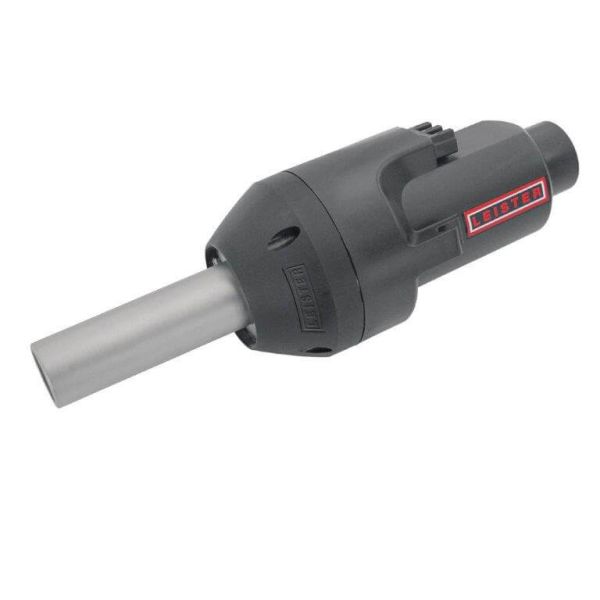

Leister IGNITER BM4 230v 1600W 139.231 for biomass boilers

SKU:
139.231/L0

IGNITER BM4 230v 1600W 139.231 for biomass boilers (wood pellet boiler and wood chip boilers). Simple end-on connector interface design for easy installation and removal into biomass boilers, with overheat protection and durable performance, as you'd expect from Leister.

Estimated Delivery: Next Working Day (order before 3pm)
£299.65 £249.71

Description

IGNITER BM4 230v 1600W 139.231 for Wood Pellet Boilers and Wood Chip Boilers

The new IGNITER ignition blower from Leister has been specially developed for installation into wood pellet boilers and wood chip boilers. The IGNITER BM4 with up to 1.6 kW has what it takes to operate flawlessly time after time. Simple interface design, via end-on connector plug, for easy installation or removal into any heating boiler with trouble free operation.

It comes with a well thought out assembly support for positioning into biomass boilers, and a built in connection adapter for air hose location. Also as standard is heating element protection as well as device protection via a temperature protection circuit.

Key Features:

  • 230V
  • 1600W
  • Max. Temp 600°C
  • Length 283mm
  • Device width/aperture 90mm
  • Easy access connection plug for easy removal/installation
  • New assembly support for easy positioning in the furnace
  • Connection adapter for air hose located directly on device with inner 1" thread
  • Heating element protection with phototransistor and device protection via temperature protection circuit

Specification

Technical Data: Leister IGNITER BM4 230v 1600W 139.231 for biomass boilers

  • Voltage V: 230
  • Frequency Hz: 50-60
  • Power rating kW: 1.6
  • Min. air volume l/min @ 20°C: 230
  • Air pressure kPa: 2.48
  • Max temperature °C: 600
  • Noise emission level dB (A): 68
  • Aperture ∅: 90mm
  • Weight kg: 1.0 (without power supply cord) 1.2
  • Length 283mm

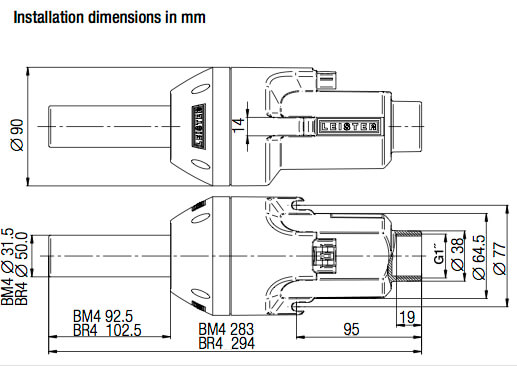

IGNITER BM4 & BR4 Installation Dimensions:

IGNITER BM4 & BR4 Installation Dimensions
