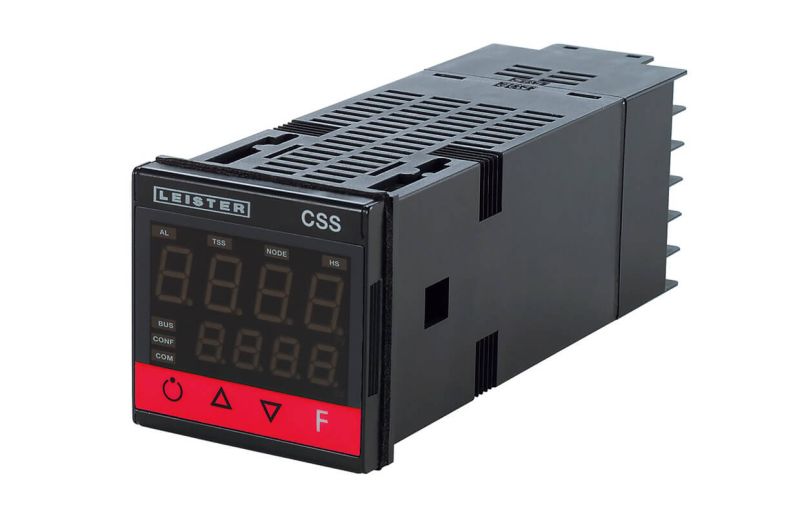

Leister CSS Temperature Controller 123.039
Leister CSS Controller, a universally deployable temperature regulator unit for MISTRAL SYSTEM, HOTWIND SYSTEM and VULCAN SYSTEM hot air blowers as well as LHS SYSTEM and LE MINI SENSOR air heaters. With 2 independently configurable alarms and 0.2% temperatrure accuracy this regulator has a digital display allowing fast set up and providing precision regulation.
Description
Leister CSS Temperature Controller 123.039
The Leister CSS Controller is the ready-wired plug-and-play solution for regulating Leister's range of hot air blowers, including MISTRAL SYSTEM, HOTWIND SYSTEM and VULCAN SYSTEM, as well as the LHS SYSTEM and LE MINI SENSOR range of air heaters. With the connector and all the necessary screw connectors to set-up a closed-loop servo system within the shortest space of time.
Leister temperature regulators allow the air temperature of air heaters and hot air blowers to be precisely regulated. These regulatoirs are perfectly matched to our Leister devices and facilitiate easy and fast installation. They include a digital display for target/actual temperature and 2 freely programmable alarm outputs.
Key feartures:-
- Suitable for Leister MISTRAL SYSTEM, HOTWIND SYSTEM and VULCAN SYSTEM hot air blowers and LHS SYSTEM and LE MINI SENSOR air heaters
- PID regulation type
- Ready to use with preconfigured parameter set
- Configuration with PC and programming cable
- Highly accurate
- Alarm output
Specification
Technical Data for CSS Controller
Suitable for: MISTRAL SYSTEM, HOTWIND SYSTEM amd VULCAN SYSTEM hot air blowers and LHS SYSTEM, LE MINI SENSOR air heaters. Universally deployable temperature regulator
Regulation type: PID
Ready to use with preconfigured parameter set: Y for LHS SYSTEM, MISTRAL SYSTEM, HOTWIND SYSTEM, VULCAN SYSTEM
Configuration with PC and programming cable: Y
Accuracy: > 0.2 % of scale value at 25 °C
Switchover C° / F°: Configurable via keypad
Temperature sensor / input: Type K, PT100, screw connectors
Alarm output: 2 independently configurable alarms. Output at 2 floating relay contacts. Screw connector
Connection to air heater: Screw connector
Voltage: 100 – 240 VAC, max. 8 VA
Mains connection lead: without lead, screw connectors
Mechanics: Regulator for front panel integration, with cut-out 45 × 45 mm
Dimensions (L × W × H): 109 × 48 × 48 mm
Weight kg: 0.20
Conformity mark: CE
