Leister UNIPLAN 300 Thermal Bonding Kits for Hem Welds 18/20/22mm in Sun Shade & Awning Material
Leister UNIPLAN 300 Thermal Bonding Kits for hem welds in sun shade and awning material. Hem welding kits are available in 18, 20 and 22mm widths, turning the UNIPLAN 300 into an efficient and cost effective hem bonding machine for acrylic material like sunshades and awnings.
Description

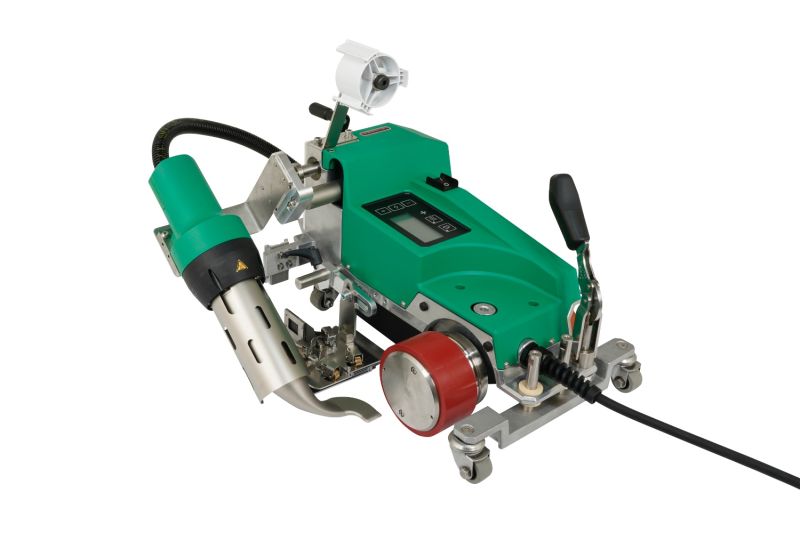

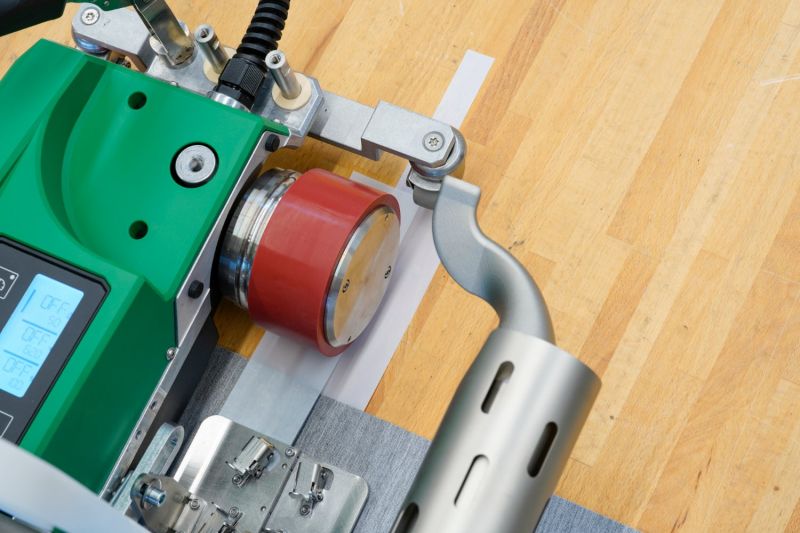

The new Hem Thermal Bonding kits from Leister allow the UNIPLAN 300 to become an efficient and cost effective hem bonding machine for acrylic material like sunshades and awnings.
The advantages of bonding acrylic material instead of sewing includes a significantly higher tensile strength, retained watertightness as good as the original fabric (the material isn't punctured to insert any thread) and elasticity of the seam remains similar to the original material. In addition a bonded hem seam retains a higher UV resistance, has less wrinkles caused by rolling of the awning and there is no friction between yarn and the acrylic material.
The new hem thermal bonding kits come in 3 widths: 18mm, 20mm and 22mm.
Each kit comes complete with the following items:-

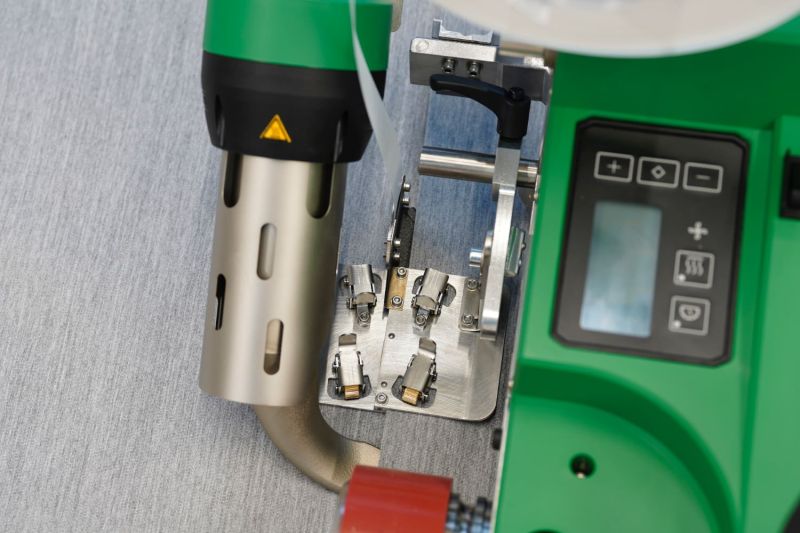

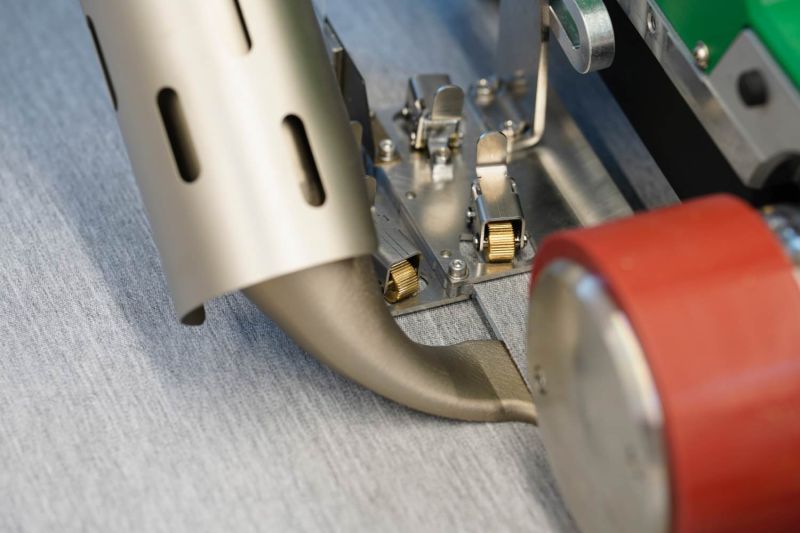

- - Bonding Nozzle 174.901
- - Bonding Nozzle holder

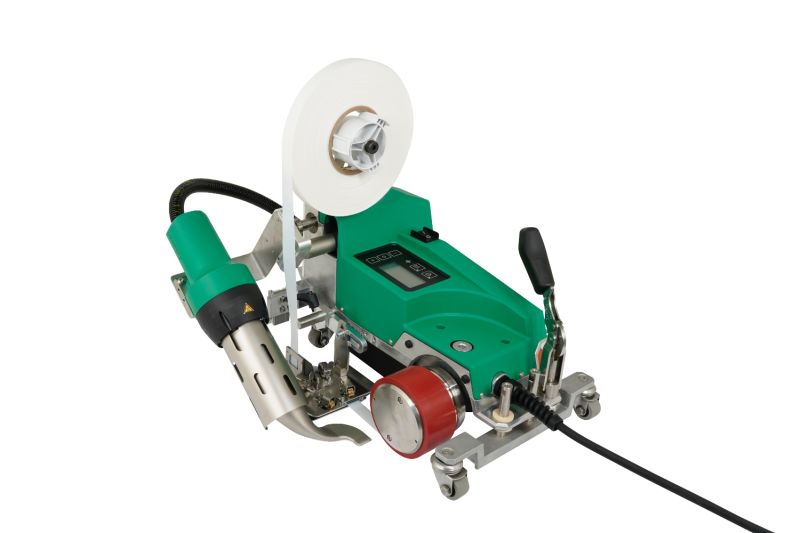

- - Tape de-reeler
- - Hem guide in 18mm (175.330), 20mm (175.329) or 22mm (175.328)(depending on the kit option selected)

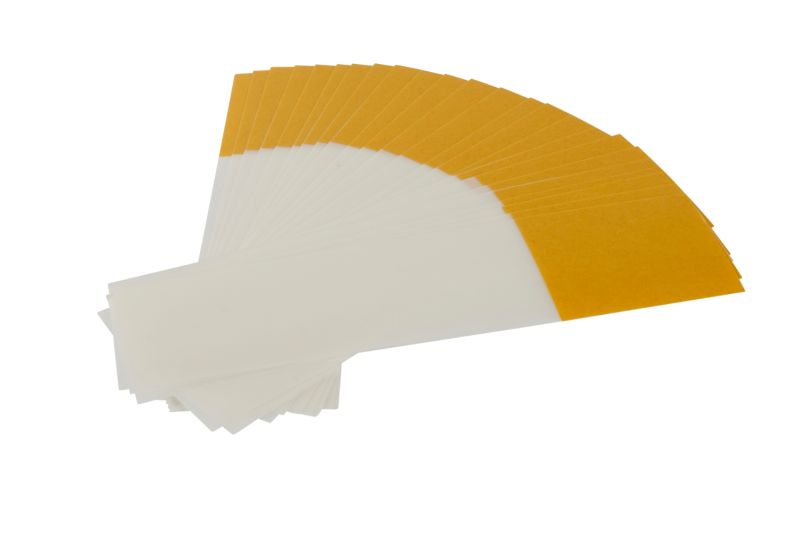

- - Stick and weld strap (24 pcs) 175.337
Once you have purchased one of the hem kits, additional hem bonding guides can be purchased to increase the options for hem widths e.g. once you have the 18mm kit you can purchase the additional guides for the 20mm and 22mm which will work with the original kit system.
The Thermal Bonding Tape suppliers are Gluetex in Germany and Trivantage in the US. There are 3 main types of bonding tape:-
- - Single layer adhesive tape - NOT SUITABLE for use with the thermal bonding kit
- - Non-woven reinforced adhesive tape - Highly suitable for use with the thermal bonding kit
- - Glassfibre reinforced adhesive tape - Suitable for use with the thermal bonding kit
The recommended settings when using the Thermal Bonding Kit are as follows: Speed should be 4 - 5.5m/min, Temperature should be 480-520°C and the Airflow should be set to 100 %.
