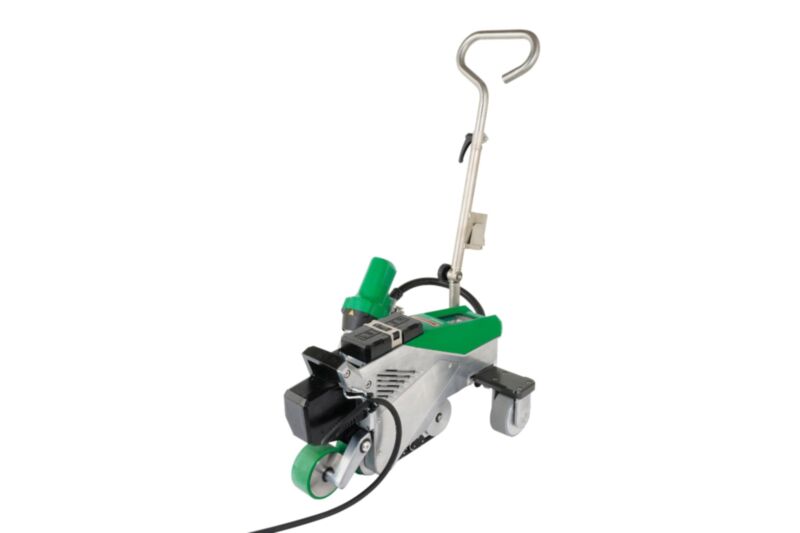

Leister VARIMAT 300 230V 3680W 173.186
Leister VARIMAT 300 173.186 fully automated welding machine. Welding speeds of up to 10m/min. Highest contact pressure in the market ensures consistent, high quality welds for thermo plastic sealing membranes or bitumen mambranes. Improved tracking accuracy thanks to a variable transport axis. New nozzle swivel-in mechanism for fast insertion. Wide range of thermoplastic membrane coverage TPO, PVC, TPE, ECB, EPDM, EVA, PIB, TPU, FPO, PO and PVC-P.
Description
VARIMAT 300 Automatic Roof Welding Machine from Leister 173.186
The Leister VARIMAT 300 automatic welding machine, like its big brothers the VARIMAT 700 and 500, has a raft of new innovations and features keeping at the top of the market for professoinal welding applications.

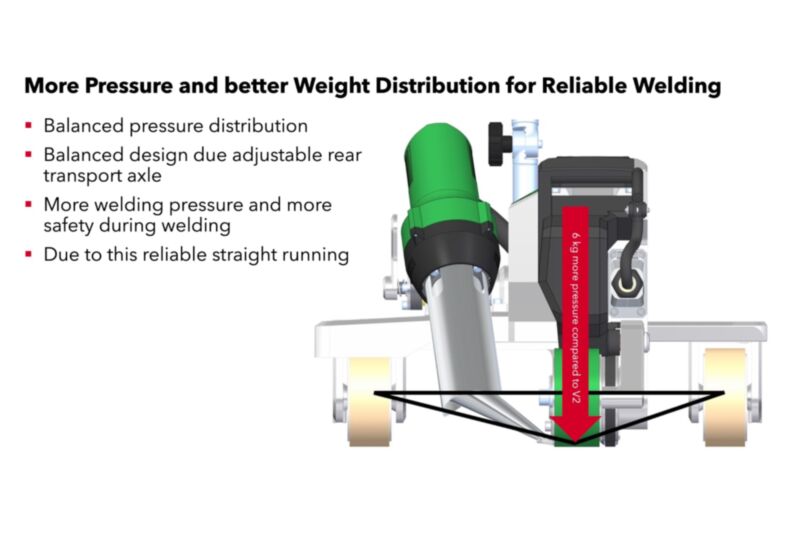

The new design features include an significantly higher contact pressure (3kg more than the nearest competitor), ensuring consistently improved process reliability when welding thermoplastic membranes on applications such as flat roofs, swimming pool liners and waterproof covers and also bitumen membranes on flat roofs. The range of thermoplastic material that can now be welded includes TPO, PVC, TPE, ECB, EPDM, EVA, PIB, TPU, FPO, PO and PVC-P.

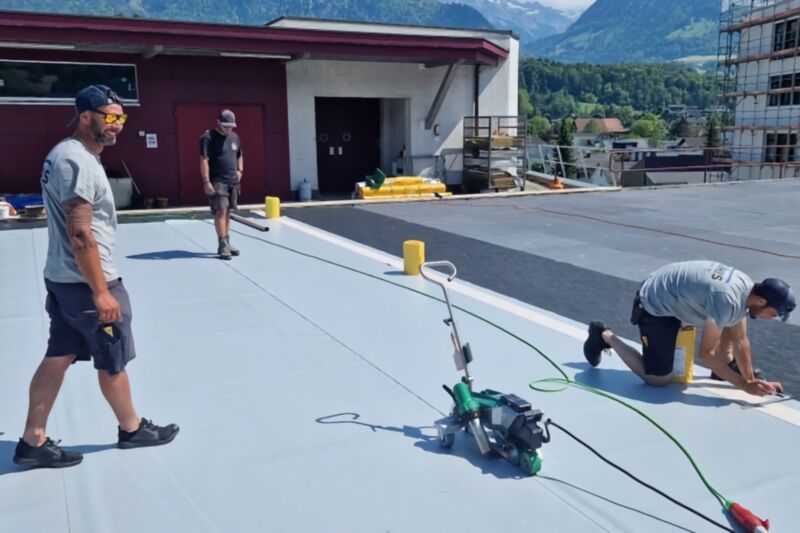

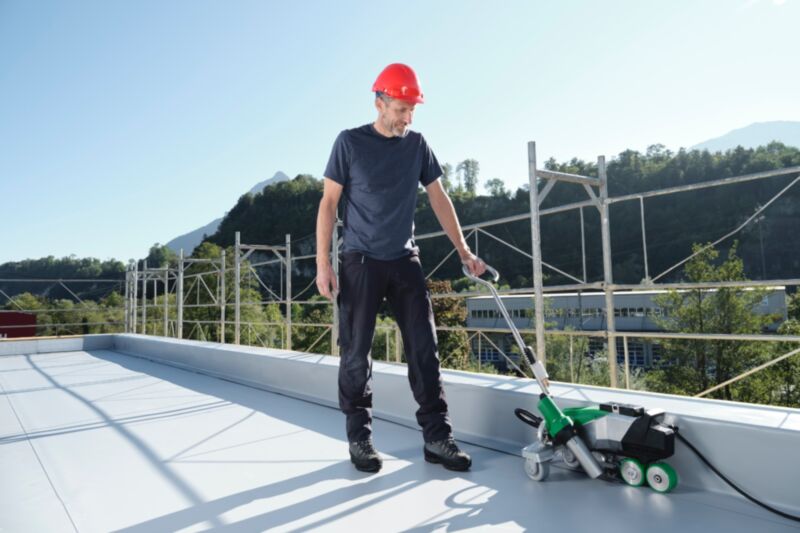

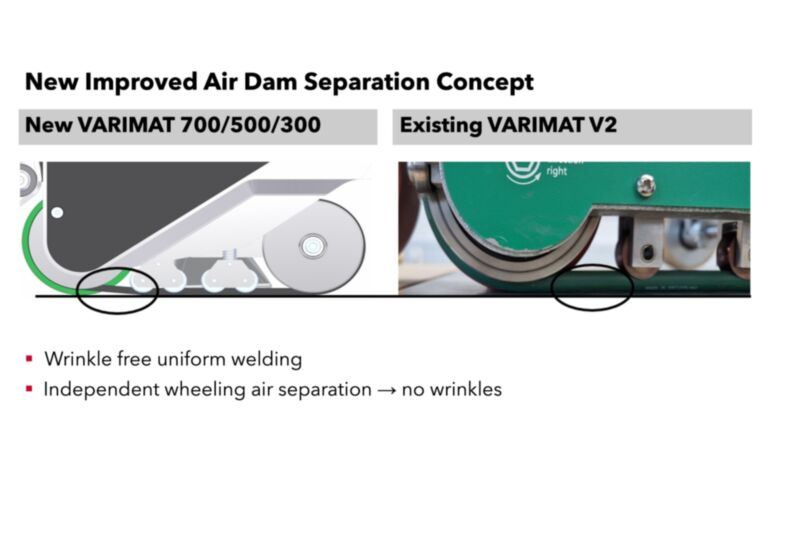

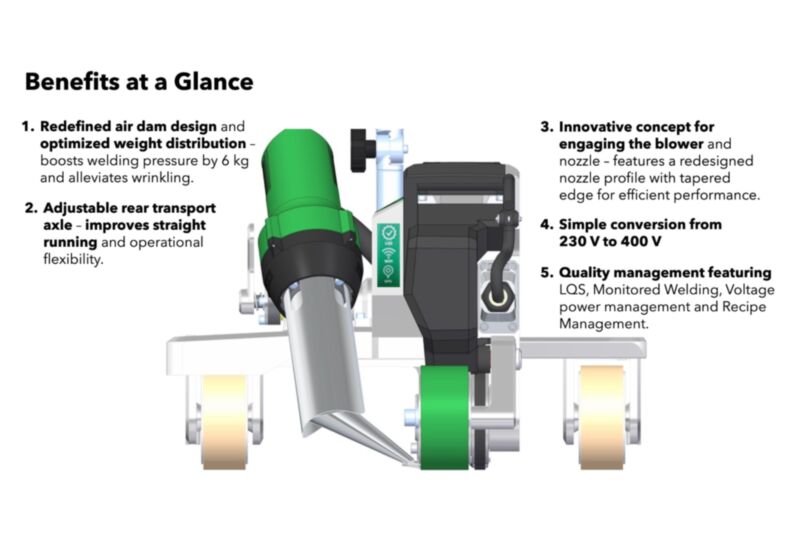

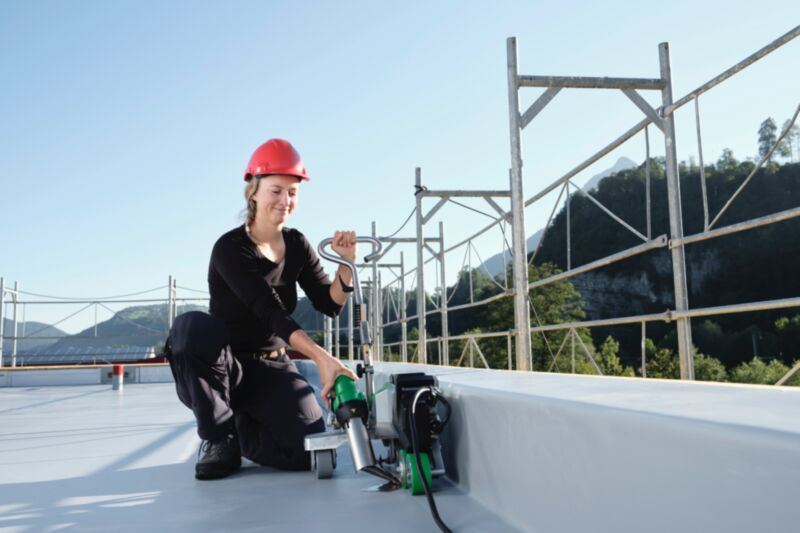

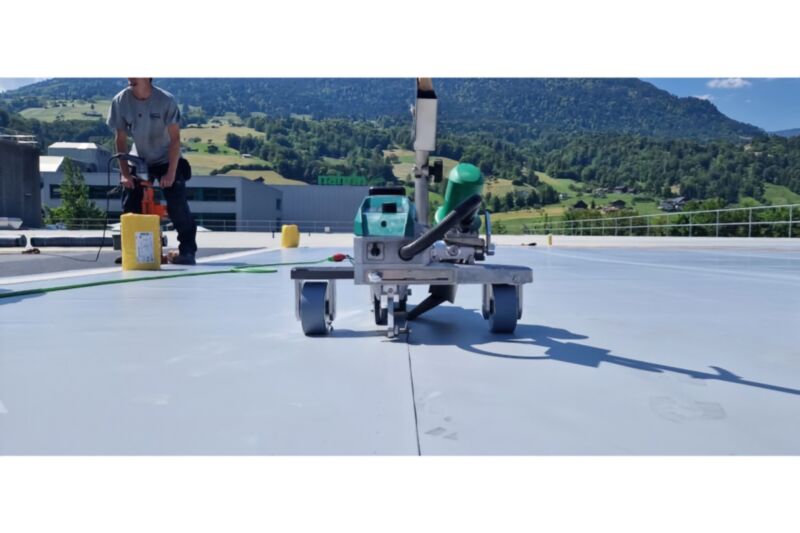

Highlights of the new design features include a redesigned and innovative swivel-in mechanism enabling the nozzle to be effortlessly and quickly inserted or removed from the overlap for faster welding and less opportunity for burning. Like the VARIMAT 700 and 500, the VARIMAT 300 has an adjustable rear transport axle provides for balanced handling and allows the machine to track straight without correction. Depending on the application, the VARIMAT 300 can be adjusted to accommodate either field seam or close edge detail welding. A new air dam design featuring a sophisticated air partition concept, now separated from the pressure roller, produces a wrinkle free uniform weld and ensures an attractive seam appearance while optimising air flow.
The VARIMAT 300 is not a fully digital closed loop design like its bigger brothers, but does allow for air volume and temperature adjustment. These will have to be monitored and adjusted manually to suit the working conditions on site.

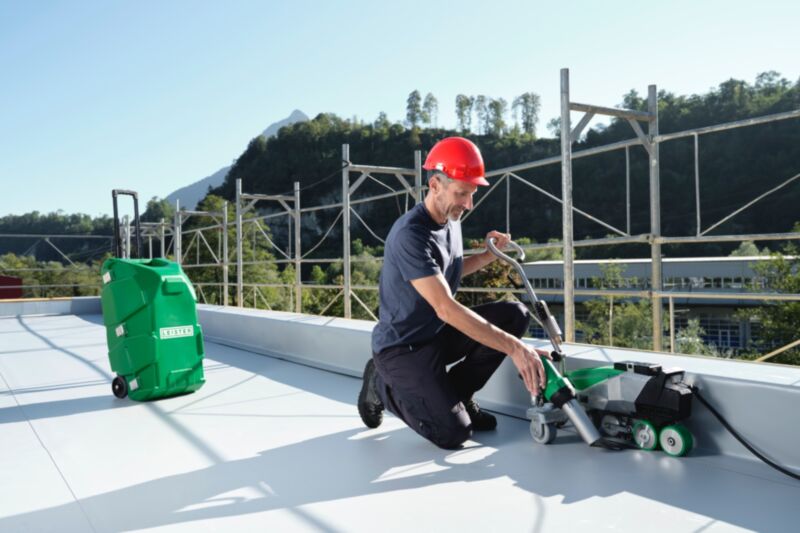

Delivered with an all new robust rolling transport case, the VARIMAT 300 can be transported easily, ergonomically, and safely.
To accommodate individual customer requirements, the VARIMAT is available in two additional versions: VARIMAT 700 and VARIMAT 500.
Technical Data:-
Voltage: 230 V
Frequency: 50/60 Hz
Power: 3680 W
Speed: 1.0 - 10.0 m/min
Temperature: 100 - 620 °C
Air volume adjustable: Yes
Welding nozzle / seam width: 40 mm
Welding materials: TPO, PVC, TPE, ECB, EPDM, EVA, PIB, TPU, FPO, PO, PVC-P
LQS: No
Brushless blower motor: No
Length: 605.0 mm
Width: 335.0 mm
Height: 373.0 mm
Weight: 37.5 kg
Plug: with UK 16A plug
Approvals: CE , CB Certification , UKCA
Protection class: I
Country of origin: CH
Features
| Hide Price | Hide |
| Tool Information | Technical Data
|
Specification
Technical Data
- Voltage: 230 V
- Frequency: 50/60 Hz
- Power: 3680 W
- Speed: 1.0 - 10.0 m/min
- Temperature: 100 - 620 °C
- Air volume adjustable: Yes
- Welding nozzle / seam width: 40 mm
- Welding materials: TPO , PVC , TPE , ECB , EPDM , EVA , PIB , TPU , FPO , PO , PVC-P
- Leister Quality System (LQS): No
- Brushless blower motor: No
- Length: 605.0 mm
- Width: 335.0 mm
- Height: 373.0 mm
- Weight: 37.5 kg
- Plug: with UK 16A plug
- Approvals: CE , CB Certification , UKCA
- Protection class: I
- Country of origin: CH
