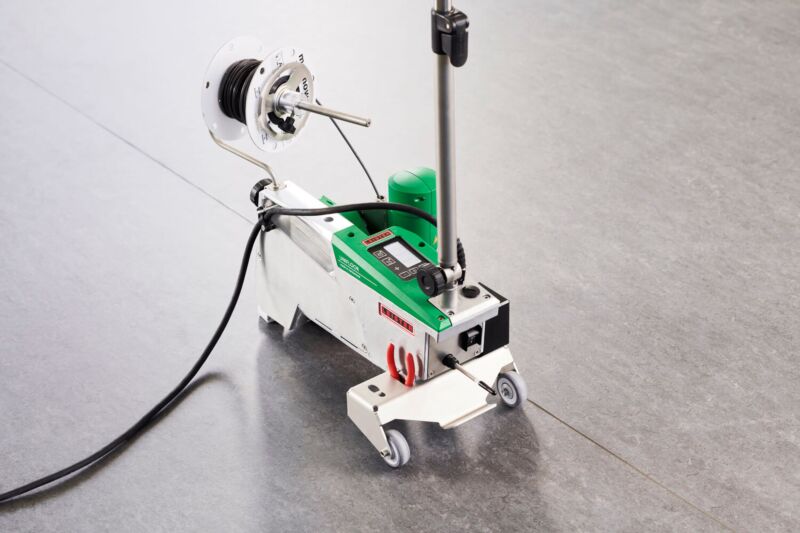

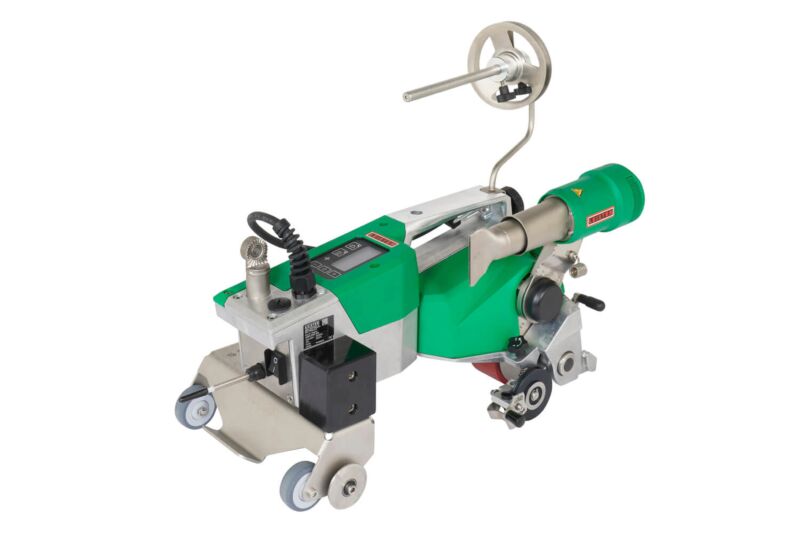

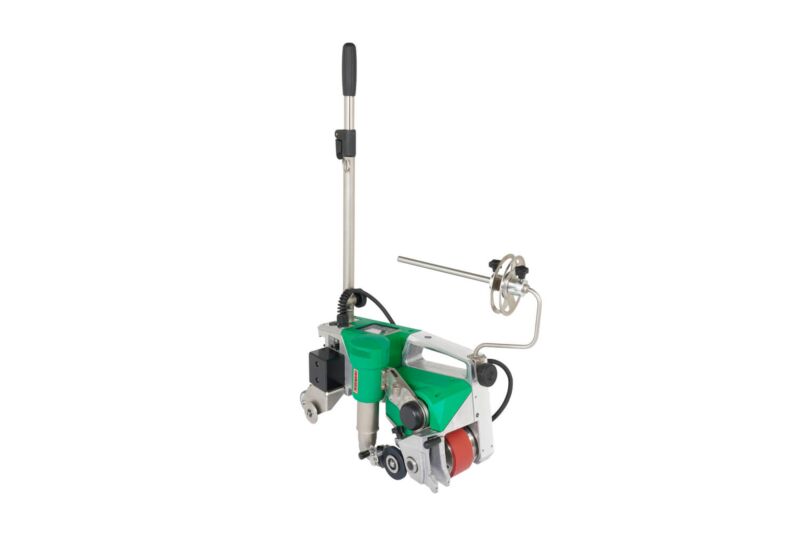

Leister UNIFLOOR 500 230v Automatic Safety/Vinyl Floor Welder 169.613

SKU:
169.613

The all new UNIFLOOR 500 230v 169.613 is a fully automatic vinyl floor welder suitable for welding joints in resilient plastic floor coverings such as PVC, CV, PUR, antistatic ESD floors, and sealing joints in natural coverings made of linoleum and rubber. Integrated Automatic Nozzle Positioning (ANP) system automatically rotates the hot air blower onto or off of the welding position by pressing the start button.



Estimated Delivery: Next Working Day (order before 3pm)
£3,885.30 £3,237.75

Description

Leister UNIFLOOR 500 230v Automatic Safety/Vinyl Floor Welder 169.613

The new UNIFLOOR 500 230v fully automatic floor welder is an updated and advanced version of the proven UNIFLOOR E/S models.

Suitable for welding joints in resilient plastic floor coverings such as PVC, CV, PUR, antistatic ESD floors, and sealing joints in natural coverings made of linoleum and rubber.

Thanks to its radical and sophisticated new design the UNIFLOOR 500 now incorporates an Automatic Nozzle Positioning (ANP) system which has been developed by Leister to automatically rotate the UNIFLOOR 500s hot air blower onto or off of the welding position by pressing the start button.

Unlike the UNIFLOOR E/S models the UNIFLOOR 500 is started by pressing a button not by moving the heat gun into position as before, hence fully automatic.

In addition, the UNIFLOOR 500 incorporates a 'Bounce Back' feature which prevents underheat welding. When the start button is pressed and the nozzle is not at the correct temperature the hot air blower will not engage fully, it will just bounce back up.

The 'Bounce Back' feature also works to prevent burning of the floor material when the machine comes to a stop. On idle, the nozzle will automatically move out and away from the floor to stop it scorching and burning the flooring material.

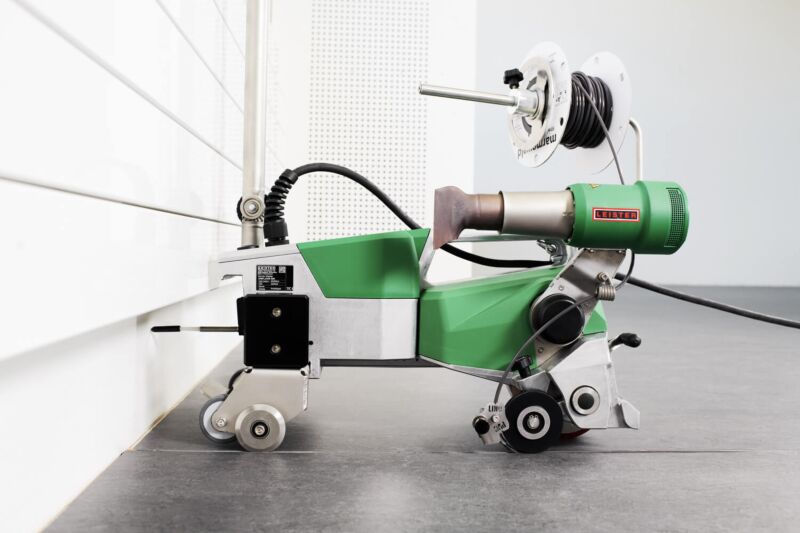

The Automatic Nozzle Positioning (ANP) system is also integrated into an auto end stop feature which is activated by a pressure switch on the front of the machine. When this pressure switch comes into contact with the end wall it automatically triggers the ANP system to rotate the heat nozzle and hot air blower out and away from the floor to prevent burning.

The all new UNIFLOOR 500 230v also includes the following key features:-

  • Wider speed range (min 0.7m/min, max 7.5m/min)
  • Brushless motors
  • Includes de reeler
  • Eco mode after 8 mins not in use

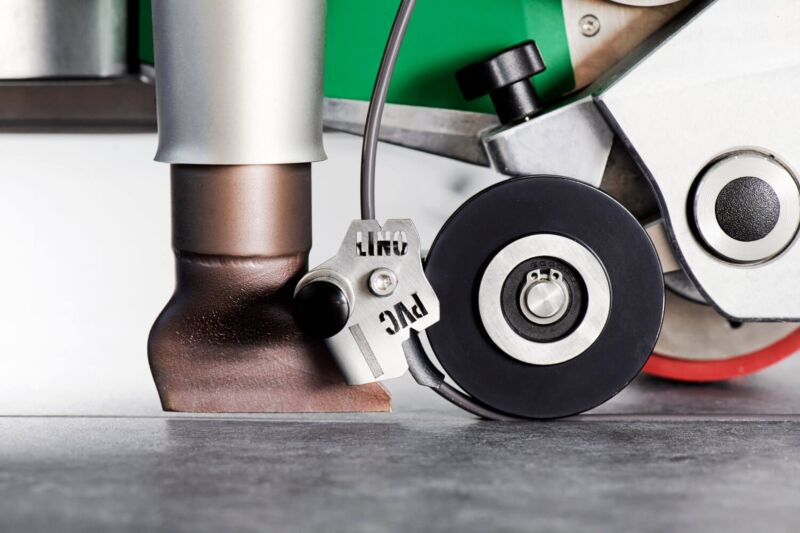

  • Built in PVC / Lino nozzle settings
  • Pressure roller lift / adjustment
  • Handle included
  • Fold-up pressure roller
  • Side cutter included with integrated holder
  • 230v Plug type: CEE3/16 blue plug



Highlights

Automatic nozzle rotation device

Thanks to Automatic Nozzle Positioning (ANP), the hot air blower can be rotated in and out automatically by pressing the start button; the hot air blower rotates out automatically on contact with any wall.

Welding rod pressure roller can be raised and locked

Thanks to the fold-up pressure roller, the welding rod can be inserted easily and without tilting the UNIFLOOR 500.

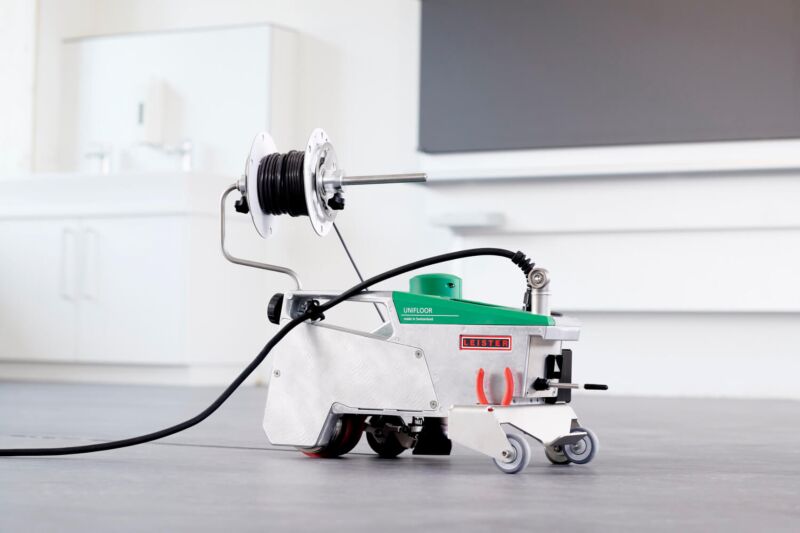

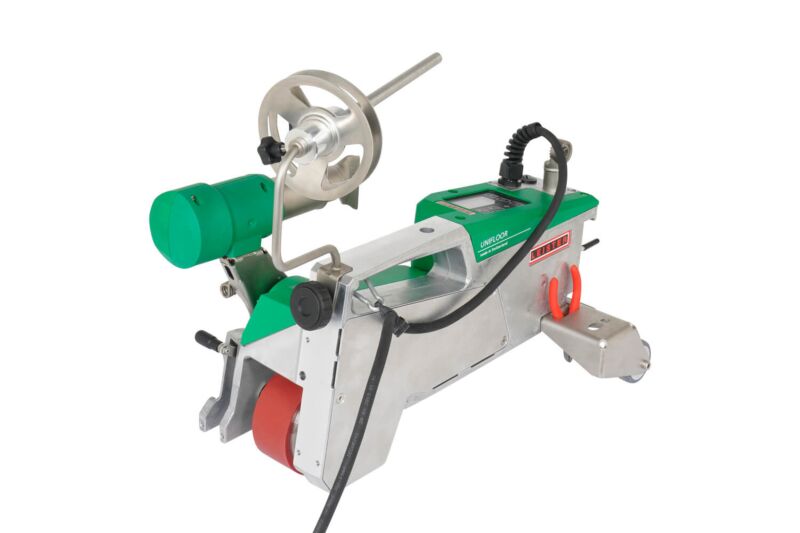

Integrated side cutter

A side cutter has been integrated into the transport axis, so users always have the right tool for cutting the welding rod.

Scope of delivery

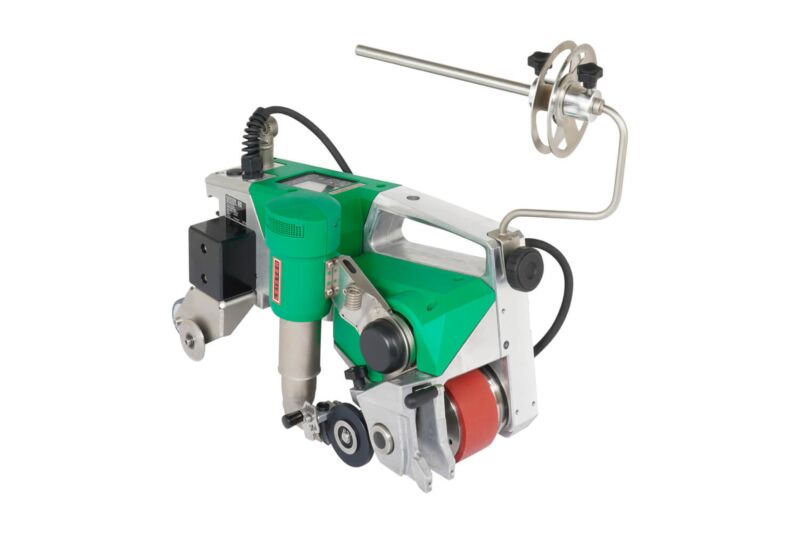

− UNIFLOOR 500 230v incl. rod de-reeler, handle & side cutter

− Nozzle positioning gauge

− Storage case

− Hex key size 3

− Torx key size 15

Specification

Leister UNIFLOOR 500 230v Automatic Safety/Vinyl Floor Welder 169.613

The all new UNIFLOOR 500 is a fully automatic digital floor welder suitable for welding joints in resilient plastic floor coverings such as PVC, CV, PUR, antistatic ESD floors, and sealing joints in natural coverings made of linoleum and rubber.

With full digital controls and digital display for all the important welding parameters.

Technical data: UNIFLOOR 500 230v

Voltage V: 230

Power W: 2300

Material: PVC, CV, PUR, antistatic ESD floors, linoleum, rubber and modified thermoplastics

Air flow range %: 45-100

Temperature: 100 to 560ºC

Speed: 0.7 - 7.5 m/min

Size (L × W × H) mm: 562 × 289 × 440

Weight: 15.5 kg (with 3m cable)

Plug type: CEE3/16 blue plug



Scope of delivery

− UNIFLOOR 500 230v incl. rod de-reeler, handle & side cutter

− Nozzle positioning gauge

− Storage case

− Hex key size 3

− Torx key size 15
