WIDOS Inside Debeader 160/300/500 Unheated
WIDOS inside debeaders allow the easy removal of the inside weld seam of PE and PP pipes up to 20m deep.
Description
WIDOS Inside Debeaders 160, 300 or 500 Unheated
WIDOS inside debeaders allow the easy removal of the inside weld seam of PE and PP pipes.
There are 3 inside debeader models :-
- 160 catering for 90mm to 160mm inside diameter pipes
- 300 catering for 160mm to 300mm inside diameter pipes
- 500 catering for 300mm to 500mm inside diameter pipes

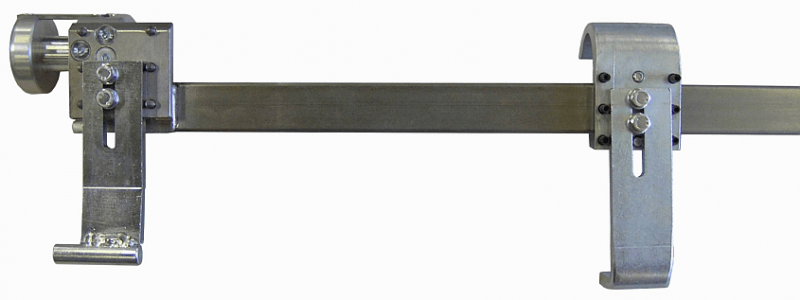

Each debeader consists of a cutting head with blade that is geometrically designed in such a way that avoids cutting into the main body of the material being debeaded.

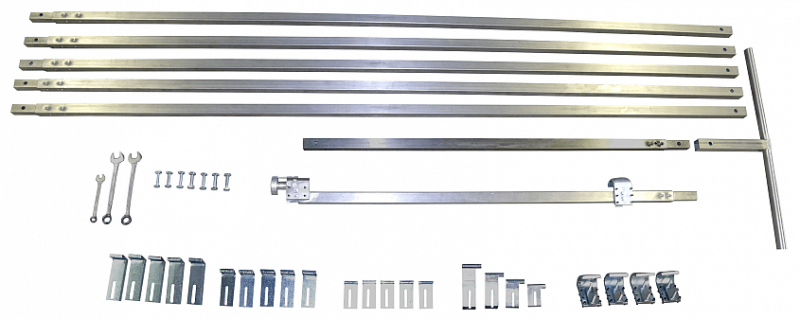

The spacers for the basic guide rod can be continuously adjusted to the respective inside diameter.
The guiding rod extends up to an insertion depth of 12 m. If necessary it can be extended up to 20 m by an extension kit.
The cutting out of the bead is carried out manually and is ideally done during the cooling period of the seam welds.
Each WIDOS inside debeader is delivered in a convenient and robust transport case.
Key Features:
- Particularly designed for the use on building sites to enable the removal of welding beads on PE and PP pipes on site.
- The bead is removed ideally during the cooling time.
Specification
Technical Data: WIDOS inside debeaders 160, 300 & 500 Unheated

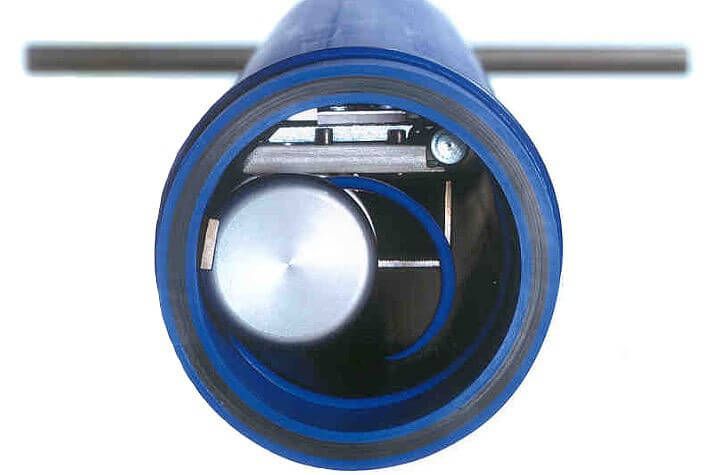

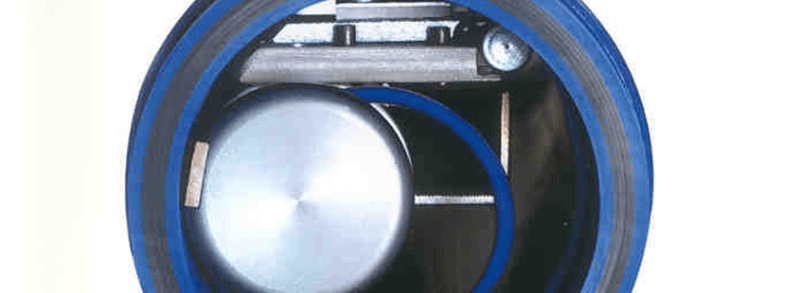

WIDOS Inside Debeader 160 (90mm to 160mm inside diameter pipes)
- Support (for cutting-head) for inside dia range approx:
- 90 - 105 mm (size 1)
- 105 - 120 mm (size 2)
- 120 - 140 mm (size 3)
- 140 - 160 mm (size 4)
- Support (for extension) for inside dia range approx:
- 90 – 115 mm (size 1)
- 115 – 135 mm (size 2)
- 135 – 160 mm (size 3)
- Weight incl. Accessories and wooden case: approx 30 kg
- Suitable for inside dia: 90 - 160 mm
- Working Length: 12m (20m with optional extension)

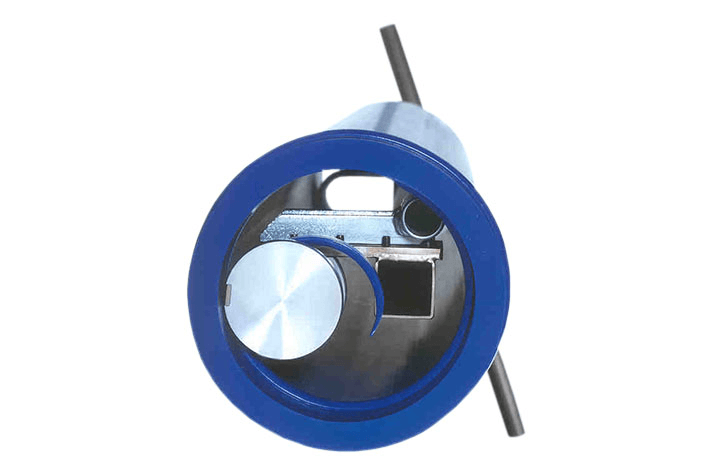

WIDOS Inside Debeader 300 (160mm to 300mm inside diameter pipes)
- Support (for cutting-head) for inside dia range approx:
- 160 - 230 mm (size 1)
- 230 - 300 mm (size 3)
- Support (for extension) for inside dia range approx:
- 160 – 230 mm (size 1)
- 230 – 300 mm (size 3)
- Weight incl. Accessories and wooden case: approx 53 kg
- Suitable for inside dia: 160 - 300 mm
- Working Length: 12m (20m with optional extension)

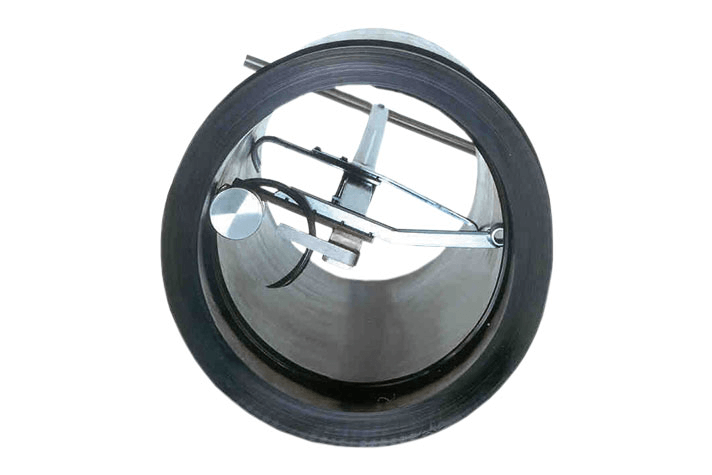

WIDOS Inside Debeader 500 (300mm to 500mm inside diameter pipes)
- Support (for cutting-head) for inside dia range approx:
-
- 300 - 400 mm (size 1)
- 400 - 500 mm (size 3)
- Support (for extension) for inside dia range approx:
-
- 300 - 400 mm (size 1)
- 400 - 500 mm (size 3)
- Weight incl. Accessories and wooden case: approx 77 kg
- Suitable for inside dia: 300 - 500 mm
- Working Length: 12m (20m with optional extension)
