WIDOS Outside Pipe Debeader (Large) 110-1000mm

Product Code:
WIDOS Outside Large Debeaders

The WIDOS large outside debeaders are ultra-light and solid devices for the safe, easy and efficient removal of the outer weld seam after butt welding of pipes 110-1000mm OD

Estimated Delivery: 7 to 10 Working Days
As low as £213.19 £177.66

Description

WIDOS Large Outside Debeaders

If you're looking for a tool for the easy, safe and efficient removal of the outer weld seam after butt welding, then the WIDOS Outside Debeader is the right tool for you.

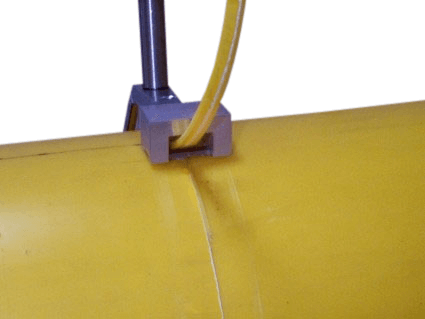

The WIDOS outside debeader is an ultra-light and solid device for the safe, easy and efficient removal of the outer weld seam after butt welding.

The compact construction of the outside debeader makes this tool ideal for processing the pipes even if the parts are still clamped into the machine. For example, it is possible to remove the outer weld seams during the cooling period. This means that the time-consuming disassembly of the clamping elements can be omitted. Can also be used afterwards with quick adjustment of the required dimensions by means of a scale.

Available sizes:

Large outside debeaders - OD 110, 160, 250, 315, 450, 630, 1000

Small outside debeaders - OD 20, 25, 32, 40, 50, 63, 75, 90 (for the small outside debeaders please see the Related Products section below)

Specification

Technical Data: WIDOS Outside Debeader

  • Sizes available:-
    • Size 1, dia = 110 – 160mm for WIDOS 4400 0.8 kg
    • Size 2, dia = 140 – 250mm for WIDOS 4600 1.0 kg
    • Size 3, dia = 180 – 315mm for WIDOS 4900 1.3 kg
    • Size 4, dia = 280 – 450mm for WIDOS 5100 2.0 kg
    • Size 6, dia = 450 – 630mm for WIDOS 6100 9.3 kg
    • Size 8, dia = 630 – 1000mm for WIDOS 10000 20.0 kg
    • Size 9, dia = 800 – 1200mm for WIDOS 12000 23,5 kg
