Leister EXAMO 100 170.539 Hand Held Test Tool for Destructive Testing of Welded Geomembrane

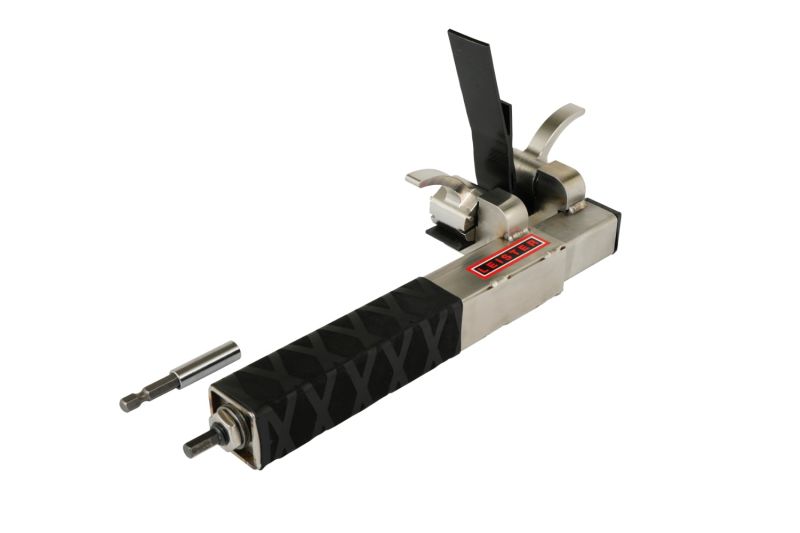

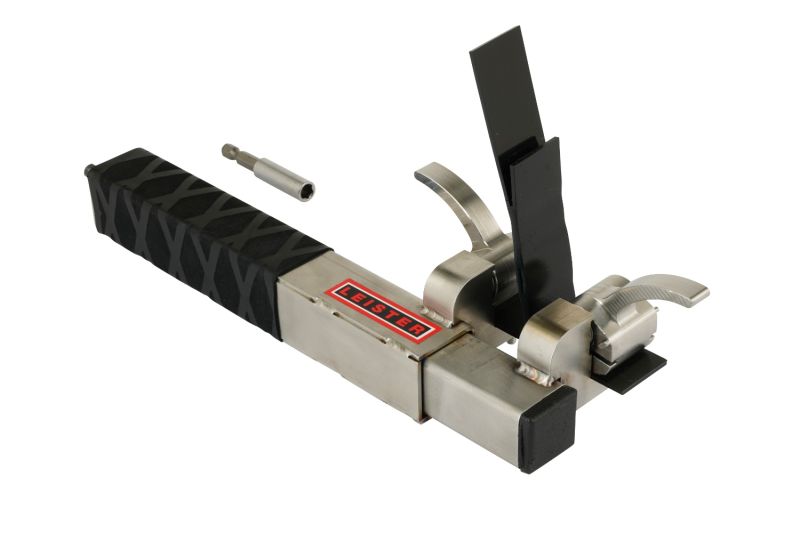

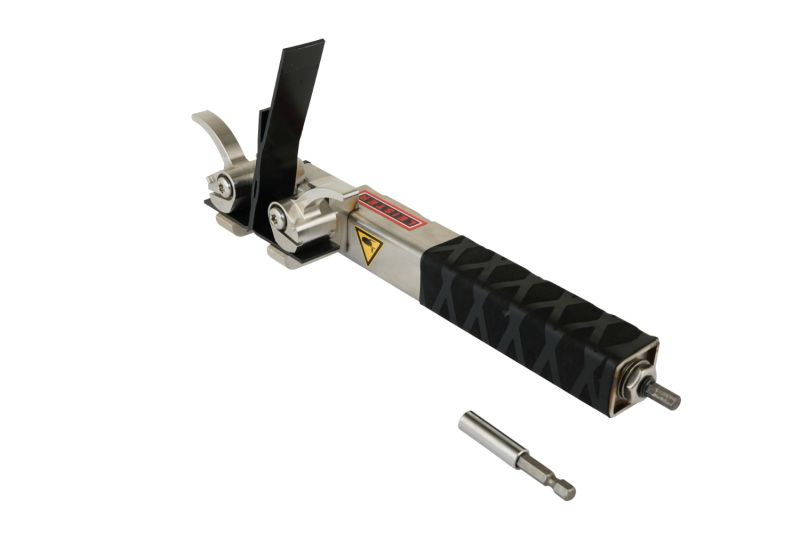

The new EXAMO 100 small, compact hand held test tool for destructive testing of welded geomembranes. With a quick clamping mechanism, the EXAMO 100 uses a cordless drill to produce a fast and reliable constant pulling speed, helping to easily monitor and improve the welding quality. Supplied with drive bit adapter and Plastic Box.
Description

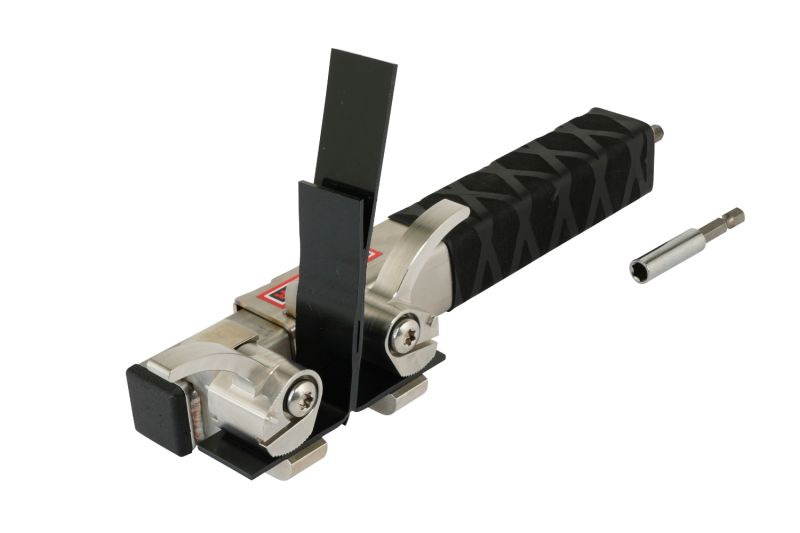

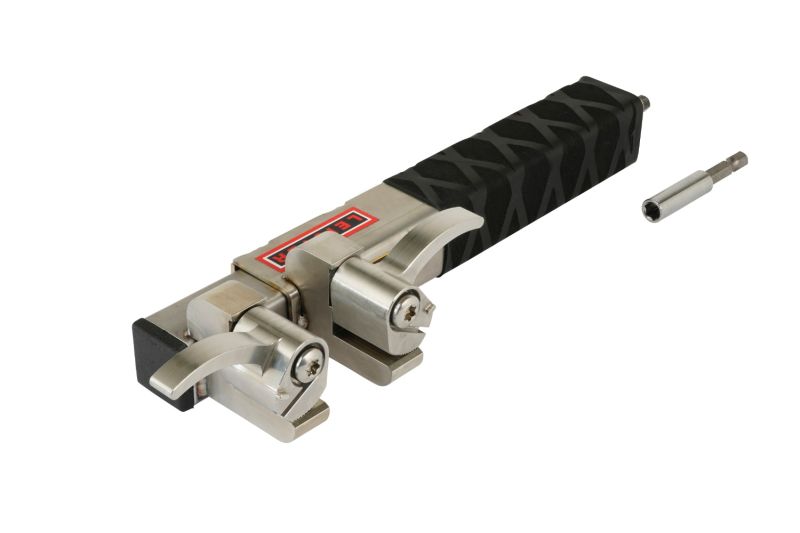

Examo 100 170.539 on-site hand held weld tensiometer seam tester

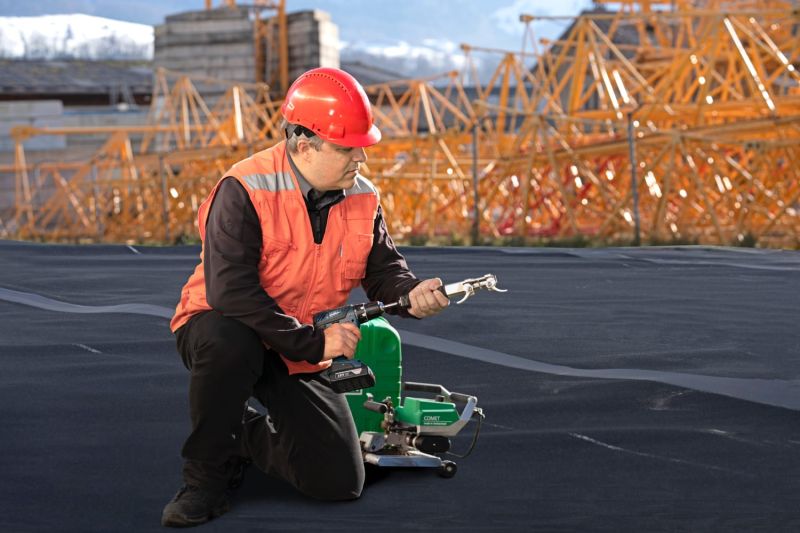

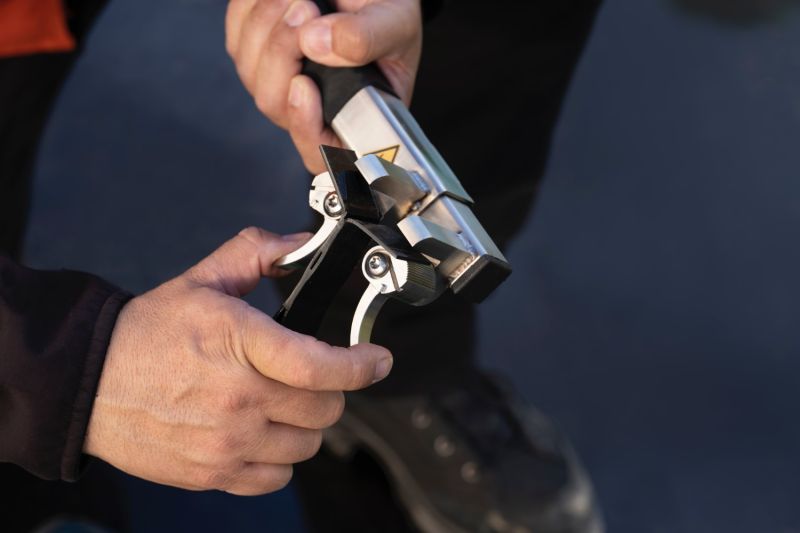

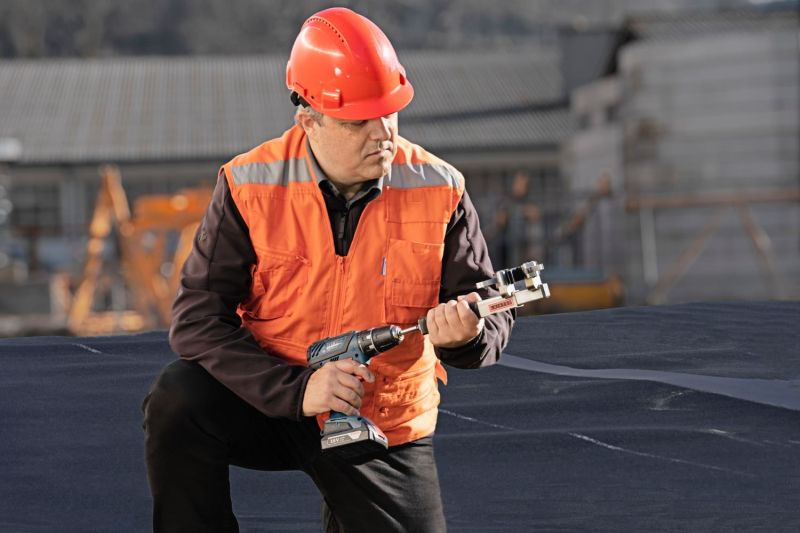

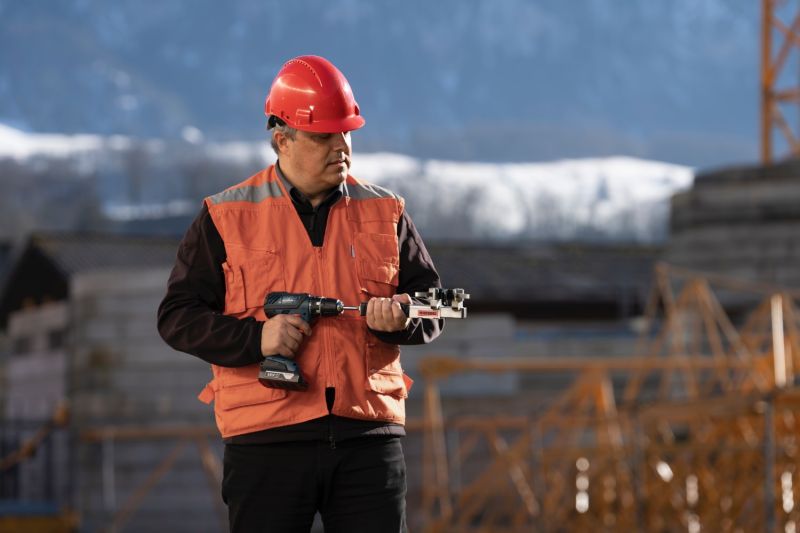

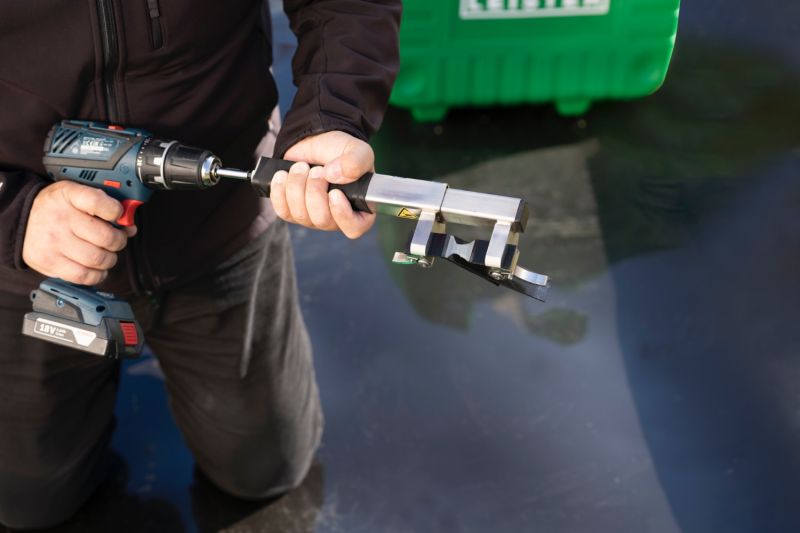

Testing the peel and shearing forces of a weld on-site is essential to be certain that the welds are up to the required strength and standards. The EXAMO 100 handheld destructive testing device from Leister will enable you to provide quick tests on site. It's small, compact footprint makes the new seam tester extremely portable and easy to use. It's also fast and reliable with a quick clamping mechanism, and with the use of a cordless drill, produces a constant pulling speed.
Key Features:
- Sample size: 10/15/20/25mm
- Testing of elongation, peak force, tear force, test speed and position
- Membrane Thickness: 0.5-3.0mm
- Membranes material: PE-HD; PE-LD
- Max. Pulling length: 100mm
- Dimensions (L × W × H): 283 × 50 × 73mm
- Weight: 1.4kg

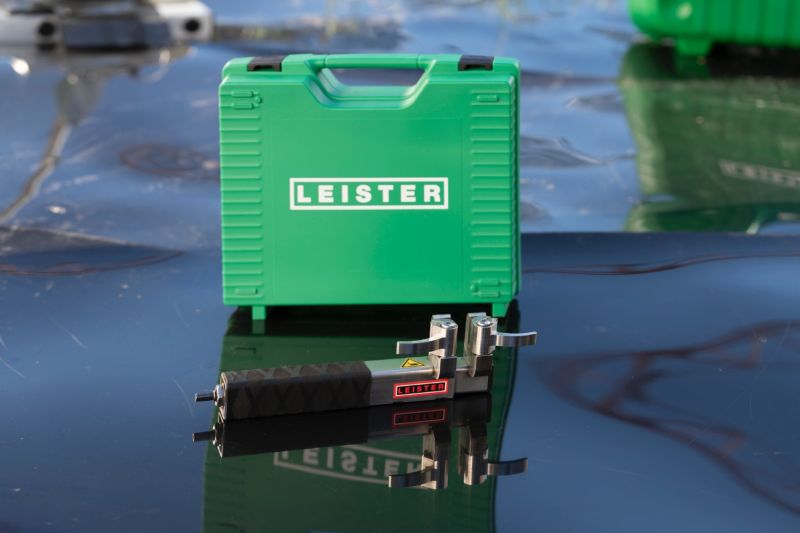

Supplied with drive bit adapter and Plastic Box
Specification
Technical data: EXAMO 100 - 107.539
Max. Pulling Length: 100mm
Sample size: 10/15/20/25mm
Membrane Material: PE-HD; PE-LD
Membrane Thickness: 0.5 - 3.0 mm
Size (L × W × H) mm: 283 × 50 × 73mm
Weight: 1.4 kg
Conformity: CE, UKCA
Country of origin: Switzerland

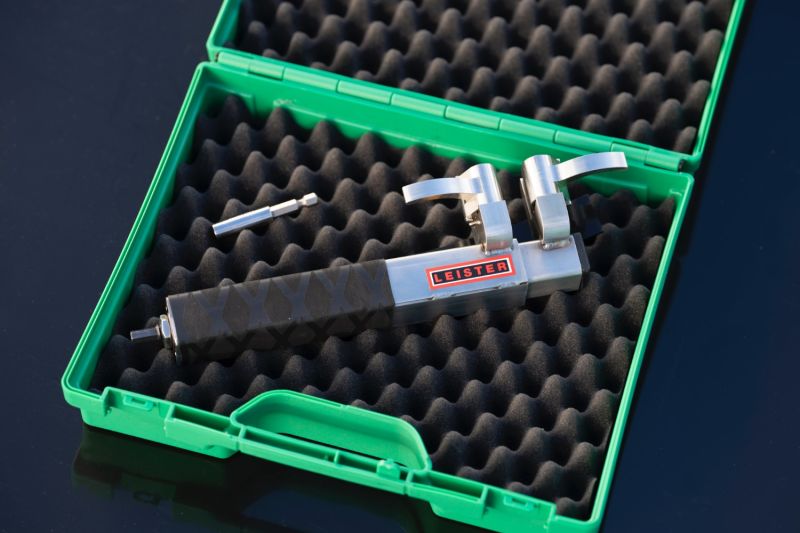

Scope of delivery: Testing device, drive bit adapter, plastic box with foam insert
