Leister FUSION 1 120V for Plastic Welding & Fabrication 162.799

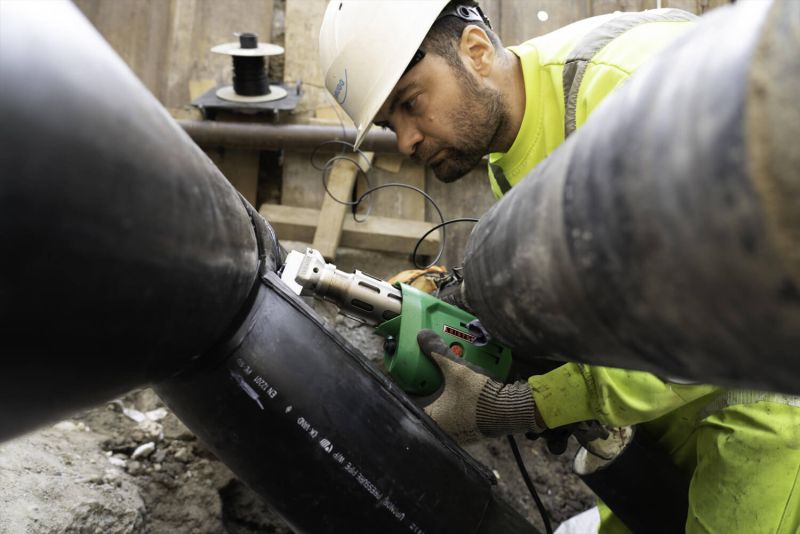

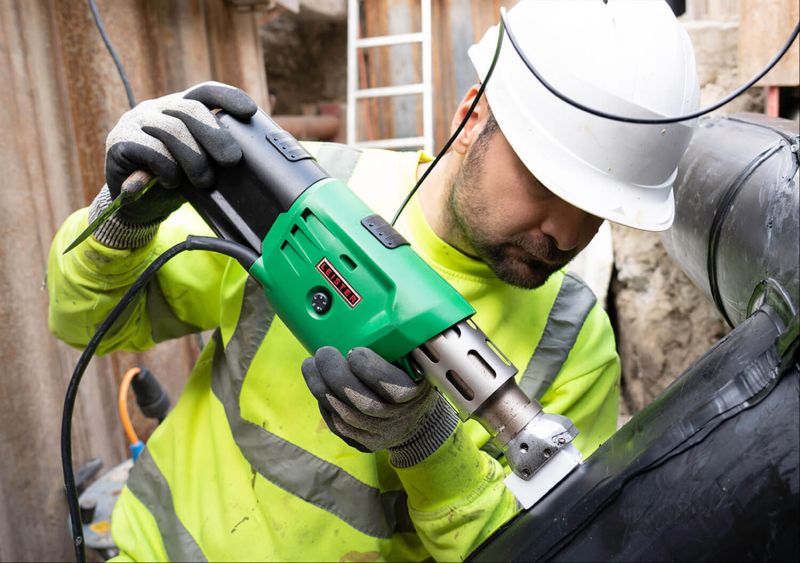

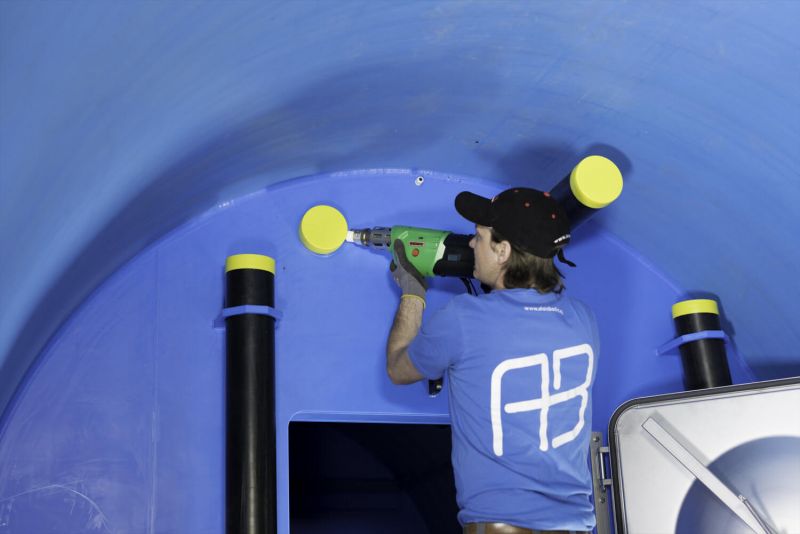

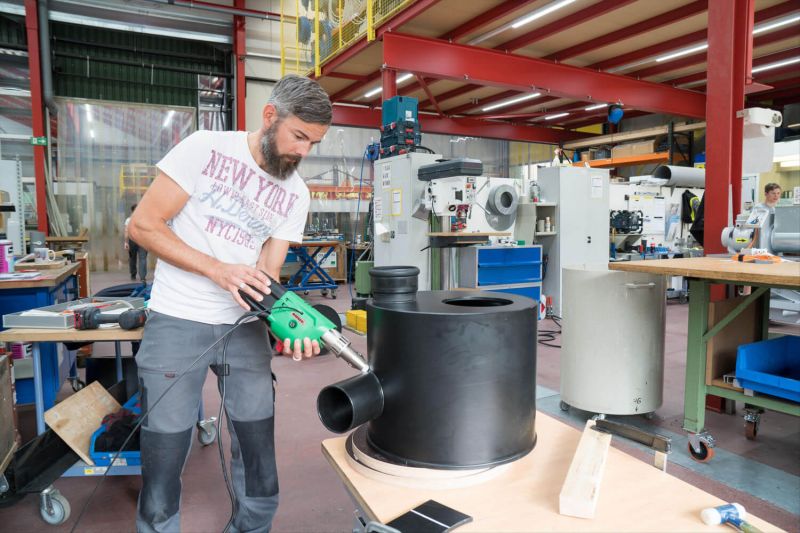

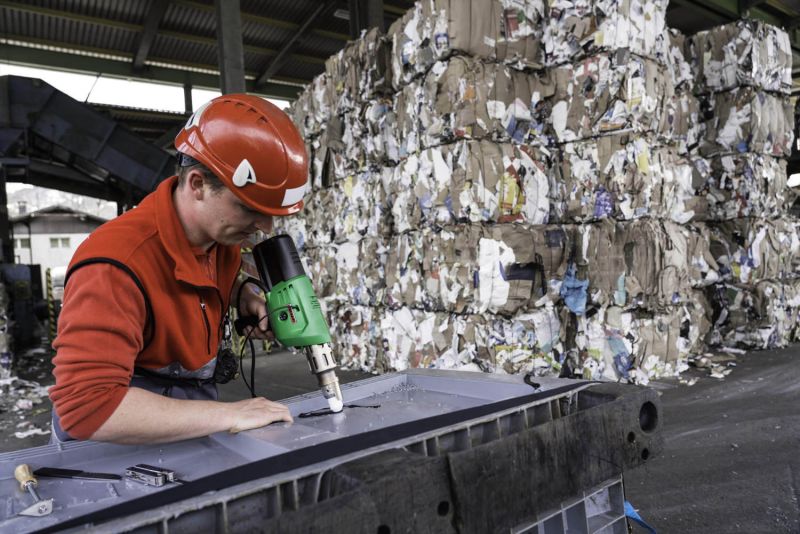

The FUSION 1 120V 162.799 is the perfect 120V LEISTER extruder for welding connection nozzles, small tanks, pipe junctions, etc. In other words, the FUSION 1 is the best choice for tight spaces.
Description
The Fusion 1 120V is Leister's Smallest, Most Maneuverable Plastic Extrusion Gun available in 110/120 voltage

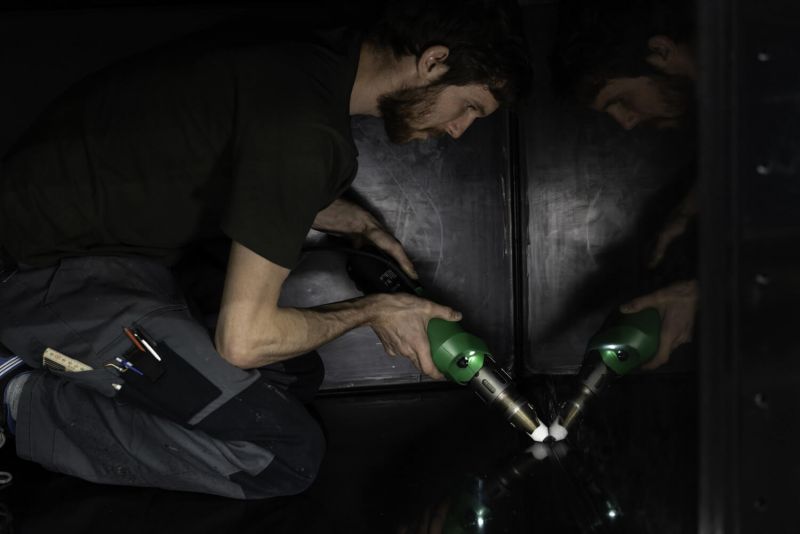

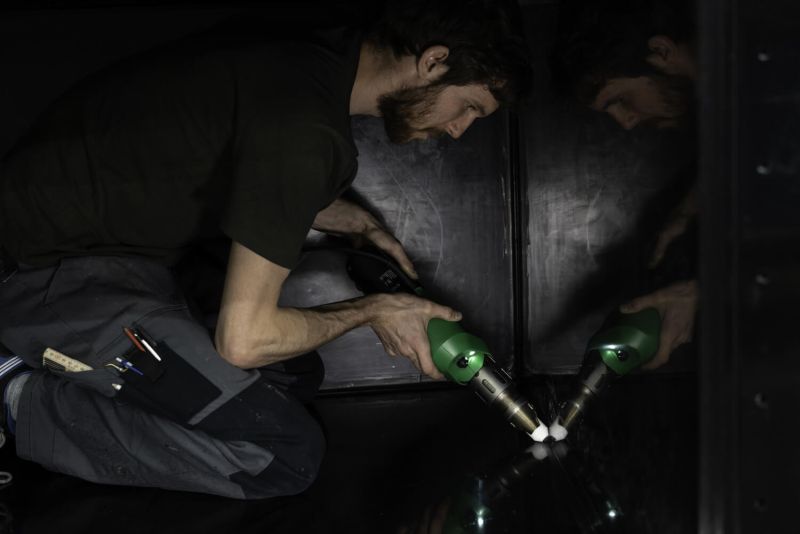

Leister's FUSION 1 120V is the perfect welding device for welding connection nozzles, small tanks, pipe junctions, etc. It's rod shaped design makes for significantly increased maneuverablility in small, tight spaces and to improve visibility in these awkard environments it includes an integrated LED light to illuminate the welding area
This ultra-compact extruder has an integrated air guide and removable handle which means that its tubular design makes it a particularly space-saving extrusion/welding device. Its double-sided wire intake makes the FUSION 1 extremely flexible and versatile when welding in tight spaces.
The FUSION 1 120V can weld PE or PP at speeds of up to 0.83kg/h at 4mm diameter (0.5kg/h at 3mm).
Unique Key Features
- High-quality welding performance

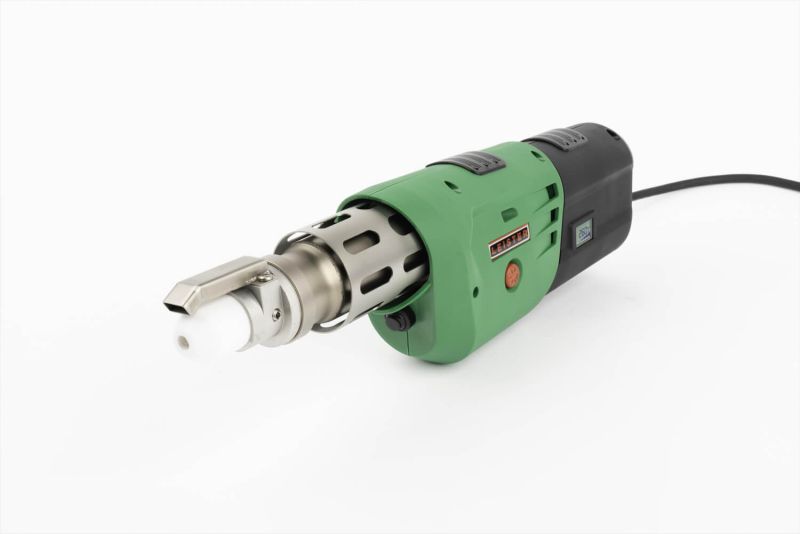

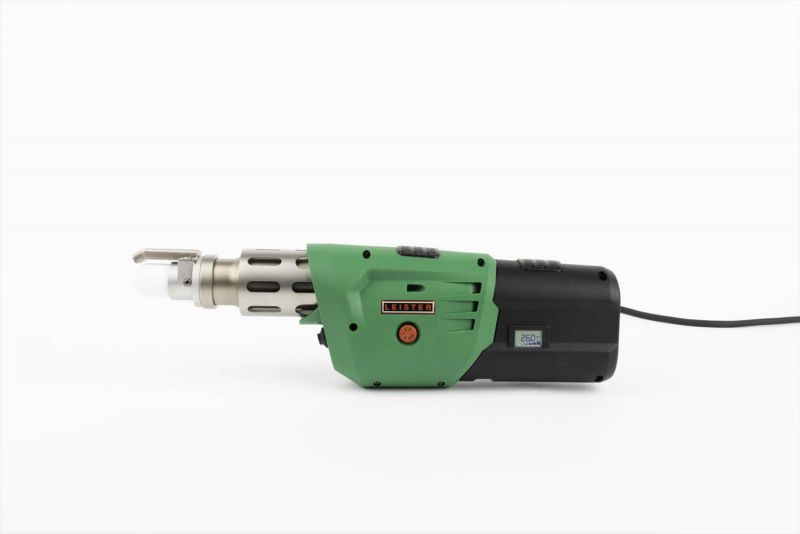

- Rod shape: Reduced design for increased maneuverability in small spaces

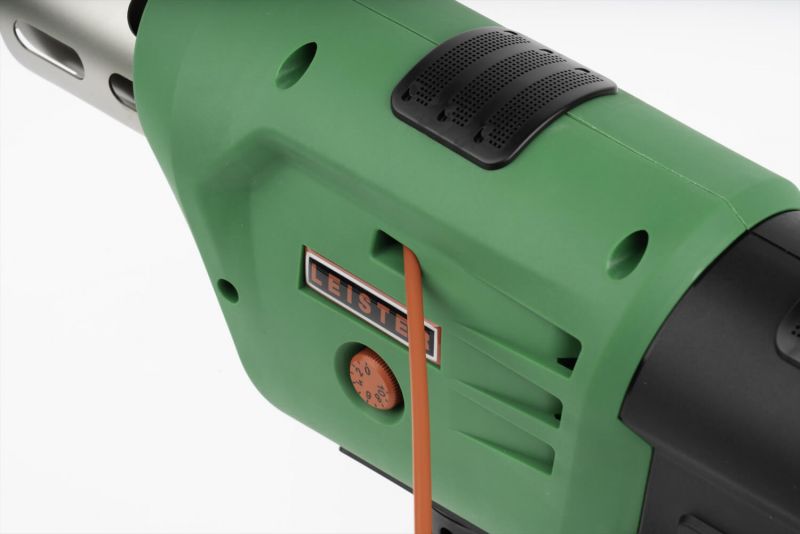

- Double-sided wire intake: For more flexibility when welding

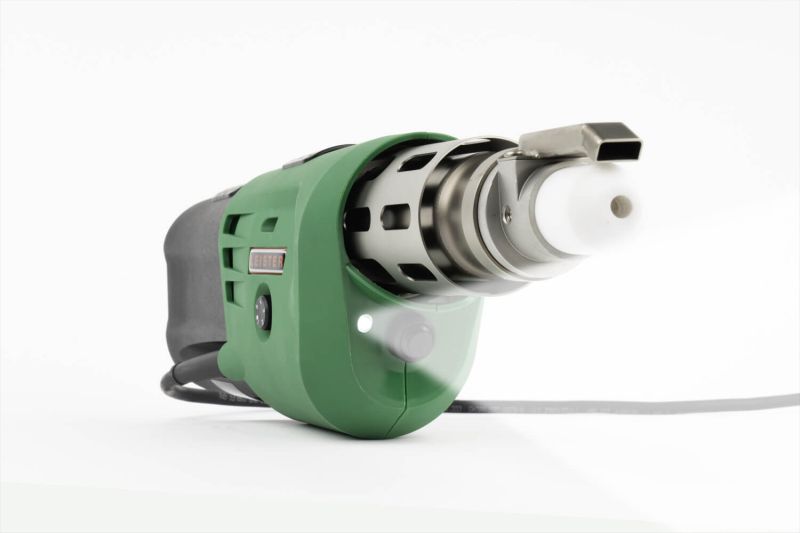

- LED light: To illuminate the welding area
- Controlled: Automatically controlled air temperature

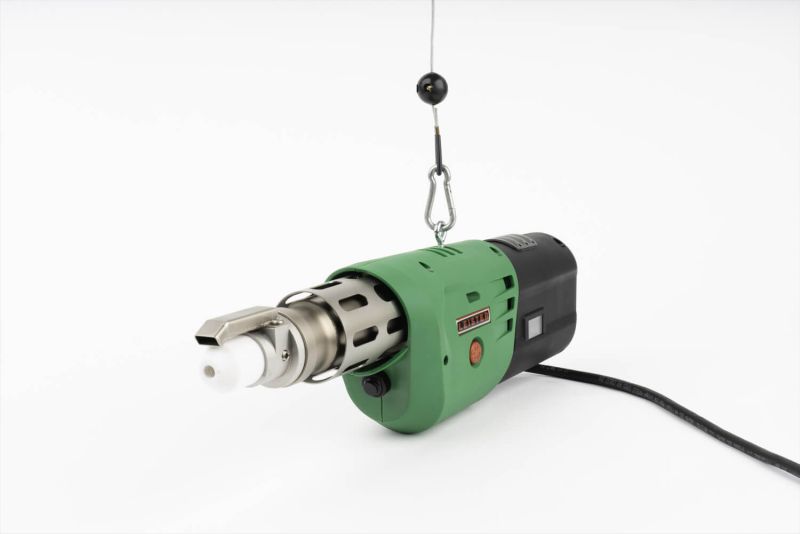

- Suspension device: Effortlessly weld longer by hanging up the device
- Compact and slimline: Thanks to integrated air guide
- Handle: Can be mounted for one-handed welding
- Welds PE / PP
- No fuss Plug-in & Weld functionality
- Power 1.45kW
- Voltage 120V
- Weight 3.4 kg
- Wide range of welding shoes available
Specification
Ultra compact and easy to handle with a maximum output rate of 0.83 kg/h. Robust design (suitable for construction site use). Rod shaped design for increased maneuverability in small spaces with double-sided wire intake for more flexibility when welding. The FUSION 1 also comes with an integrated LED light to illuminate the welding area when required.
Technical data: FUSION 1 120V
Voltage V: 120
Power W: 1450
Material: PE / PP
Air temperature: up to 180-350ºC
Plastification temperature: up to 300ºC
Welding rod: 3mm / 4mm (Dia)
Output PE kg/h : 3mm Rod: PE 0.260 – 0.480 (120v)
3mm Rod: PP 0.330 – 0.540 (120v)
4mm Rod: PE 0.330 –0.800 (120v)
4mm Rod: PP 0.350 –0.830 (120v)
Size (L × W × H) mm: 436 × 92 × 236
Weight: 3.4 kg (without cable)

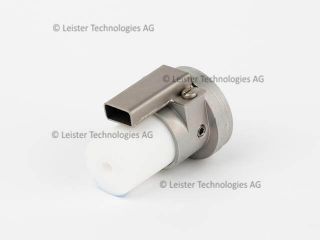

Included with purchase: FUSION 1 120V, user manual, blank welding shoe, storage case
Delivery
Standard Next Working Day Delivery
£4.50 +VAT for items up to and including £100 (ex VAT)
£7.50 +VAT for items over £100 (ex VAT)
Next working day applies to orders placed online before 3pm.
LEISTER Machines and Extruders
In order to tailor the correct machine to the correct job, for all LEISTER machines and extruders, we would recommend contacting our experts either online or via +44 (0)1707 331111 to discuss your needs and to place your order. For information these items are generally available as a next day delivery, if ordered before 3pm, with delivery charged at £11.95 +VAT
