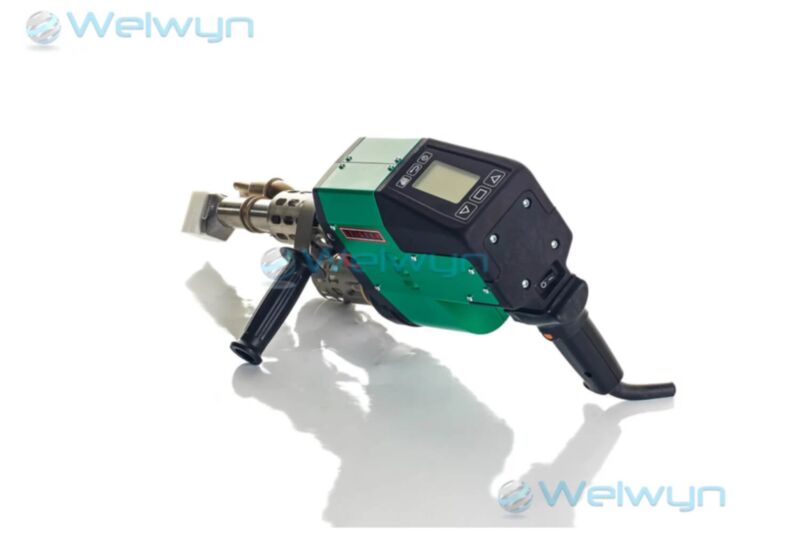

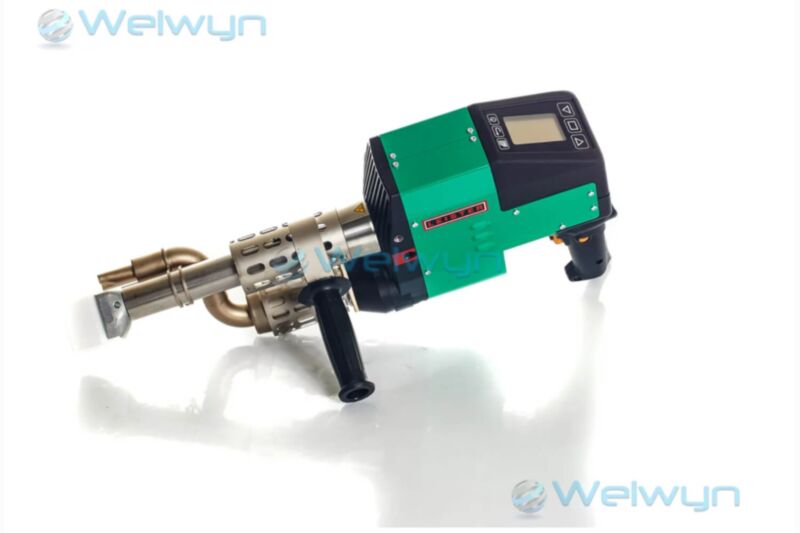

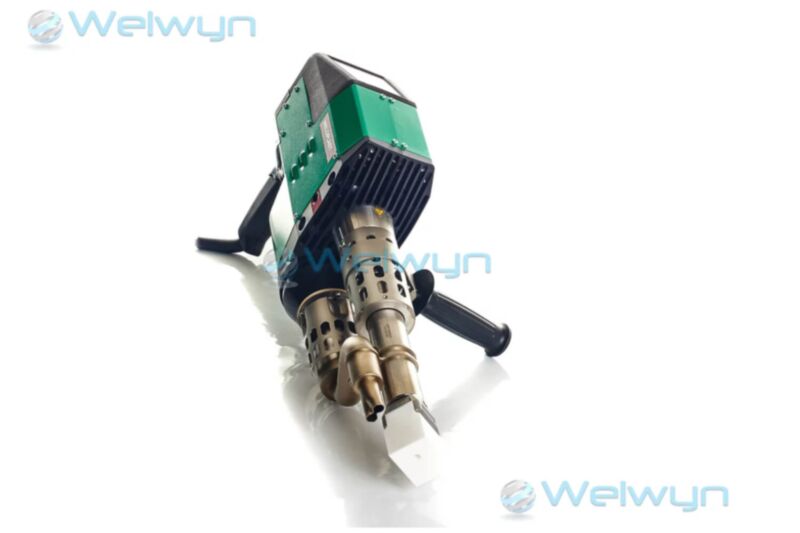

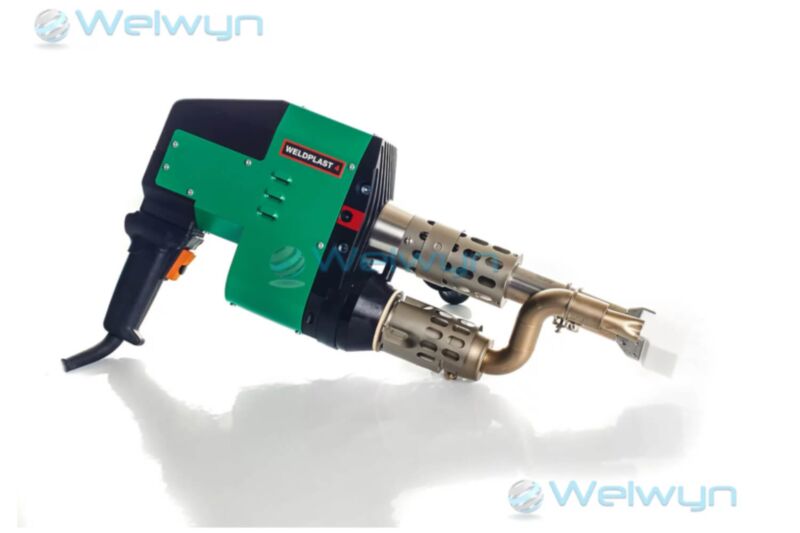

Leister WELDPLAST S4 230v 3-4mm/4-5mm for Plastic Welding

Product Code:
WELDPLASTS4 PW

The WELDPLAST S4 230v is the first extruder of its kind with brushless, maintenance-free motor for generating preheated air. Output of up to 4 kg/h is made possible thanks to the S4's powerful drive system.

Estimated Delivery: Next Working Day (order before 3pm)

Description

Digitally Regulated 4kg/h Plastic Extrusion Welder 230v

Compact, economic worm extruder with brushless motor for pre-heated air. Used in process equipment manufacture and civil engineering. The WELDPLAST S4 is the first extruder of its kind with brushless, maintenance-free motor for generating preheated air. Output of up to 4 kg/h is made possible thanks to the S4's powerful drive system.

  • Compact housing design to reduce noise and guarantees optimal cooling for electronics and drive
  • Welds PP and PE
  • Heavy Duty Extruder with a welding speed of up to 4kg/h
  • Welding rod diameter 3-4 or 4-5 mm
  • Dual-sided, twist-free wire intake
  • Maintenance-free hot-air blower
  • Multifunction display
  • Material Preheater
  • Menu with function programs
  • Weighs 8.7kg
  • Power 3.68kW
  • 230v

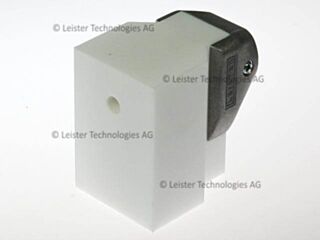

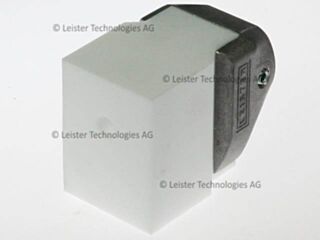

  • Comes with blank welding shoe

Specification

Screw extruder with barrel heater and integrated hot air blower (brushless) for preheating welding seams. Compact housing design reduces noise and guarantees optimal cooling for the electronics and drive. Terminal with illuminated graphic display and operating keys suitable for construction sites. Microprocessor to regulate the welding process and to monitor the tool.  Menu with function programs. Air flow up to 450 l/min. Twist-free welding rod feed for 3mm-4mm or 4mm-5mm rod. Simple rotatable handle. Complies with DVS standards.

Technical data:-

  • Voltage V:  230
  • Power W: 3680
  • Material: PE / PP
  • Welding rod: 3 - 4 and 4 - 5 mm (Dia)
  • Output kg/h: 1.5 - 4.0
  • Size (L × W × H) mm: 560 × 110 × 300
  • Weight: 8.7 kg

Included with purchase: WELDPLAST S4, user manual, 3 pre-heating nozzles (large, medium and small), storage case
