Leister PENWELD 305-S 230V 173.372 Screw-fit Plastic Welding Gun

SKU:
173.372

The Leister PENWELD 305-S 230V M14 Screw-fit 173.372 has a compact, ergonomic design for welding in tight spaces and ideal for hot gas draw welding of detailed plastic tanks, air washers, pump wells etc.  For use with external air.

Estimated Delivery: Next Working Day (order before 3pm)
£498.00 £415.00

Description

The PENWELD 305-S 230V 173.372 from Leister

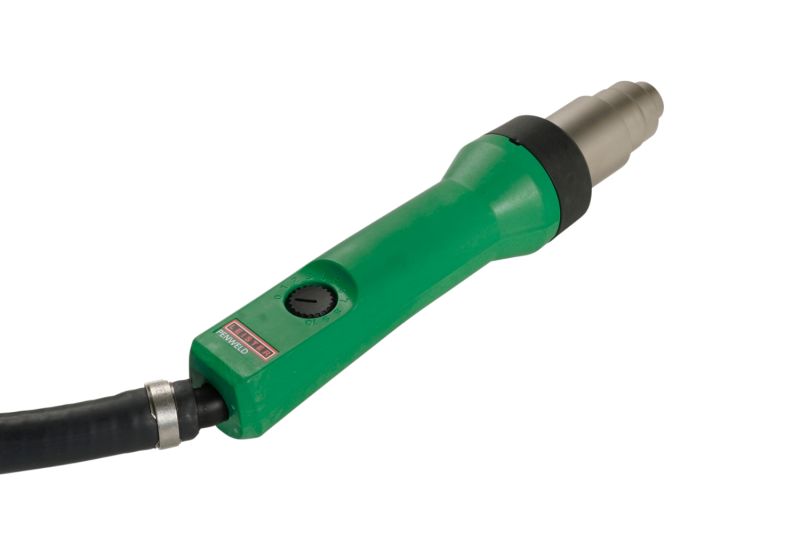

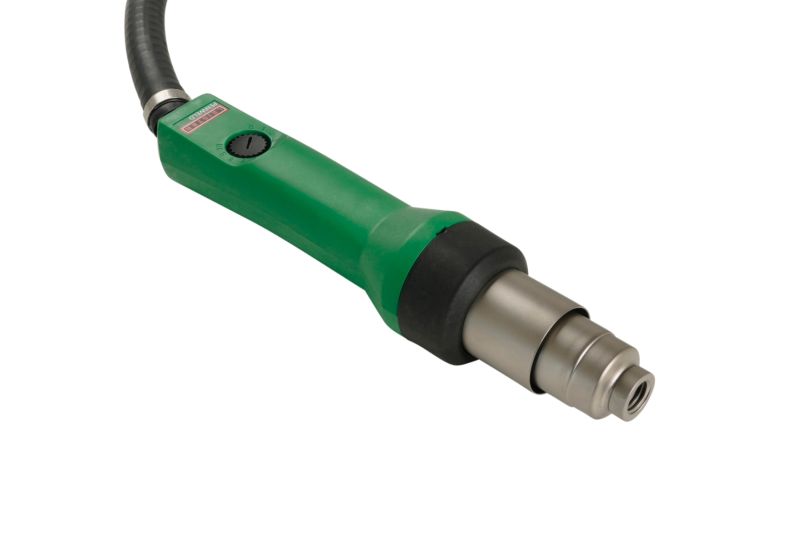

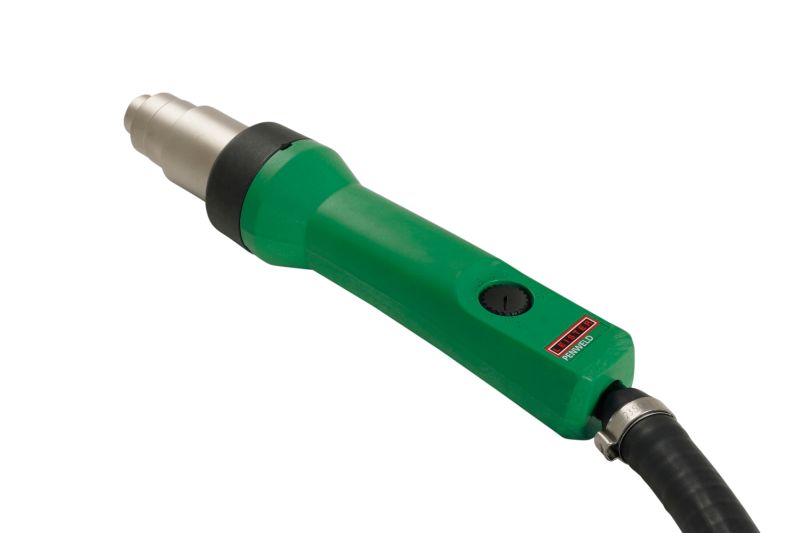

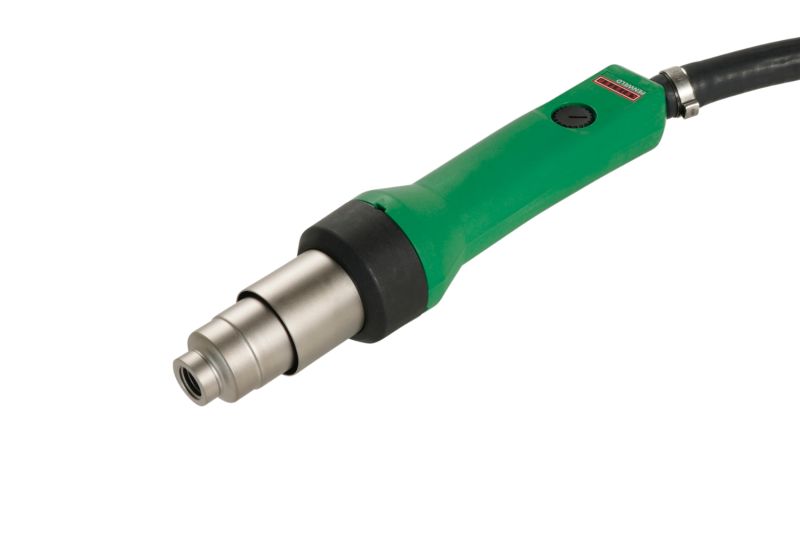

Updated design to produce an excellent ergonomic hand grip for ease of use over long periods of time. Slim, lightweight and with a 310° air hose rotation, the PENWELD 305-S M14 Screw-fit model is particularly well suited to harsh environments and tight spaces. The high quality air hose incorporates the power lead and is robust enough for industrial environments.

The temperature setting knob in the handle is recessed, preventing the settings from being unintentionally altered during operation, increasing process safety and quality of work. As with all Leister tools, the electronic components of the PENWELD 305-S are carefully encased and protected against moisture and contamination.

All PENWELD device variations have a particularly powerful and durable heating element, capable of handling all aspects of hot air draw welding of detailed plastic tanks, air washers, pump wells etc.

Ideal for use with an external air supply such as the Leister ROBUST or AIRSTREAM 100 Industrial Process Blower or compressed supply.

Key Features

  • Voltage: 230V
  • Frequency: 50/60 Hz
  • Power: 1000W
  • Temperature: 60 - 450°C
  • Temperature setting stepless: Yes
  • Air hose length: 3.0m
  • Display: No
  • Outdoor use: Yes
  • Compatible with a wide range of M14 screw fit nozzles
  • Length: 254.0mm
  • Device diameter: 54mm
  • Handle diameter: 37mm
  • Requires external air (e.g. AIRSTREAM 100, ROBUST blower)

Specification

Leister PENWELD 305-S 230V 173.372 Screw-fit Plastic Welding Gun

Technical data:-

  • Voltage: 230V
  • Power: 1000W
  • Frequency: 50/60 Hz
  • Temperature: 60 – 450 °C
  • Temperature setting stepless: Yes
  • Air hose length: 3.0m
  • Display: No
  • Outdoor use: Yes
  • Compatible with a wide range of M14 screw fit nozzles
  • Length: 254.0mm
  • Device diameter: 54mm
  • Handle diameter: 37mm
  • Requires external air (e.g. AIRSTREAM 100, ROBUST blower)
  • Weight: 0.41 kg
  • Approvals: CE , UKCA
  • Protection class: II
  • Country of origin: CH
