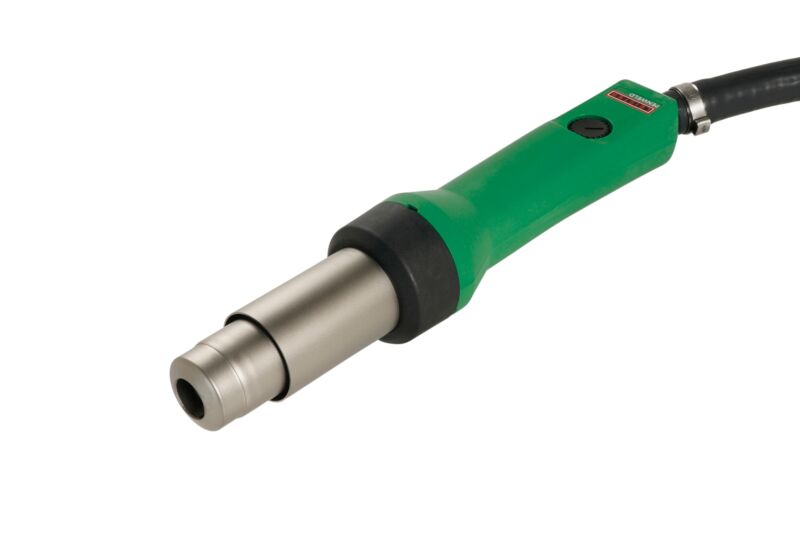

Leister PENWELD 500-S 230V 1550W 173.378 Push-fit Plastic Welding Gun

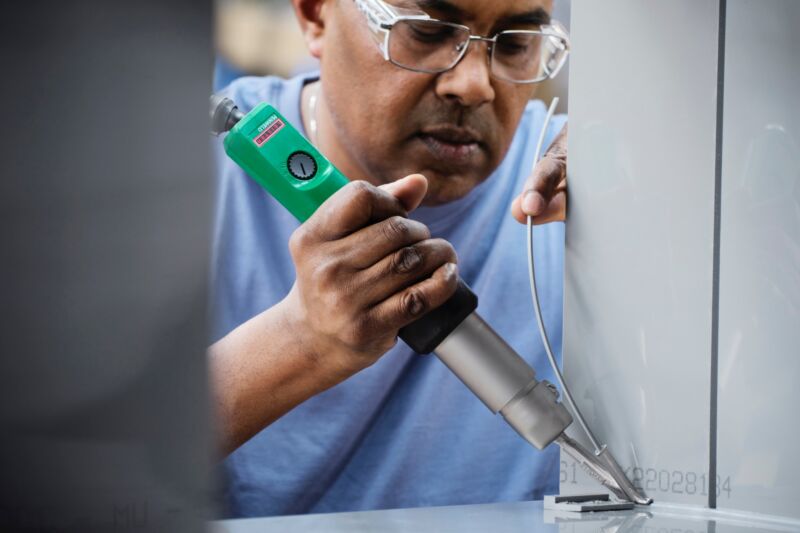

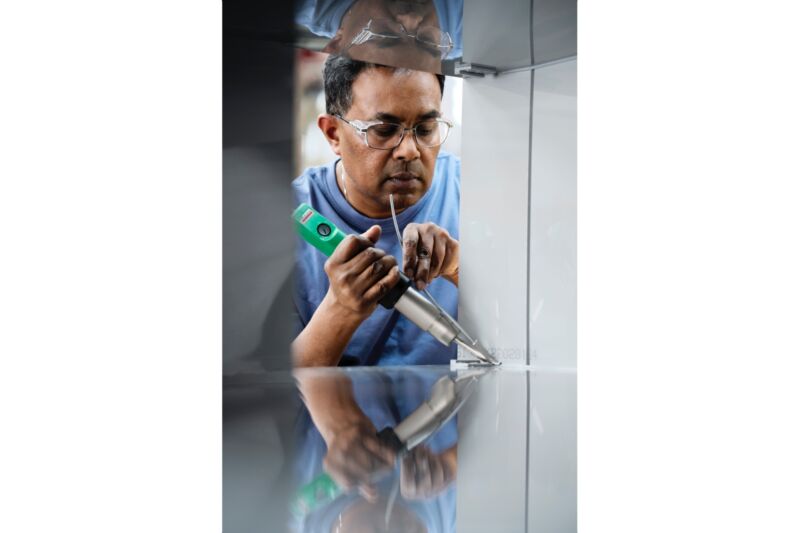

The Leister PENWELD 500-S 230V 1550W Push-fit 173.378 is a fully controllable hot air hand gun with an ergonomic design for welding in tight spaces and ideal for hot gas draw welding of detailed plastic tanks, air washers, pump wells etc. For use with external air.
Description
The PENWELD 500-S 230V 1550W 173.378 from Leister
The PENWELD 500-S standard hot air gun features and updated design, producing an excellent ergonomic hand grip for ease of use over long periods of time. Slim and lightweight, this model like it's digital stable-mate the 500-A, is capable of temperature adjustment from 60-600°C. It comes with a 3 metre light weight air hose with 310° air hose rotation, the PENWELD 500-S push-fit model is particularly well suited to harsh environments and tight spaces. The light weight high quality air hose incorporates the power lead and is robust enough for industrial environments.
Temperature is controlled via a recessed temperature setting knob in the handle which prevents settings from being unintentionally altered during operation. This increases process safety and quality of work.
As with all Leister tools, the electronic components of the PENWELD 500-S are carefully encased and protected against moisture and contamination.
All PENWELD device variations have a particularly powerful and durable heating element, capable of handling all aspects of hot air draw welding of detailed plastic tanks, air washers, pump wells etc.
Ideal for use with an external air supply such as the Leister ROBUST or AIRSTREAM 100 Industrial Process Blower or compressed supply.
Key Features
- Voltage: 230V
- Frequency: 50/60 Hz
- Power: 1550W
- Temperature: 60 - 600°C
- Temperature setting stepless: Yes (digital)
- Air hose length: 3.0m
- Display: No
- Outdoor use: Yes
- Nozzle Connection ø: 31.5mm
- Compatible with a wide range of M14 screw fit nozzles (via adapter)
- Length: 275.0mm
- Device diameter: 54mm
- Handle diameter: 37mm
- Requires external air (e.g. AIRSTREAM 100, ROBUST blower)
Specification
Leister PENWELD 500-S 230V 1550W 173.378 Push-fit Plastic Welding Gun
Technical data:-
- Voltage: 230V
- Power: 1550W
- Frequency: 50/60 Hz
- Temperature: 60 – 600 °C
- Temperature setting stepless: Yes
- Air hose length: 3.0m
- Display: No
- Outdoor use: Yes
- Compatible with a wide range of push fit nozzles & M14 nozzles via adapter
- Nozzle Connection ø: 31.5mm
- Length: 275.0mm
- Device diameter: 54mm
- Handle diameter: 37mm
- Requires external air (e.g. AIRSTREAM 100, ROBUST blower)
- Weight: 0.48 kg
- Approvals: CE , UKCA
- Protection class: II
- Country of origin: CH
