Leister WELDPLAST S1 230v for Plastic Welding & Fabrication 148.396

SKU:
148.396/L0

The WELDPLAST S1 230V is Leister's lightest and most versatile digital plastic welding extruder and an excellent choice for a production environment. With output up to 0.8kg/hour (1.15kg/h for PVC).

Estimated Delivery: Next Working Day (order before 3pm)
£4,783.15 £3,985.96

Description

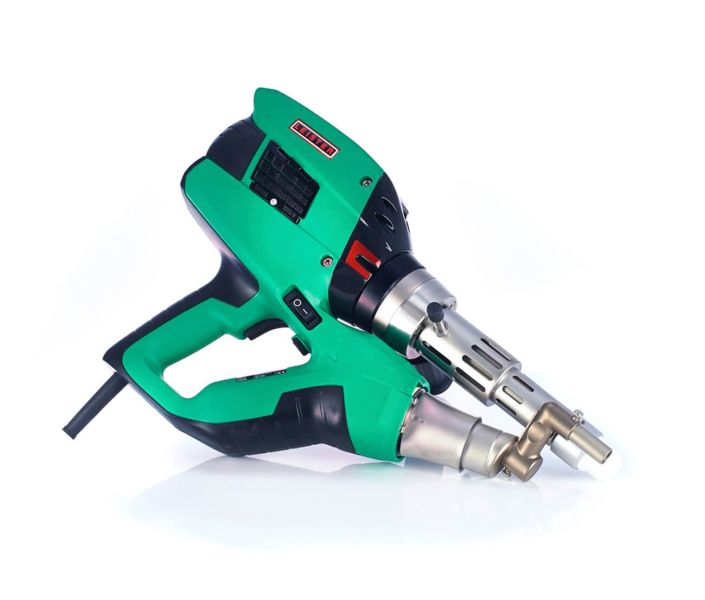

Leister WELDPLAST S1 230V Compact Digital Plastic Welding Extruder

The LEISTER WELDPLAST S1 230v digital extruder is one of the most versatile plastic welding extruders for plastic fabrication in a production environment on the market. It's a compact tool at only 435mm long, and weighs only 4.7kg.

It's also the lightest digital extruder in Leister's stable, only beaten by the Fusion 1 - which is 1.3kg lighter - but is not as feature rich nor as versatile as the WELDPLAST S1.

The WELDPLAST S1 can weld the largest range of material in the entire Leister extruder range: -

HD-PE, LD-PE, PP, PVC-U, PVC-C, PVDF, ECTFE and PA

and has integrated welding profiles built in for HD-PE, PP, PVC-U, PVC-C and PVDF plus 10 free profile storage spaces for specific custom settings.

It can handle 3mm and 4mm welding rod, with output up to 0.8kg/h (1.15kg/h for PVC) - all of this in a footprint of 435 x 91 x 264mm.

This compact size and well balanced design means it can comfortably be used with one hand and, with it's built in hanging point, means it is simple and easy to use without causing fatigue, especially in fabrication tasks that require work in small and dark spaces.

After two years in development the Weldplast S1 has shed a significant 1.1kg in weight lighter than the larger S2, and is well balanced by the virtue of the centralised hand grip. For working in tight corners and for lighting up darker areas the S1 introduces an LED lighting system at the front of the extruder.

The WELDPLAST S1 230V ensures reproducible results and efficiency enabling the operator to set and control welding parameters for a diversity of different materials including PE, PP, PVC, PA and PVDF, providing variable and adjustable controls of air temperature, plasticizing temperature, drive output and blower speeds independently of each other.



Key Features:-

  • Voltage 230V
  • Power 1600W
  • Max. Air temperature 360°C
  • Max. Plasticizing temperature 260°C
  • Filler rod mm Ø 3 / Ø 4
  • Material capability - HD-PE, LD-PE, PP, PVC-U, PVC-C, PVDF, ECTFE and PA
  • Size (LxWxH) 435 x 91 x 264mm
  • Weight 4.7kg
  • Integrated LED light & hanging point
  • Digitally adjustable drive output volume, plasticizing temperature, air temperature and air volume
  • Predefined welding parameters + 10 free profile storage spaces
  • Optional 45° & 90° angled adapters make difficult welds easy





Specification

Leister WELDPLAST S1 230V for Plastic Welding & Fabrication 148.396

Technical Data: Leister Weldplast S1 120v

  • Voltage V:  230
  • Power W: 1600
  • Material: HD-PE, LD-PE, PP, PVC-U, PVC-C, ECTFE, PVDF, PA
  • Welding rod: 3 - 4 mm (Dia)
  • Output kg/h: 0.2 - 0.8 (PVC up to 1.15kg/h)
  • Size (L × W × H) mm: 435 × 91 × 264
  • Integrated welding profiles: HD-PE, PP, PVC-U, PVC-C, PVDF plus 10 free profile storage spaces
  • Weight kg: 4.7

Included with purchase: WELDPLAST S1 230V, user manual, 2 pre-heating nozzles, welding shoe K10, storage case
