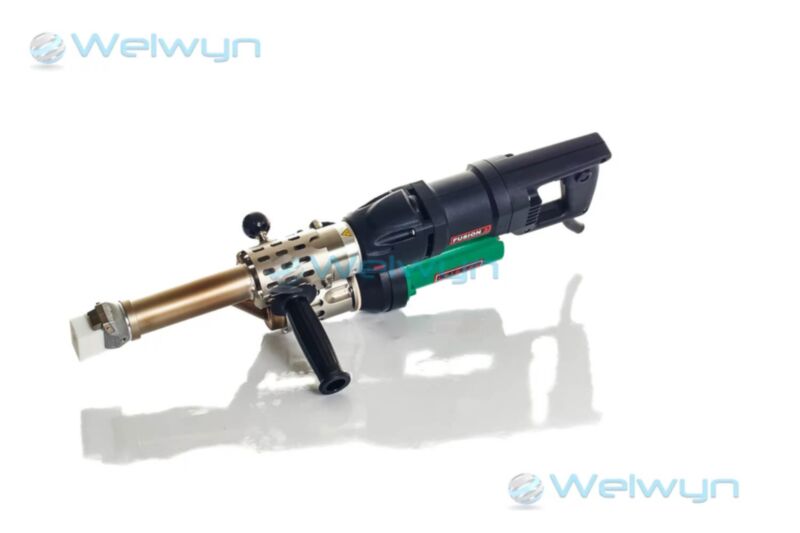

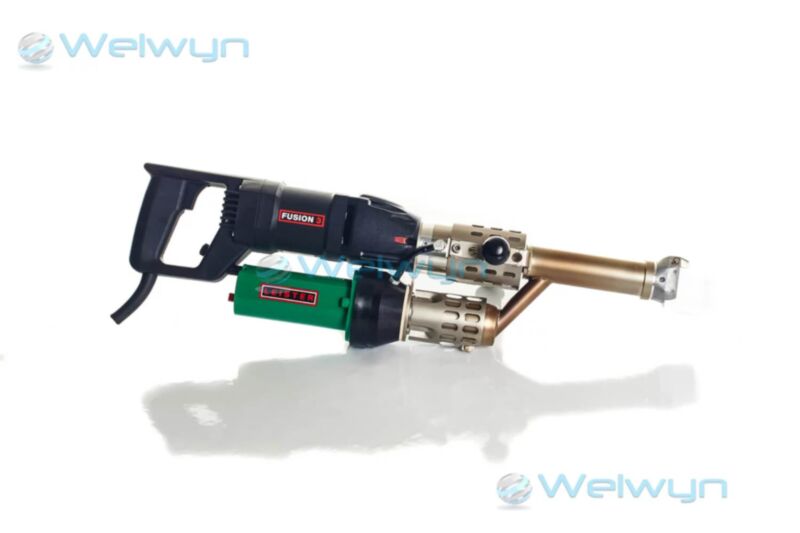

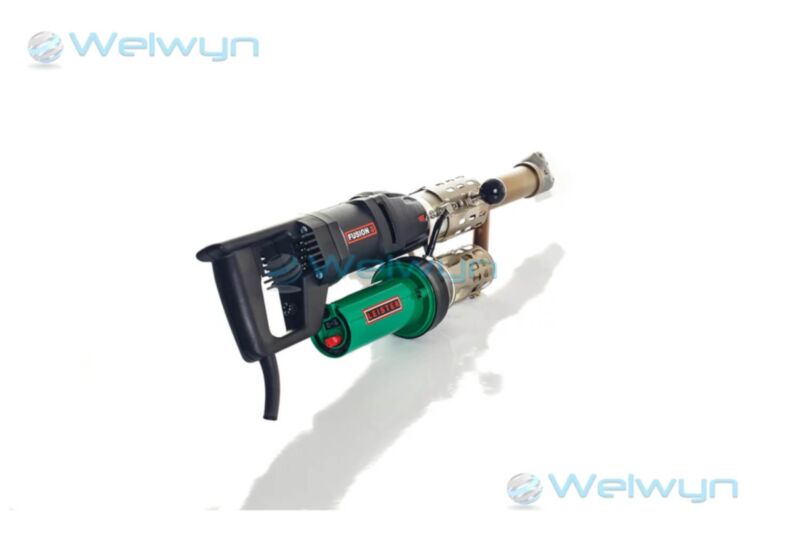

Leister FUSION 3 230V 3-4mm/4-5mm for Geomembrane/Civil Engineering
The FUSION 3 geomembrane extruder is ideal for working on civil engineering sites and construction projects where materials are on the ground, saving the operator having to bend down to weld.
Description
The FUSION 3 Geomembrane Extruder is Leister's 1.8-3.6kg/h 'Plug-in & Weld' Extrusion Gun for Civil Engineering
The FUSION 3 geomembrane extruder is ideal for working on civil engineering sites and construction projects where materials are on the ground, saving the operator having to bend down to weld. It's 'no nonsense' plug-in and weld capability means you will get the job done in tough environments at speeds of up to 3.6kg/h.
Key Features
- High-quality welding performance
- Compact and handy
- Welds PE / PP
- Welding Rod Capacity 3-4mm or 4-5mm
- Motor start-up protection prevents cold start
- Simple operation
- Dual-sided twist-free wire intake
- 360º rotating welding shoe
- No fuss Plug-in & Weld functionality
- Easier on the operator's back!
- Power 3.5kW
- Voltage 230V
- Weight 7.2 kg
- Wide range of welding shoes available
Specification
Easy to handle with a maximum output rate of 3.6 kg/h. Slim and long design (ideal for landfill site use and other civil engineering project work) with a maximum output rate of 3.5 kg/h. Robust design (suitable for construction site use). Stepless adjustment of preheating temperature and output quantity. Output regulation during welding possible. Motor starting protection protects the device against cold-starts. 360° rotatable welding shoe, handle can be mounted in two positions (L or R). Twist-free rod feed
Technical data: FUSION 3 Geomembrane extruder
- Voltage V: 230
- Power W: 3500
- Material: PE / PP
- Welding rod: 3-4 or 4-5 mm (Dia)
- Output PE kg/h (3-4mm Dia version): 2.0 - 2.5 (3mm) / 2.7 - 3.6 (4mm)
- Output PP kg/h (3-4mm Dia version): 1.8 - 2.3 (3mm) / 2.5 - 3.4 (4mm)
- Size (L × W × H) mm: 670 × 90 × 180
- Weight: 7.2 kg
Included with purchase: FUSION 3 230V 3-4mm, user manual, blank welding shoe, storage case
